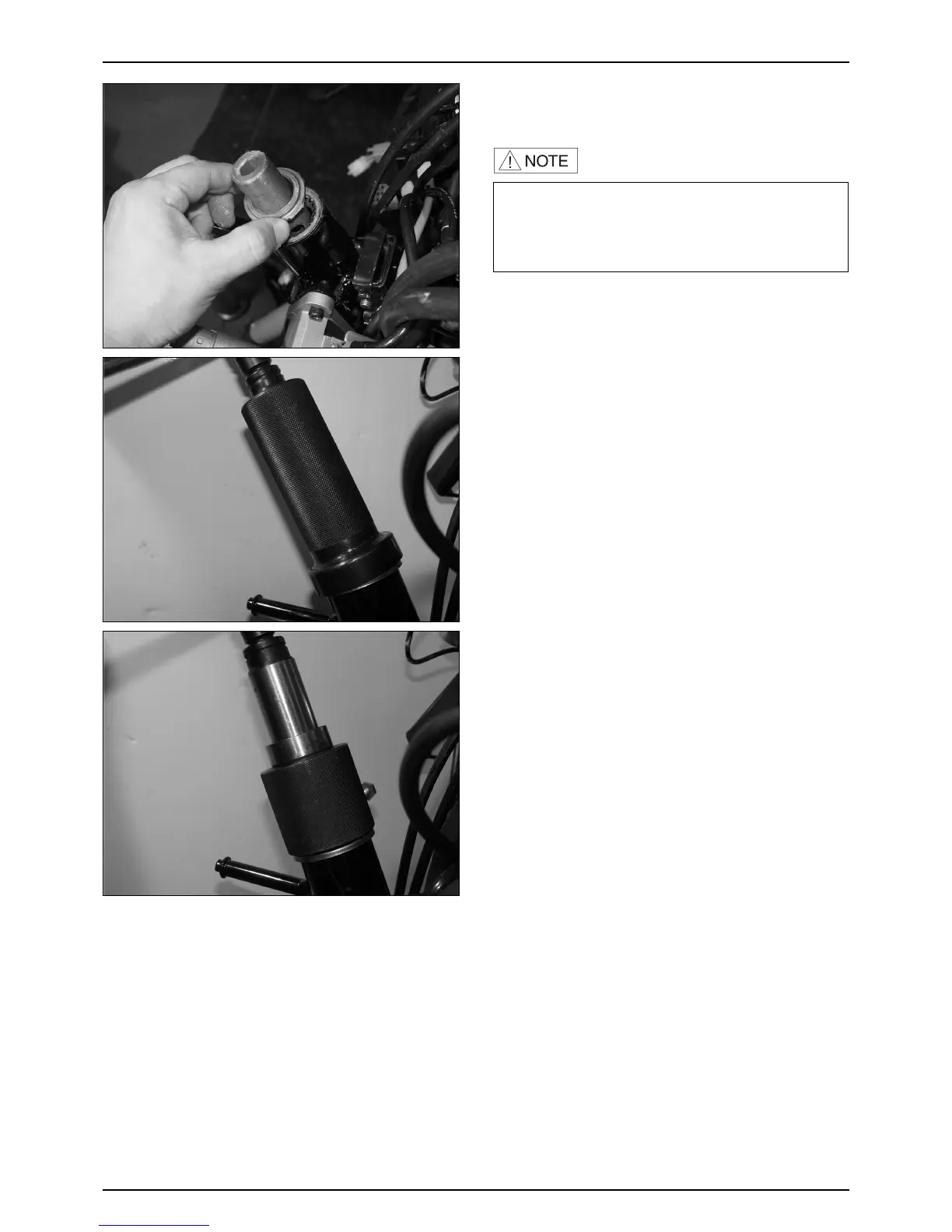

● Remove the steering top ball race from the head pipe.
● Remove the steering bottom race.
INSTALLATION
● Install the steering head dust seal washer and dust seal
onto the steering stem.
● Press in the steering bottom cone race using the
steering stem driver.
● Install the under ball ass’y into the steering stem.
TOOL : STEERING STEM DRIVER
● Install the steering stem into the head pipe.
● Install the steering upper ball ass’y into the steering
stem.
● Install the top cone race and steering top thread onto
the steering head.
● Tighten the top thread to specified torque, then loosen
the top thread 1/8 turn
TORQUE VALUE : 0.15~0.25kgf
·
m
● Recheck that the steering stem moves smoothly
without play or binding.
● Tighten the steering stem lock nut temporarily.
TOOLS : STEERING STEM LOCK NUT SOCKET
STEERING STEM SOCKET
● Install the following parts.
- Front fork
- Front wheel
- Inner cover
- Front under cover
- Front cover
- Handle bar
- Handle cover
14-20
FRONT WHEEL/FRONT FORK/STEERING/BRAKE
·Check all of the races and balls for damage or
abnormal wear and replace as necessary.
·If the vehicle has been involved in an accident,
examine the area around the steering head for crack.
