DAELIM S2 250

6-12
COOLING SYSTEM
120
16
100
27
80
52
50
154
Temperature(°C)
Resistance(
Ω
)

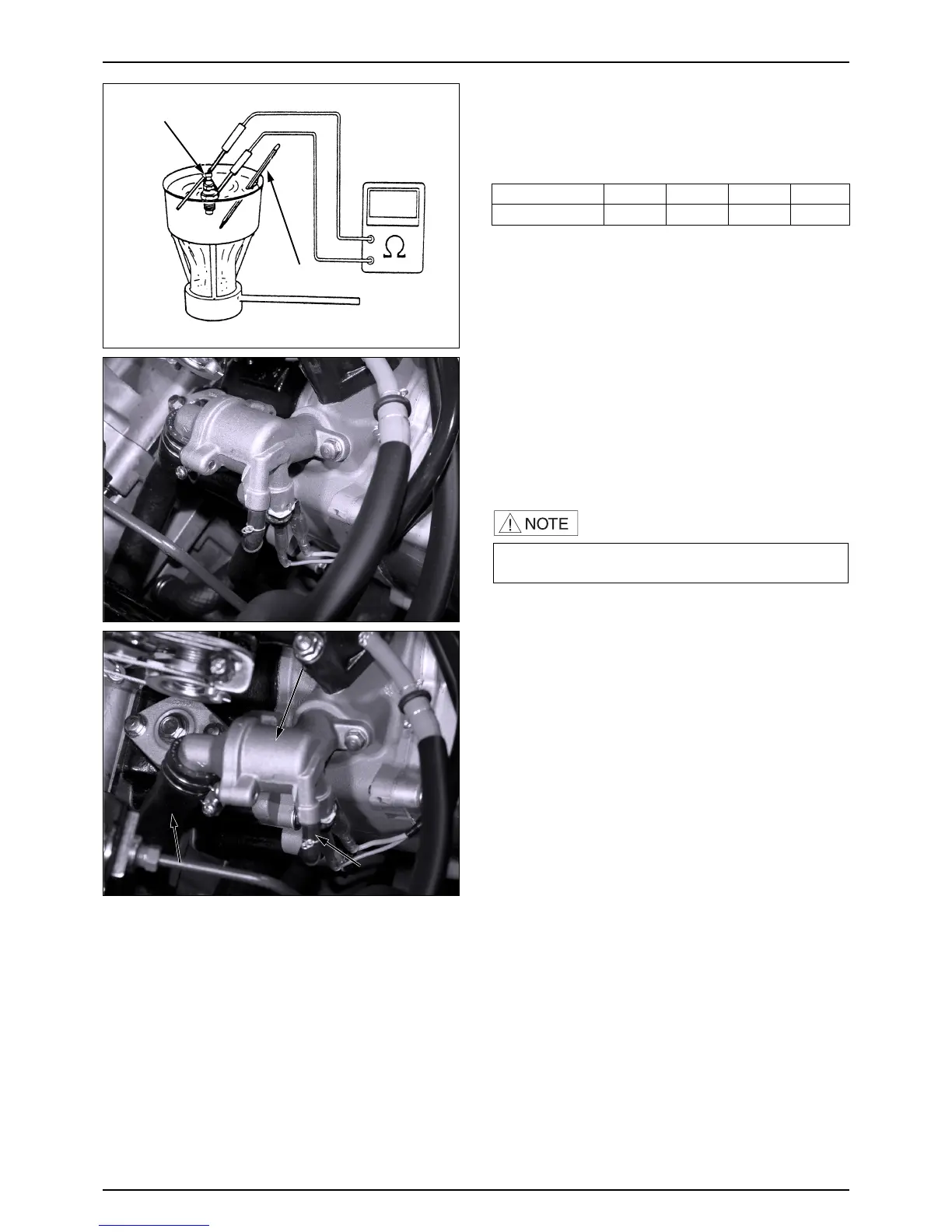

INSPECTION
● Suspen the thermosensor in a pan of water over a
burner and measure the resistance through the sensor
as the water heats up.
INSTALLATION
● Apply a sealant to the themosensor threads and install
it into the thermostat housing.
● Connect the thermosensor wire.
● Fill the radiator with coolant.
● Install the center cover, met-in box and seat.
THERMOSTAT
REMOVAL
● Remove the seat, met-in box and center cover.
● Drain the coolant.
● Disconnect the thermosensor wire from the
thermosensor.
● Disconnect the water hose from the thermostat
housing.
● Disconnect the air vent tube from the thermostat
housing.
● Remove the mounting bolt and the thermostat housing
from the cylinder head.
● Remove the 2 bolts and separate the thermostat
housing halves.
● Remove the thermostat from the thermostat housing.
·Be sure to bleed air from the cooling system.
THERMOSENSOR
THERMOMETER
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
WATER HOSE
WATER HOSE
WATER HOSE
WATER HOSE
WATER HOSE
WATER HOSE
WATER HOSE
WATER HOSE
WATER HOSE
WATER HOSE
WATER HOSE
WATER HOSE
WATER HOSE
WATER HOSE
WATER HOSE
WATER HOSE
WATER HOSE
WATER HOSE AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
AIR VENT TUBE
