7-3
ENGINE REMOVAL/INSTALLATION
ENGINE INSTALLATION

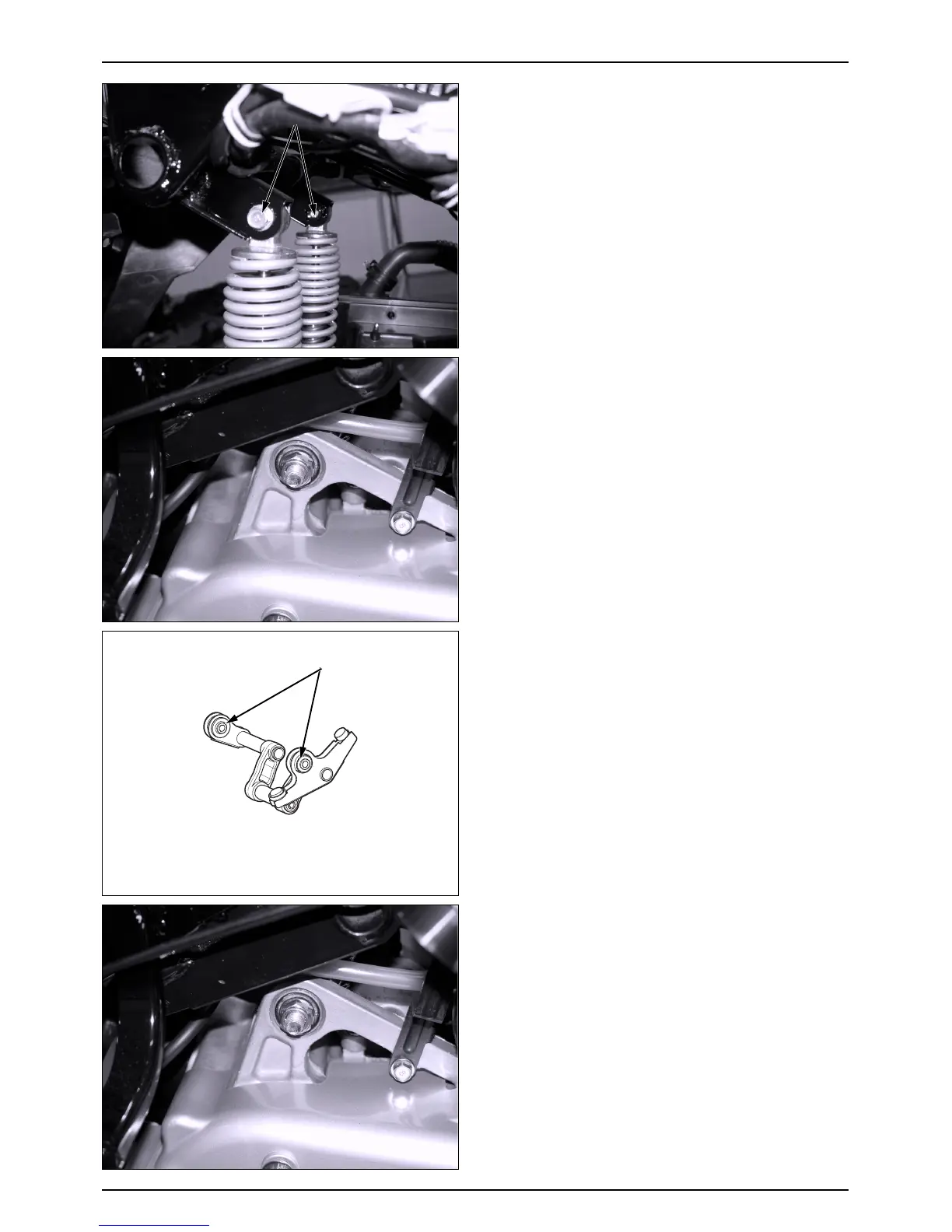

● Tighten the engine mounting nut.
TORQUE VALUE : 4.9kgf
·
m
● Remove the R/L rear shock absorber upper mount
bolts.
● Remove the engine mounting bolt and pull out the
engine.
● Remove the engine hanger bolts to remove the engine
hanger.
● Inspect the engine hanger bushing stopper rubber for
wear or damage.
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
REAR SHOCK ABSORBER UPPER MOUNT BOLTS
BUSHING
