EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
Removal and installation 95XF series
4-14
VF engine
Removing the V-belt of the air-conditioning
compressor drive
1. Slacken the attachment bolt (1) in the
clamping block (2) and slacken the
attachment bolt of t he threaded spindle on
the cylinder block.
2. Slacken the attachment bolts on the
compressor.
3. Turn the lock nuts (3) so that the
compressor is t ilted towards the cylinder
block. Then remove the V-belt.
Installing the V-belt of the air-conditioning
compressor drive
1. Inspect the pulleys for damage, rust and
grease deposits.
2. Fit the new V-belt and adjust the V-belt
tension, see “Inspection and adjustment”.

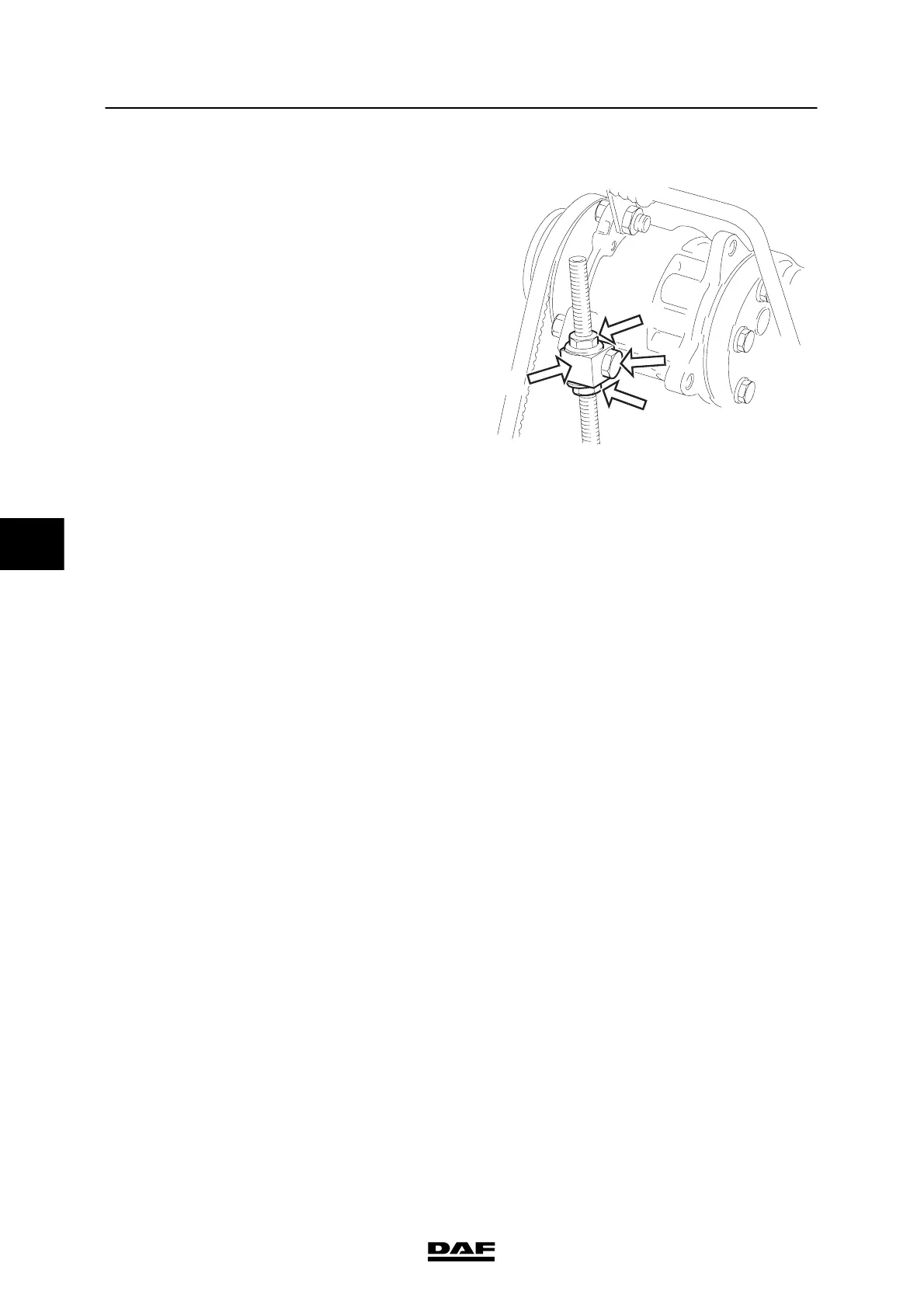

M2127
2
1
3
3
5
200424
