EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
Inspection and adjustment 95XF series
3-18

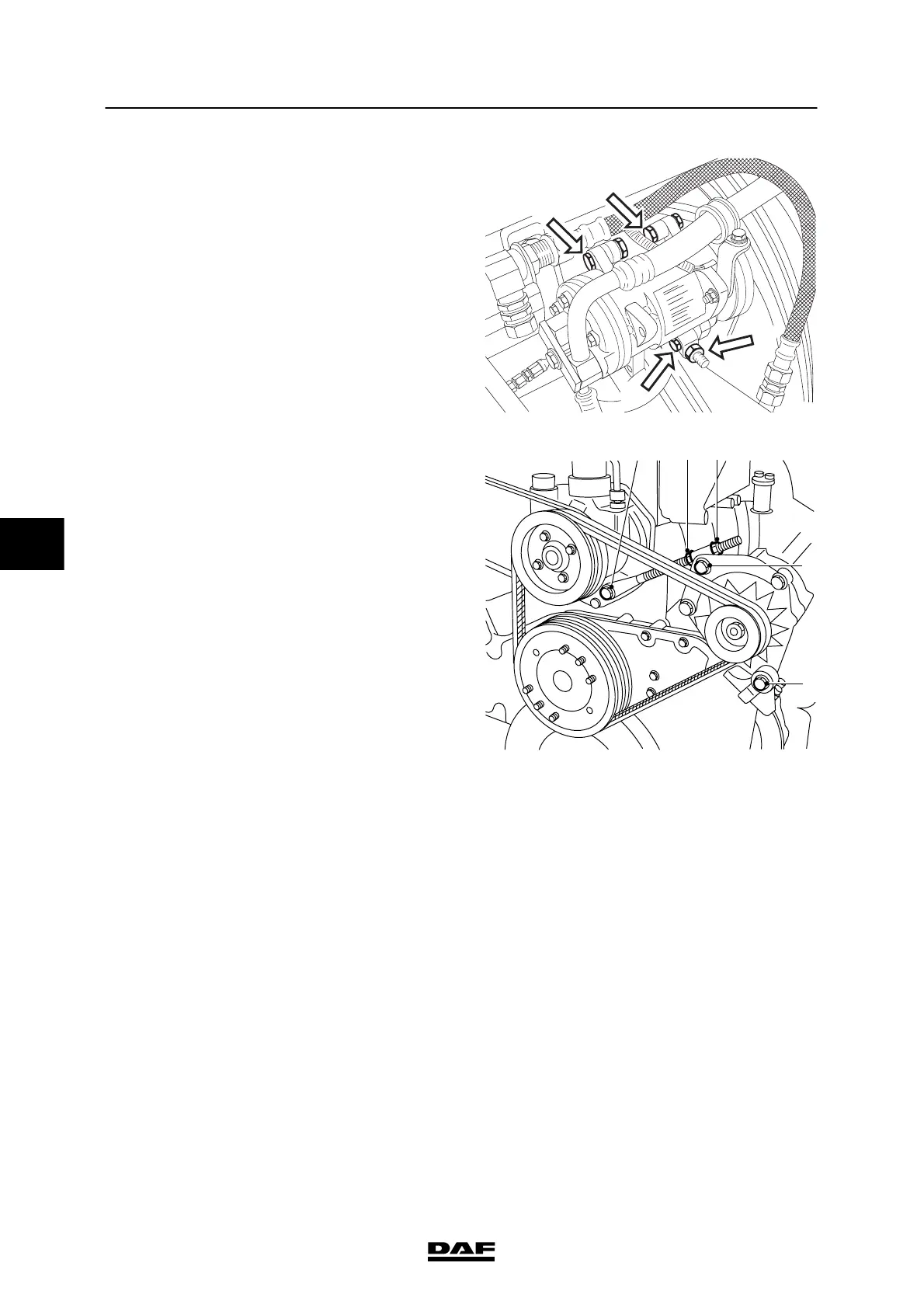

Adjusting the V-belt tension of the air
conditioning compressor drive
1. Loosen the upper attachment bolt (1) on the
compressor.
2. Loosen the lower attachment bolt (2) on the
compressor.
3. Loosen the attachment bolt from the
threaded spindle which is attached to the
coolant pump.
4. Reposition the compressor using the lock
nuts (3) until the correct V-belt tension is
achieved. See “Technical data”.
M2041
3
2
1
1
Adjusting the V-belt tension of the water
pump and alternator drive
1. Loosen the lock nut (4) of the threaded
spindle.
2. Loosen the attachment bolt (3) of the
threaded spindle that is fixed to the water
pump.
3. Slacken the alternator bracket attachment
bolts (1) and (2).
4. Reposition the alternator using the lock nut
(5) until the correct V-belt tension is
achieved. See “Technical data”.
5. Tighten the threaded spindle and alternator
attachment bolts.
6. Tighten the lock nuts of t he threaded
spindle.
M200550
354
2
1
5
200424
