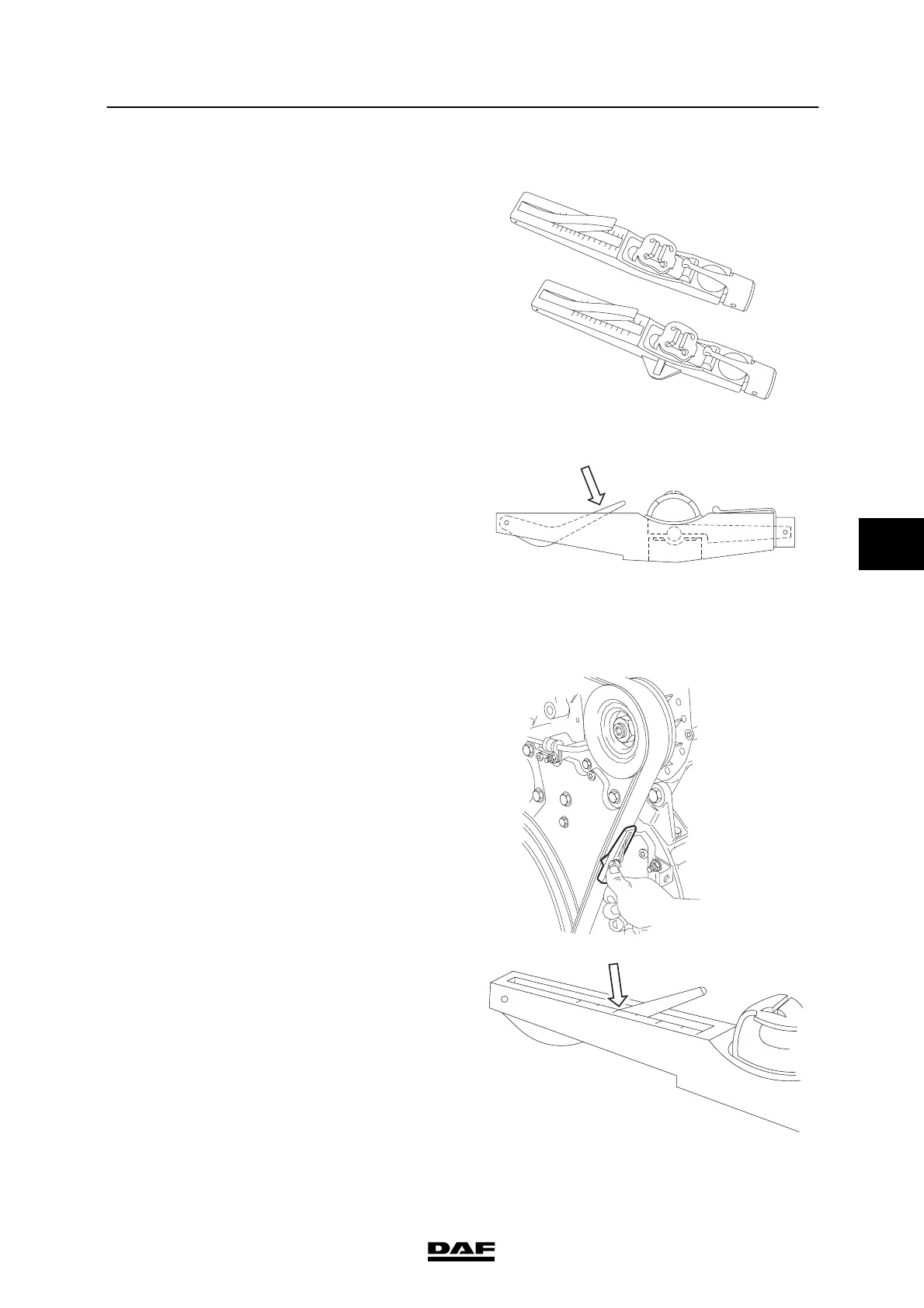

Checking the V-belt tension
1. Check the V-belt tension using special tool
(DAF no. 1240442) for the single V-belts
and using s pecial tool (DAF no. 1240443)
for the multiple V-belts or poly V-belts.
M2079
ABLEU
ABLEU
OPTIBELTI
N.200
600
LBS.50
150
100
200
300
LBS.100
1500
N.500
OPTIBELTII
2. Set the gauge to zero by depressing the
measuring arm (1).
1
M2061
3. Place the belt-tension gauge on the V-belt,
halfway between the two pulleys.
4. Slowly depress the V-belt by means of the
belt tension gauge until a click is heard.
Carefully remove t he gauge. Make sure that
the measuring arm is not moved.
M2091
5. Take the reading as indicated by the
position of the measuring arm in relation to
the scale. Compare this reading with the
recommended pre-tension figure. See
“Technical data”.
M2062
