EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
Inspection and adjustment 95XF series
3-20

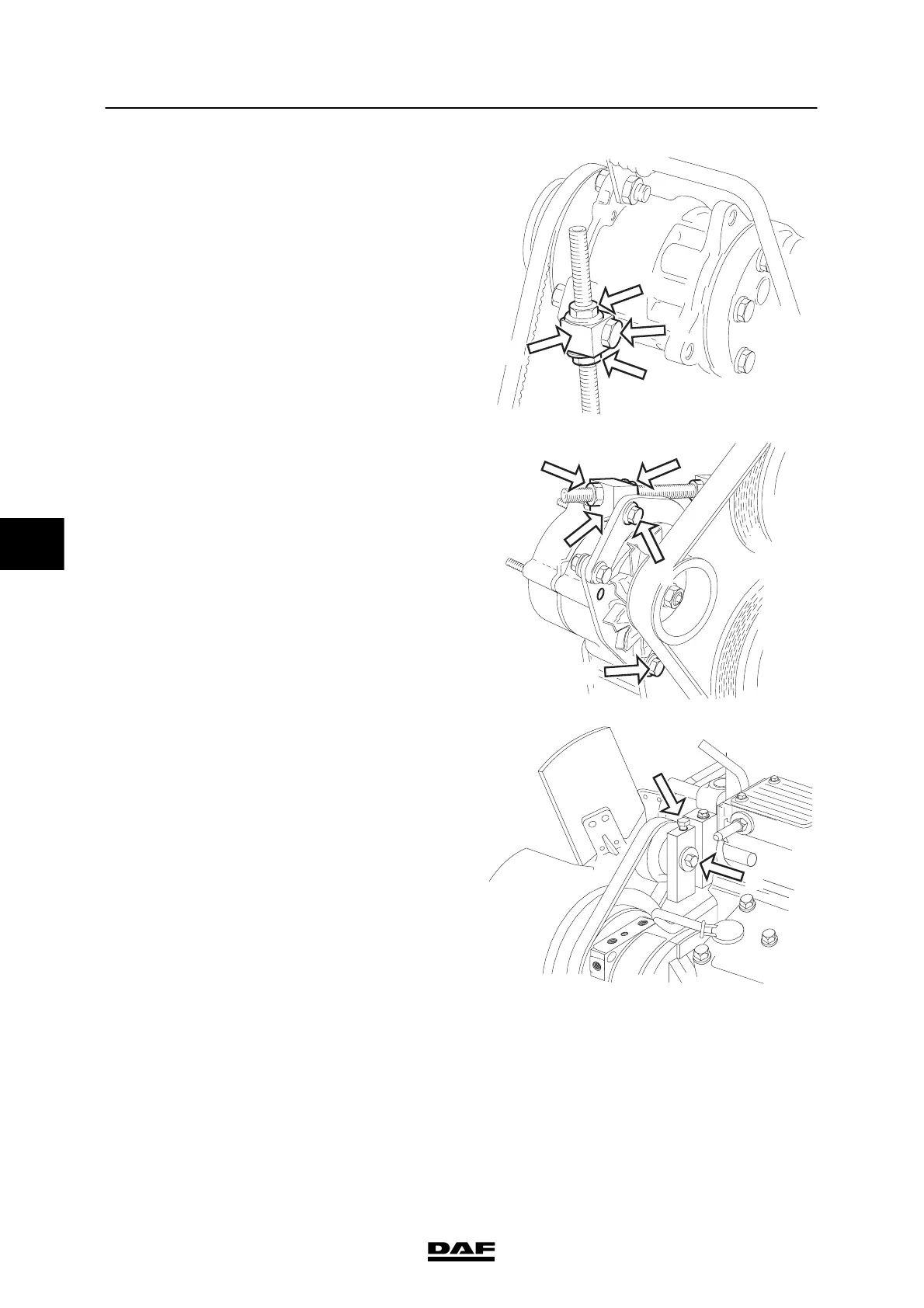

Adjusting the V-belt tension of the air
conditioning compressor drive
1. Slacken the attachment bolt (1) in the
clamping block (2) and slacken the
attachment bolt of t he threaded spindle on
the cylinder block.
2. Slacken the attachment bolts on the
compressor.
3. Reposition the compressor using the lock
nuts (3) until the correct V-belt tension is
achieved. See “Technical data”.
M2127
2
1
3
3
Adjusting the belt (10-rib) tension of fan and
alternator drive
1. Slacken the attachment bolt (1) in the
clamping block (2) and slacken the
attachment bolt of t he threaded spindle on
the cylinder block.
2. Slacken the attachment bolt (3) in the
alternator support.
3. Shift the alternator using the lock nuts (4)
until the correct belt tension is achieved,
see “Technical data”.
M2128
1
2
4 4
3
Adjusting the belt (6-rib) tension of water
pump drive
1. Slacken the central nut (1) of the tensioner.
2. Shift the tensioner using the bolt (2) until the
correct belt tension is achieved, see
“Technical data”.
M2129
2
1
5
 200424
