DAF 95XF - Page 94

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
Inspection and adjustment 95XF series
3-34
7. Depress the brake pedal until pressure
gauge (1) reads 6 bar and read off the
braking pressure of the rear axle on
pressure gauge (2).
8. Compare this value with the data i n the
table attached to the door pillar.
9. The braking pressure can be corrected by
moving t he rubber socket (2) in relation to
the v ertical connecting rod; do not adjust
the length L of the control lever.
10. Also check t hat there is no significant
reduction in output pressure when under
maximum load. This is done by removing
ball joint (3) and moving the lever towards
the maximum load position.

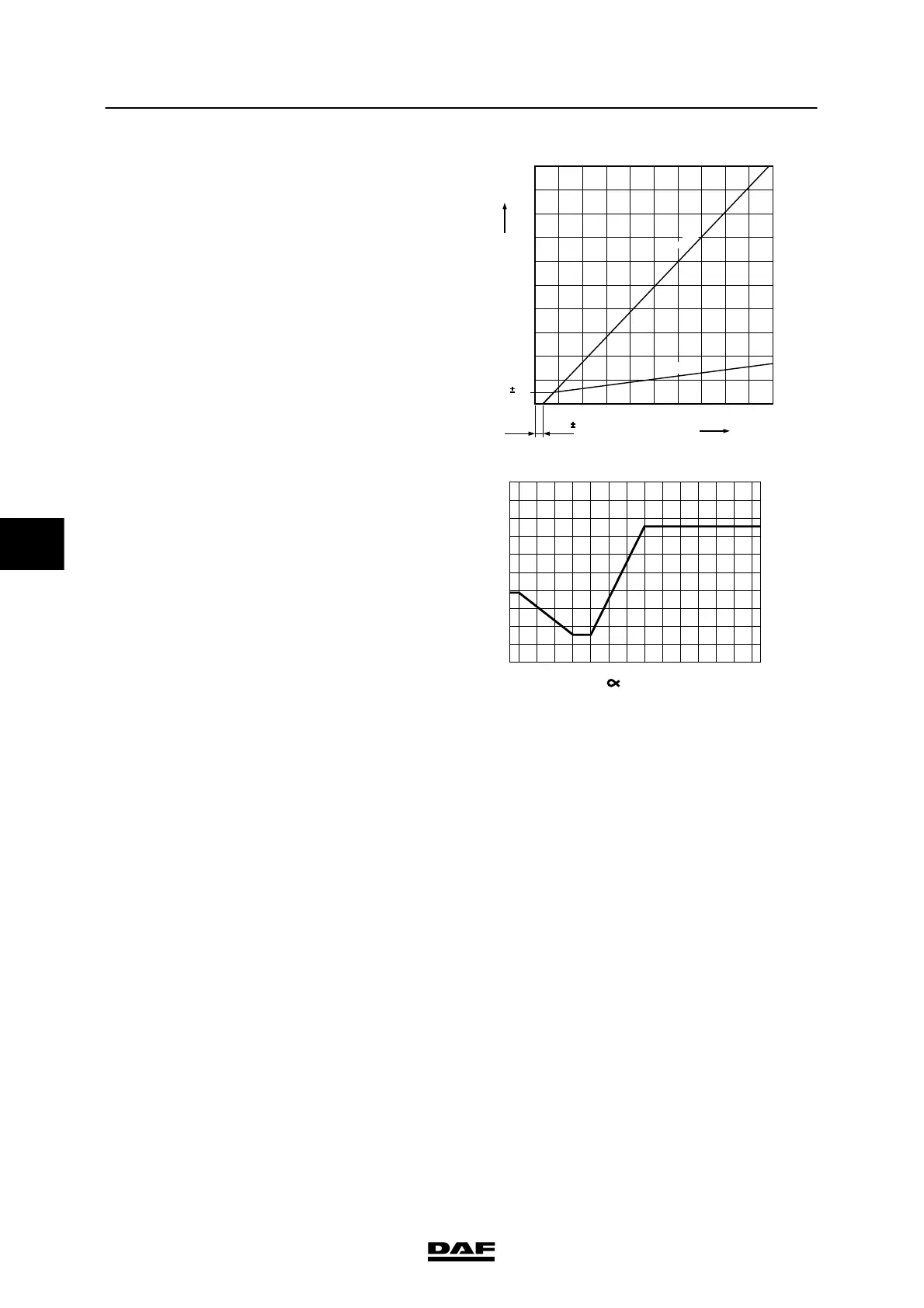

0
1
2
3
4
5
6
7
8
9
10
12345678910
0.5
P 4 (bar)
P
2
(bar)
0.1
0.3
0.2
1:1
1:8
W604027
1
0
2
3
4
5
6
7
8
9
10
0-10-20-30-40-45 10 20 30 40 50 60 70 80 90 95
P4=7,5 bar
P2 (bar)
R 600108
(¡)
5
