User's Manual
140

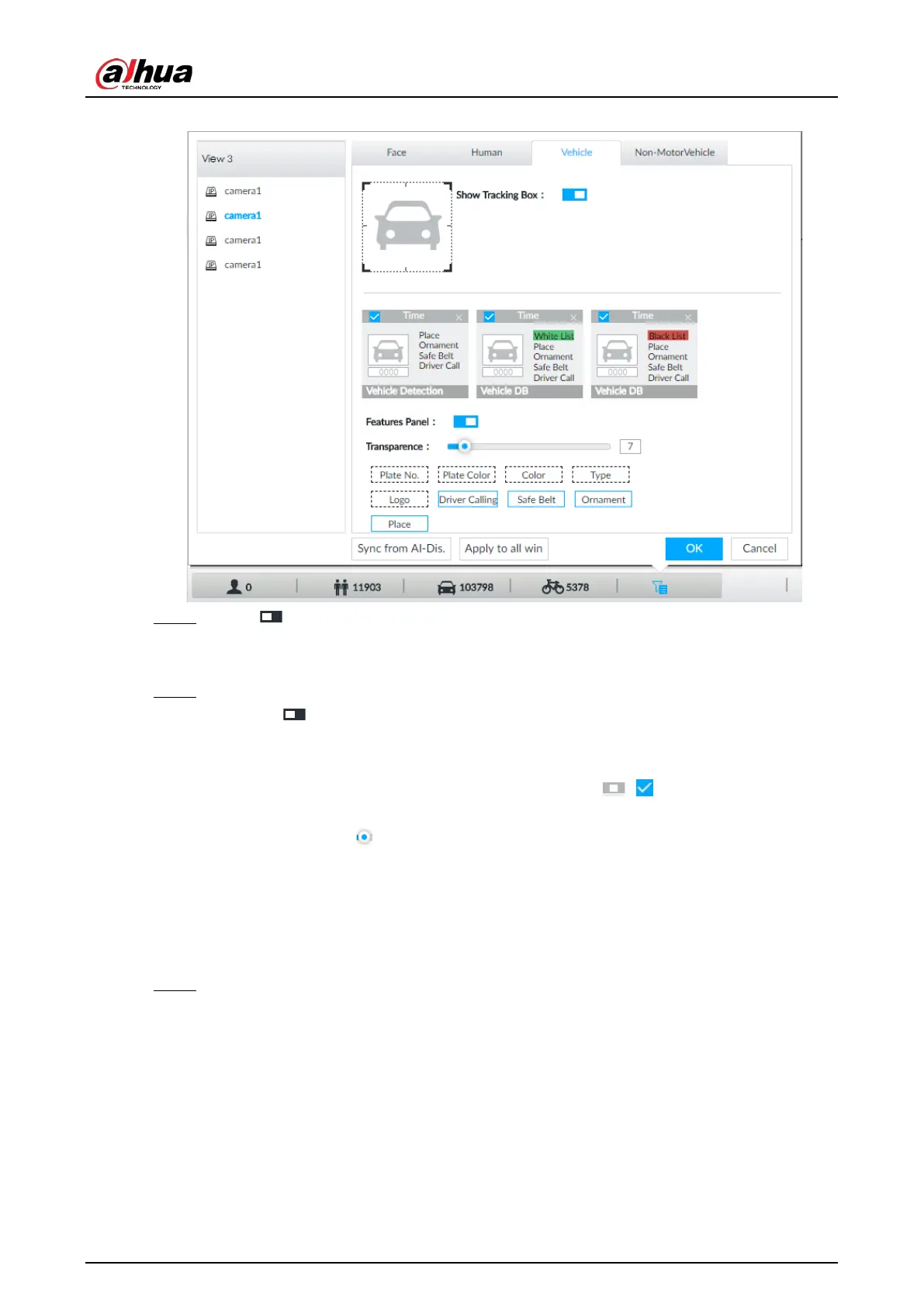

Figure 6-110 Motor vehicle
Step 3 Click next to Show Tracking Box to enable tracking box function.
A tracking box is displayed in the video image when target meeting detection rule is
detected.
Step 4 Set features panel.
1) Click next to Features Panel to enable features panel function.
2) Features panel will be displayed at the right side of video image when target with
selected features is detected.
3) Select the
Vehicle Detection panel type by clicking . means the panel is
selected.
4) (Optional) Drag to adjust the transparency of panel. The higher the value, the more
transparent the panel.
5) (Optional) Select the features to be displayed in the panel.
●
Up to 4 features can be displayed.
●
4 features are selected by default. To select another feature, click the selected
feature to cancel it, and then click the feature to be displayed.
Step 5 Click
OK.
6.7.3.2 Live View
On the LIVE page, select a view, and the video image of the view is displayed.
●
Tracking box is displayed in the video image.
●
Features panel is displayed at the right side of the video image.
