AUDIO OUT Audio output port
10 HDMI port
High definition audio and video signal output port.
The port outputs the uncompressed high definition
video and multi-channel audio data to the
connected display with HDMI port. The two HDMI
ports are different source output.
11 AI module indicator light
Displays AI module status.
●
The yellow light flashes: AI module is running
properly.
●
The yellow light is on: AI module is
malfunctioning.
This function is not available without AI module.

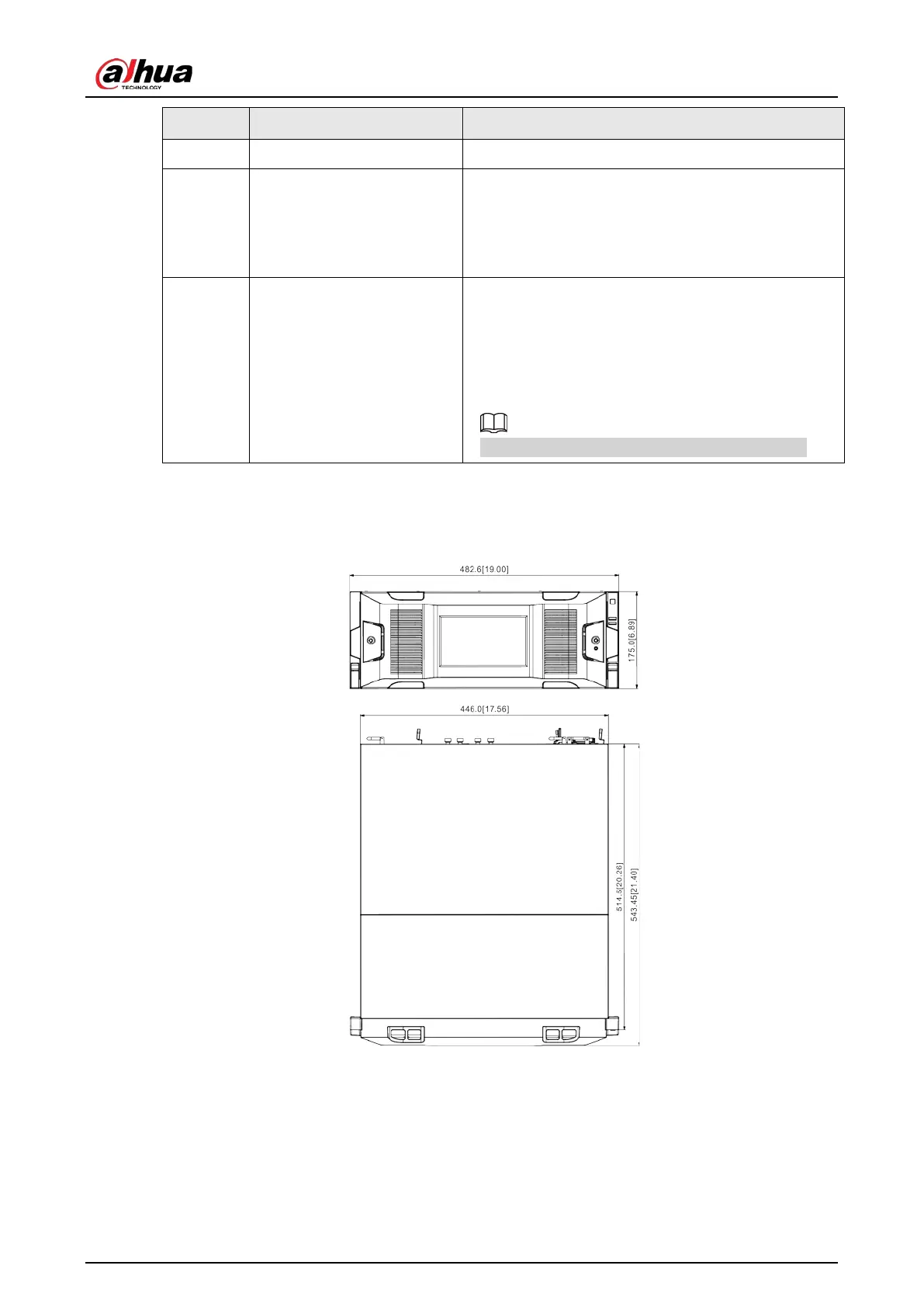

2.4.3 Dimensions
Figure 2-31 Dimensions with LCD (mm [inch])
