Dahua DH-XVR1B08 User Manual

Local Configurations 102

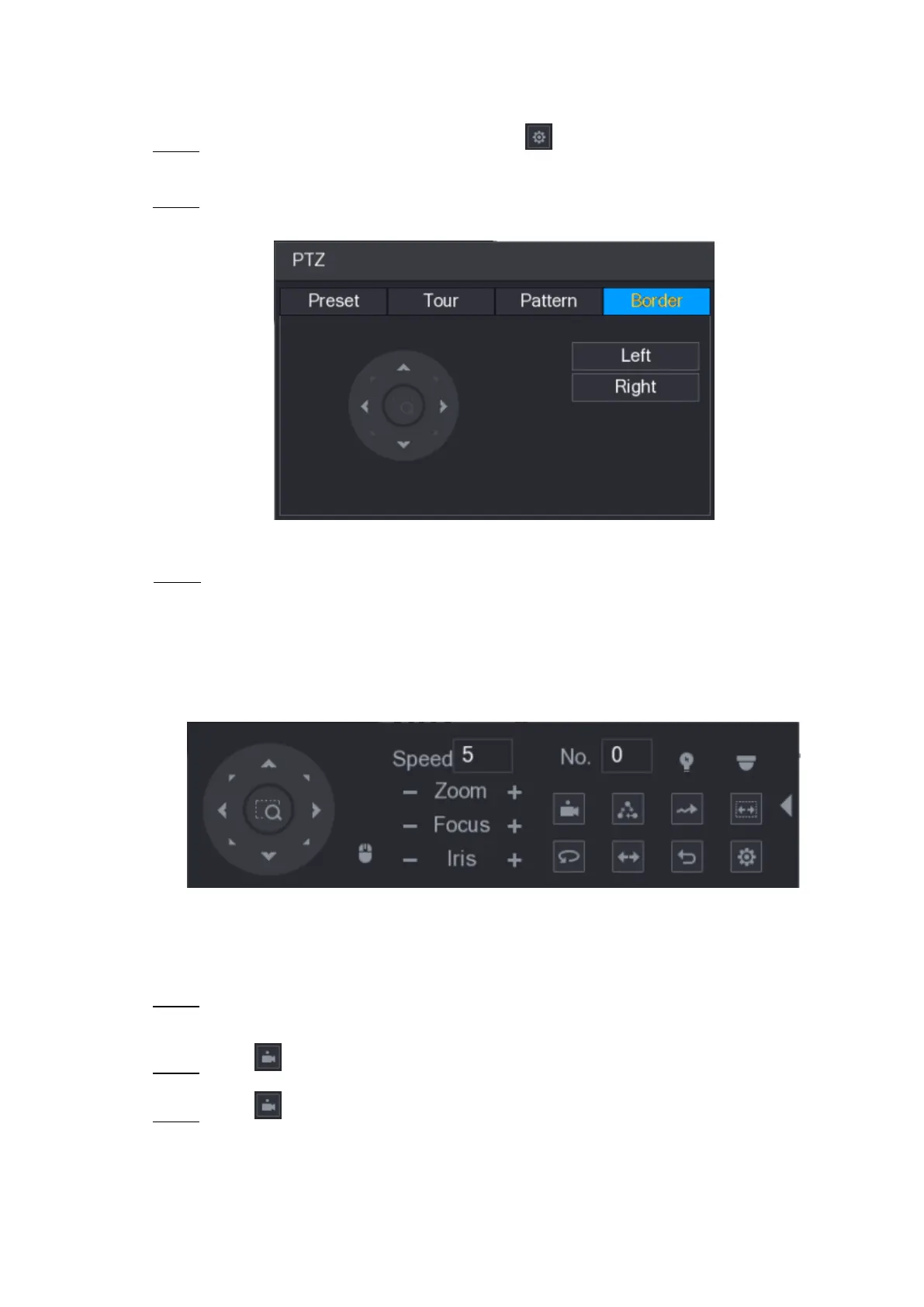

5.4.3.4 Configuring AutoScan
On the Expanded PTZ Control Panel, click . Step 1
The PTZ interface is displayed.
Click the Border tab. Step 2
The Border interface is displayed. See Figure 5-62.
Figure 5-62
Click the direction arrows to position the left and right borders. Step 3
5.4.4 Calling PTZ Functions
After you have configured the PTZ settings, you can call the PTZ functions for monitoring from
the Expanded PTZ Control Panel. See Figure 5-63.
Figure 5-63
5.4.4.1 Calling Presets
On the Expanded PTZ Control Panel, in the No. box, enter the value of the preset that Step 1
you want to call.
Click to call the preset. Step 2
Click again to stop calling the preset. Step 3

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
