Dahua DH-XVR1B08 User Manual

Local Configurations 159
Click Apply to complete the settings. Step 6
5.10.3 Alarm Output Settings
5.10.3.1 Configuring Alarm Output
When the Device activates alarms, the connected alarm device generates alarms in the way
that you can configure in this section. You can connect to the output port of the Device or
connect wirelessly.
 Auto: When an alarm event is triggered on the Device, the connected alarm device
generates alarms.
 Manual: The alarm device is forced to keep generating alarms.
 Stop: The alarm output function is not enabled.
Select Main Menu > ALARM > ALARM OUTPUT > ALARM Out. Step 1

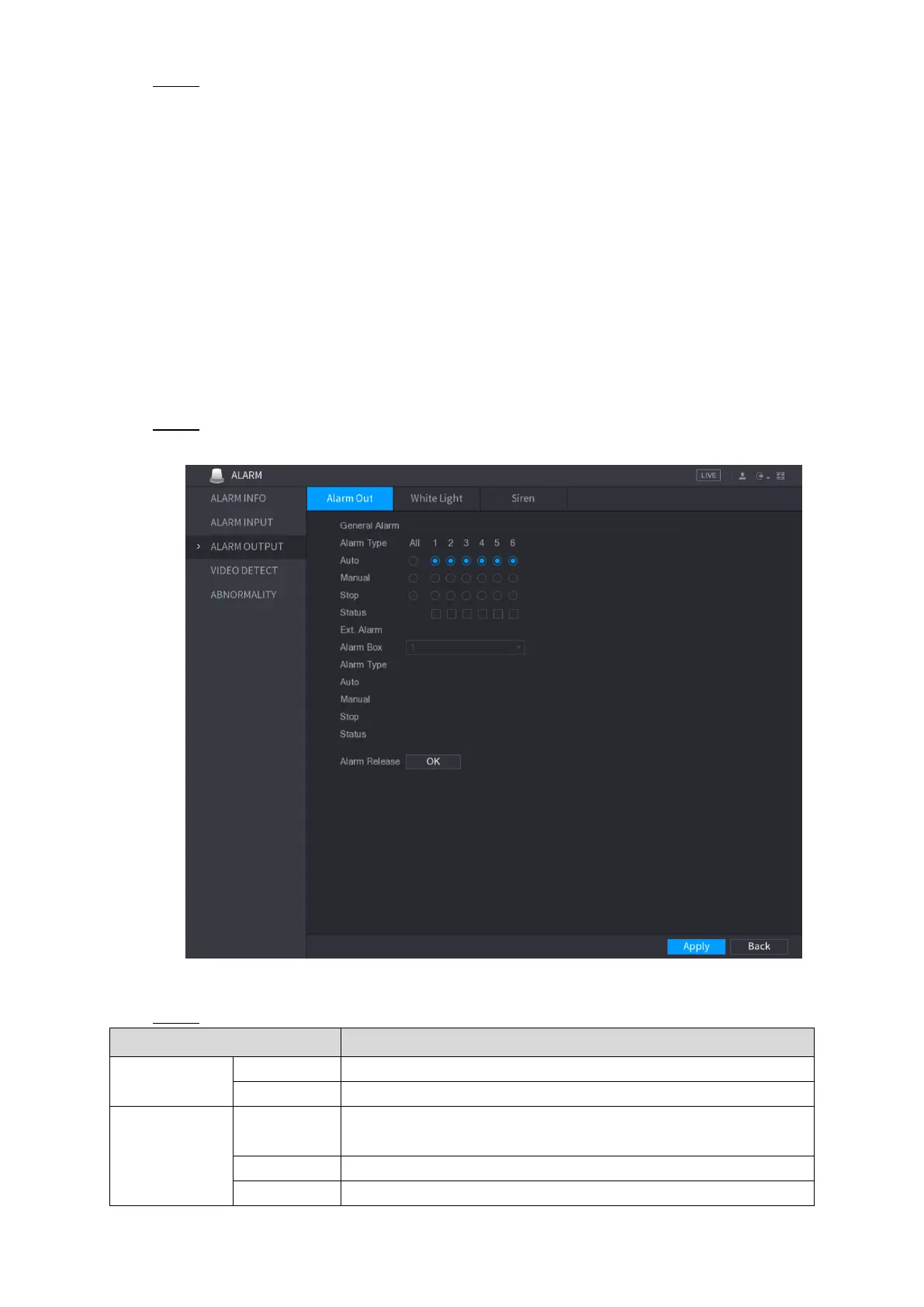

The ALARM OUTPUT interface is displayed. See Figure 5-123.
Figure 5-123
Configure the settings for the alarm output. For details, see Table 5-36. Step 2
Parameter
Description
General Alarm
Alarm Type
Select alarm type for each alarm output port.
Status
Indicates the status of each alarm output port.
Ext. Alarm
Alarm Box
Select the alarm box number corresponding to the address
number configured by the DIP switch on the Alarm Box.
Alarm Type
Select the alarm type for each alarm output ports.
Status
Indicates the status of each alarm output port.

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
