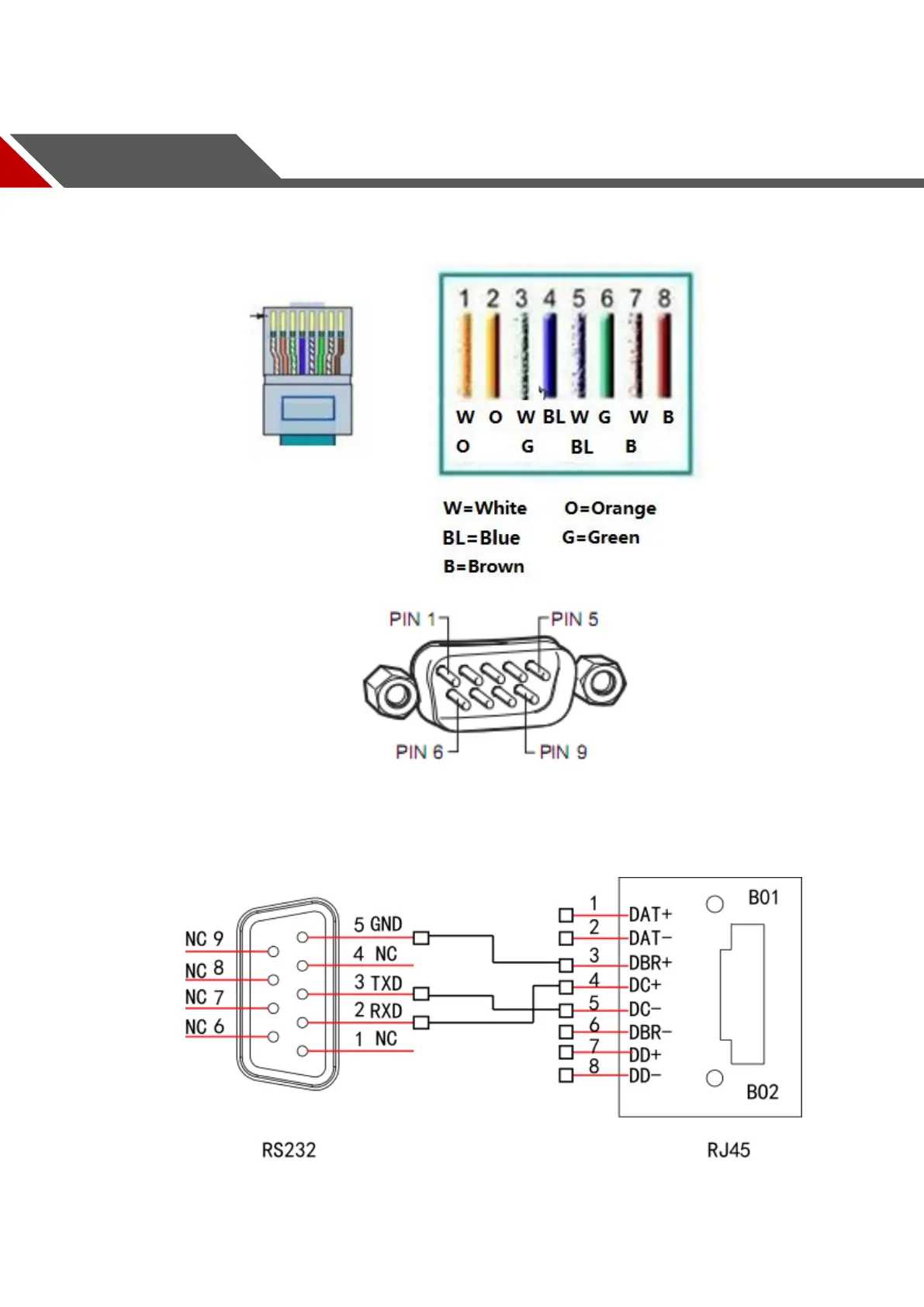

RJ45-RS-232 Connection Cable Definition 342
RJ45-RS-232 Connection Cable Definition Appendix 8
Here we are going to make standard RS-232 port and standard RJ45 (T568B).
Please refer to the following figure for RJ45 cable definition.
Please refer to the following figure for RS-232 pin definition.
Cross Connection
Please refer to the following figure for connection information.
Please refer to the following table for detailed crossover cable connection information.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua DH-XVR1B08 and is the answer not in the manual?

Dahua DH-XVR1B08 Specifications

General IconGeneral
Audio Input1 channel, RCA
Audio Output1 channel, RCA
Video Output1 HDMI, 1 VGA
USB2 USB 2.0 ports
Power SupplyDC12V/1.5A
Video CompressionH.265/H.264
Analog Camera Input8 channels, BNC
IP Camera Input8
HDD1 SATA port, up to 6TB
Network1 RJ-45 port (10/100 Mbps)
Operating Temperature-10°C to +55°C
Operating Humidity10% to 90%
Max Recording Resolution1080N/720p/960H/D1/CIF
