Dahua DH-XVR1B08 User Manual

The Grand Tour 22
No.
Port Name
Function
8
Network port
Connects to Ethernet port.
9
RS-485
communication
port
Connects to the control devices such as speed dome PTZ.
RS-485_A port is connected by the cable A and RS-485_B is
connected to the cable B.
10
Power input port
Inputs 12V DC power.
11
VGA port
Outputs analog video data to the connected display with VGA
port.
12
Power button
Turns on/off the DVR.
13
Power cable
fastener
Use clamp to secure the power cable on the DVR in case there is
any loss.
Table 3-15

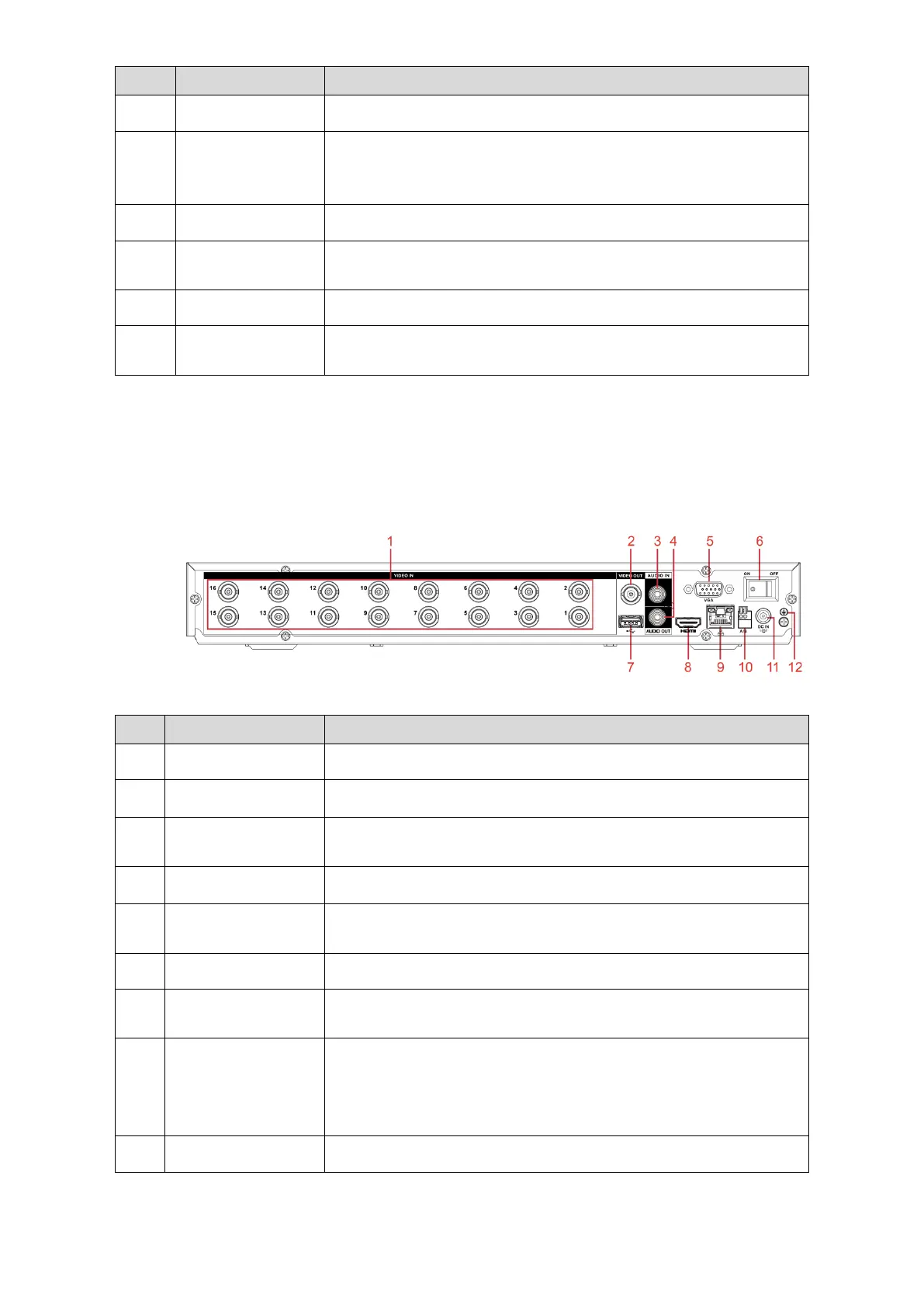

3.2.6 DH-XVR5108H-4KL-X-8P/DH-XVR5208AN-4KL-X-8P/DH-XV
R5216AN-4KL-X-16P
Figure 3-17
No.
Port Name
Function
1
Video input port
Connects to analog camera to input video signal.
2
Video output port
Connects to video output devices such as TV.
3
Audio input port
Receives audio signal output from the devices such as
microphone.
4
Audio output port
Outputs audio signal to the devices such as the sound box.
5
VGA port
Outputs analog video data to the connected display with VGA
port.
6
Power button
Turns on/off the DVR.
7
USB port
Connects to the external devices such as keyboard, mouse, and
USB storage device.
8
HDMI port
High definition audio and video signal output port.
The port outputs the uncompressed high definition video and
multi-channel audio data to the connected display with HDMI
port.
9
Network port
Connects to Ethernet port.

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
