Dahua DH-XVR1B08 User Manual

The Grand Tour 25

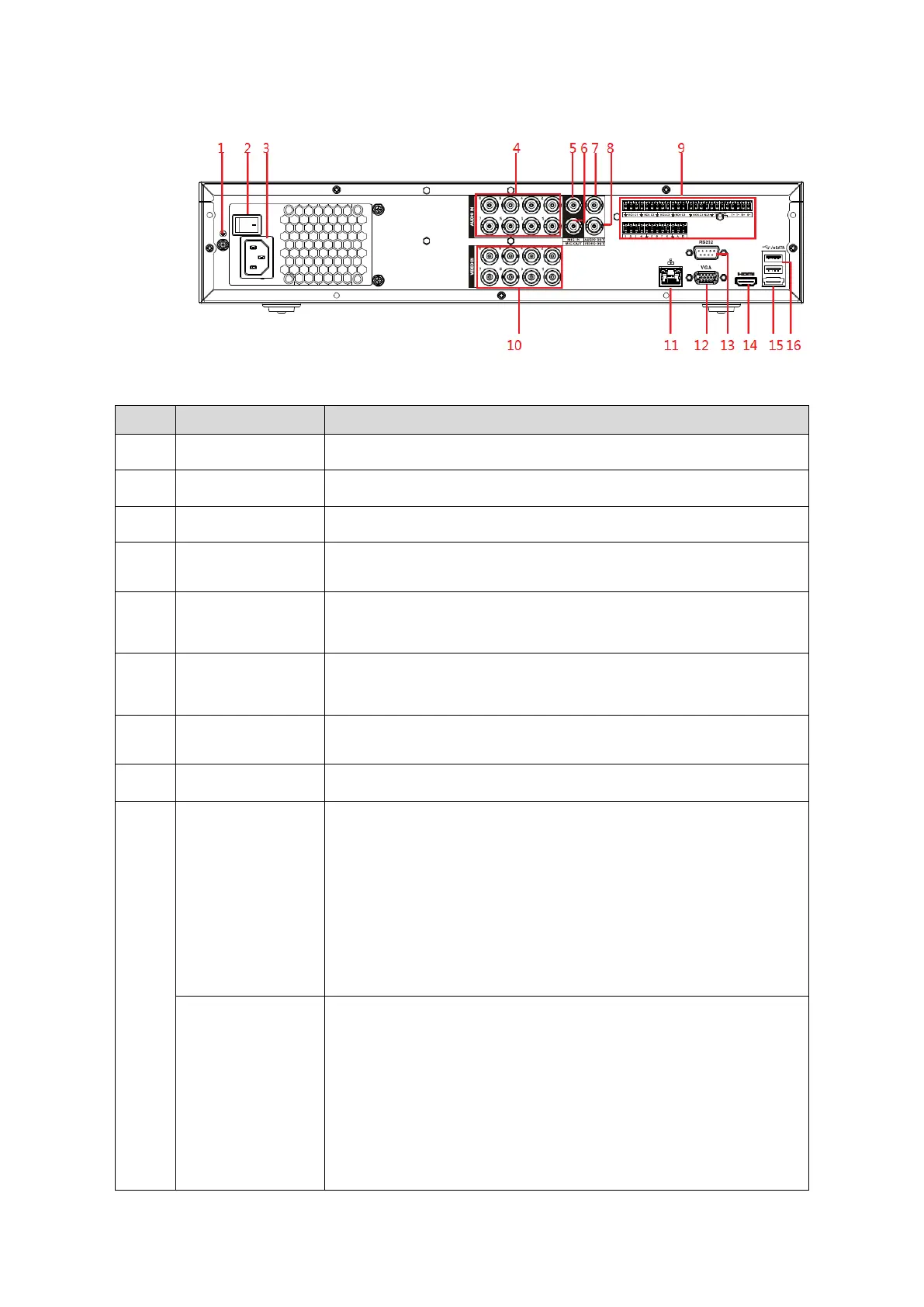

3.2.8 DH-XVR5808S-X
Figure 3-19
No.
Port Name
Function
1
GND
Ground.
2
Power button
Turns on/off the Device.
3
Power input port
Inputs power.
4
Audio input port
Receives the analog audio signal output from the devices such
as microphone.
5
Audio input port
(MIC IN)
Tow-way talk input port which receives the analog audio signal
output from the devices such as microphone, pickup.
6
Audio output port
(MIC OUT)
Tow-way talk output port which outputs the analog audio signal to
the devices such as the sound box.
7
Audio output port
Outputs the analog audio signal to the devices such as the sound
box.
8
Video output port
Connect to video output devices such as TV.
9
Alarm input port
1–16
Four groups of alarm output ports (Group 1: port 1 to port 4;

Group 2: port 5 to port 8; Group 3: port 9 to port 12; Group 4:
port 13 to port 16). These ports receive the signal from the
external alarm source. There are two types; NO (Normally
Open) and NC (Normally Closed).
When your alarm input device is using external power,

please make sure the device and the NVR have the same
ground.
Alarm output port
1–5 (NO1–NO5;
C1–C5; NC5)
Five groups of alarm output ports. (Group 1: port NO1–

C1,Group 2:port NO2–C2,Group 3:port NO3–C3, Group 4：
port NO4–C4, Group 5: port NO5, C5, NC5). These ports
output alarm signal to the alarm device. Please make sure
power supply to the external alarm device.
NO: Normally open alarm output port.

C: Alarm output public end.

NC: Normally closed alarm output port.


Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
