Dahua DH-XVR1B08 User Manual

The Grand Tour 10
3 The Grand Tour
This chapter introduces various components of the Device, remote control and mouse
operations.
3.1 Front Panel
3.1.1 DH-XVR5108C-X/DH-XVR5104C-4KL-X/DH-XVR5104C-X/
DH-XVR4104C-X/DH-XVR4108C-X/DH-XVR5104C-X1/
DH-XVR4104C-X1/DH-XVR4108C-X1

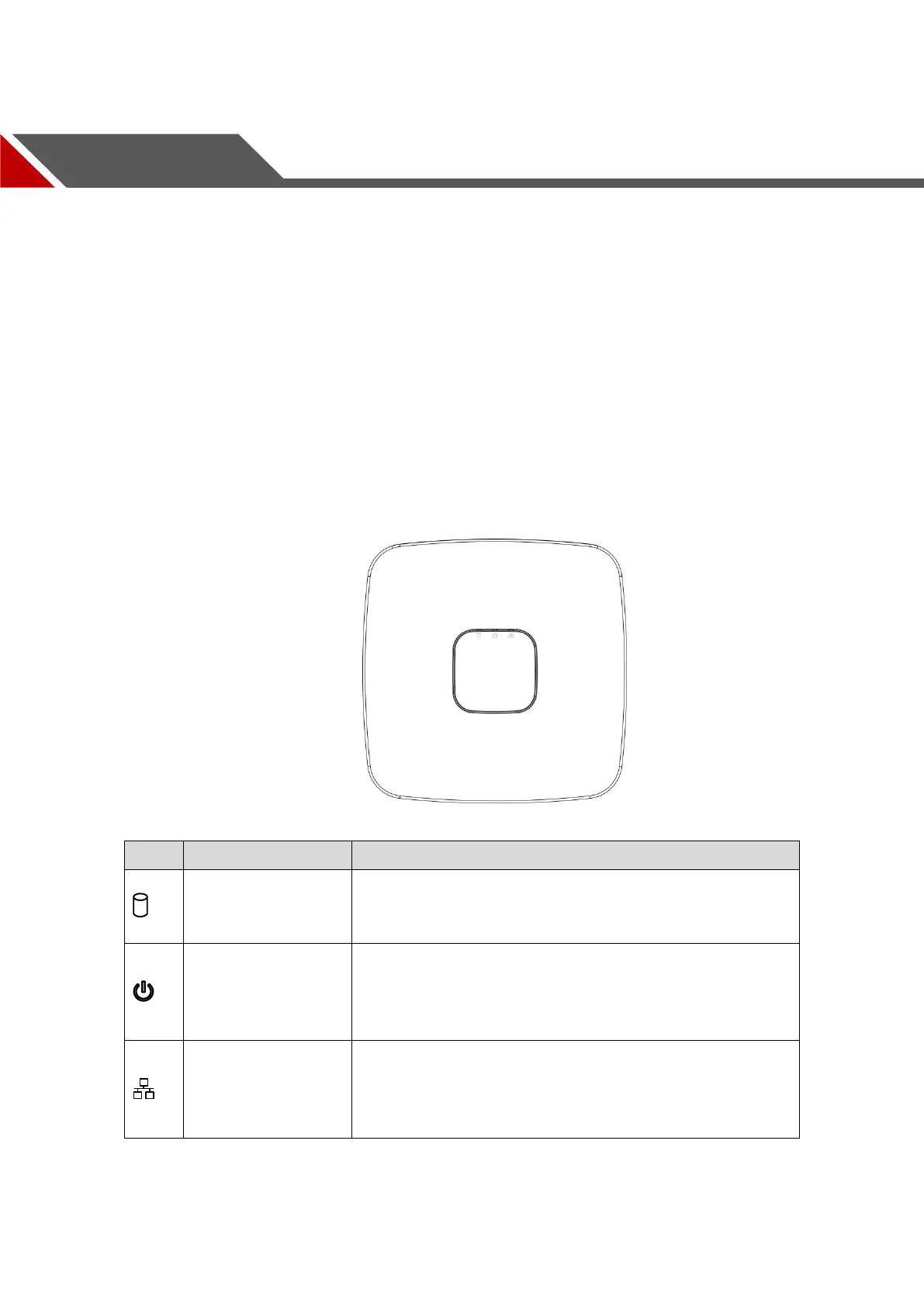

Figure 3-1
Icon
Name
Function
HDD status indicator
The indicator is off when the HDD is running normally.

The indicator glows blue when the HDD is in

malfunction.
Power status
indicator
The indicator is off when the power is connected

abnormally.
The indicator glows blue when the power is connected

normally.
Network status
indicator
The indicator is off when the network connection is

correct.
The indicator glows blue when the network connection

is abnormal.
Table 3-1

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
