Dahua DH-XVR1B08 User Manual

The Grand Tour 11
3.1.2 DH-XVR7104E-4KL-X/DH-XVR7108E-4KL-X/DH-XVR7104E-
4KL-B-X/ DH-XVR7108E-4KL-B-X

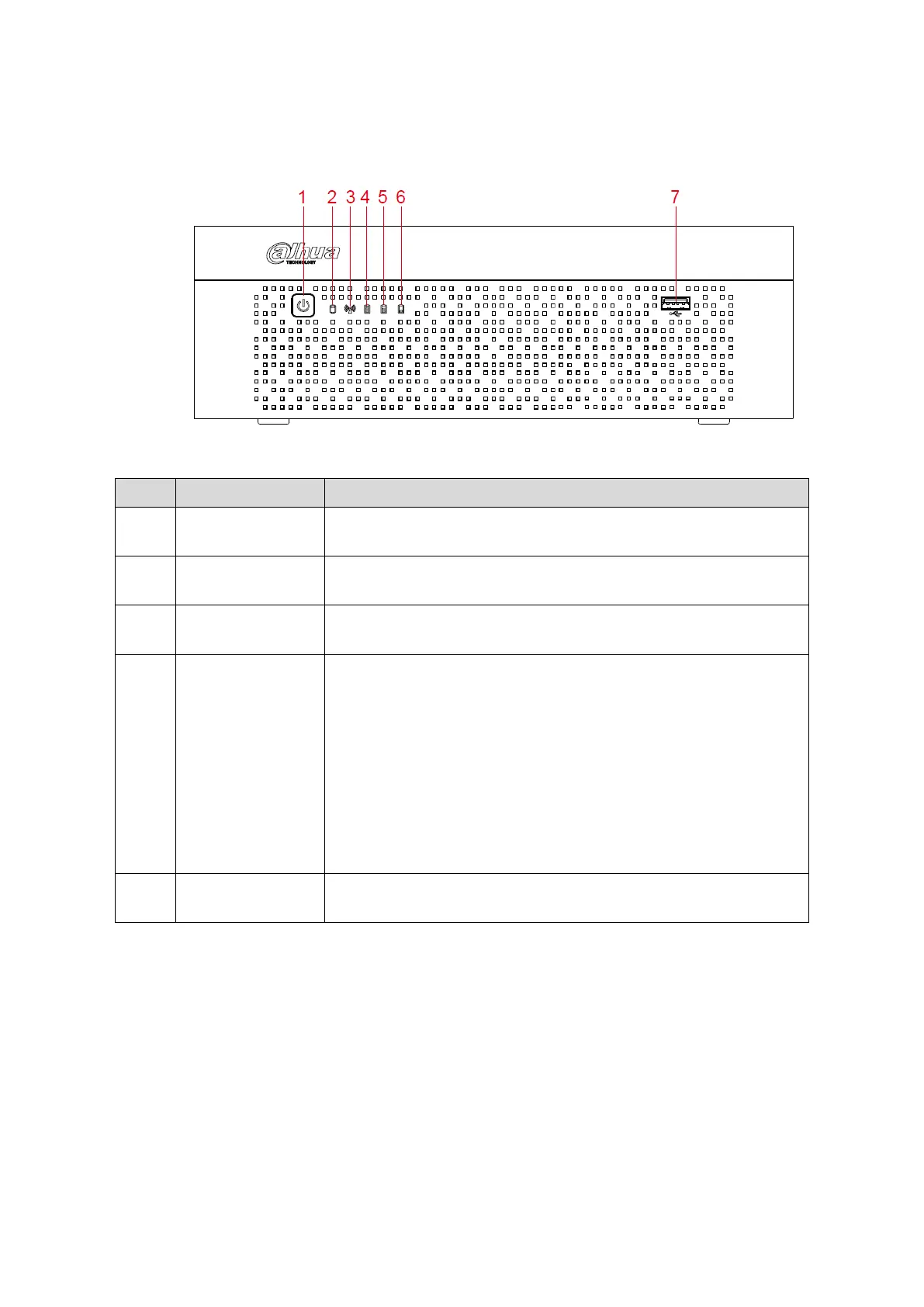

Figure 3-2
No.
Button/Icon
Function
1
Power
Turns on/off the DVR. The indicator glows blue when the DVR is
turned on.
2
HDD status
indicator
The indicator glows blue when the HDD is in malfunction.
3
Network status
indicator
The indicator glows blue when the network connection is
abnormal.
4,5,6
Battery status
indicator
When the battery remains full or no less than sixty percent,

the No.4 indicator is on, and the No.5 and No.6 are out.
When the battery remains between thirty percent and sixty

percent, the No.5 indicator is on and the others are out.
When the battery remains between one percent and thirty

percent, the No.6 indicator is on and the others are out.
When the battery is exhausted, the DVR is turned off, or

there is no battery attached to the DVR, all the three
indicators are out.
7
USB port
Connects to external devices such as USB storage device,
keyboard, and mouse.
Table 3-2

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
