Local Configurations 271
5.18.2 Configuring the Recording and Snapshot Schedule
The system starts recording and taking snapshot according to the configured schedule. For
details, see "5.1.4.9 Configuring Recorded Video Storage Schedule" and "5.1.4.10 Configuring
Snapshot Storage Schedule."
5.18.3 Configuring HDD Manager
You can view the HDD information, format HDD, and configure the HDD type through HDD
manager.
Select Main Menu > STORAGE > HDD MANAGER. Step 1

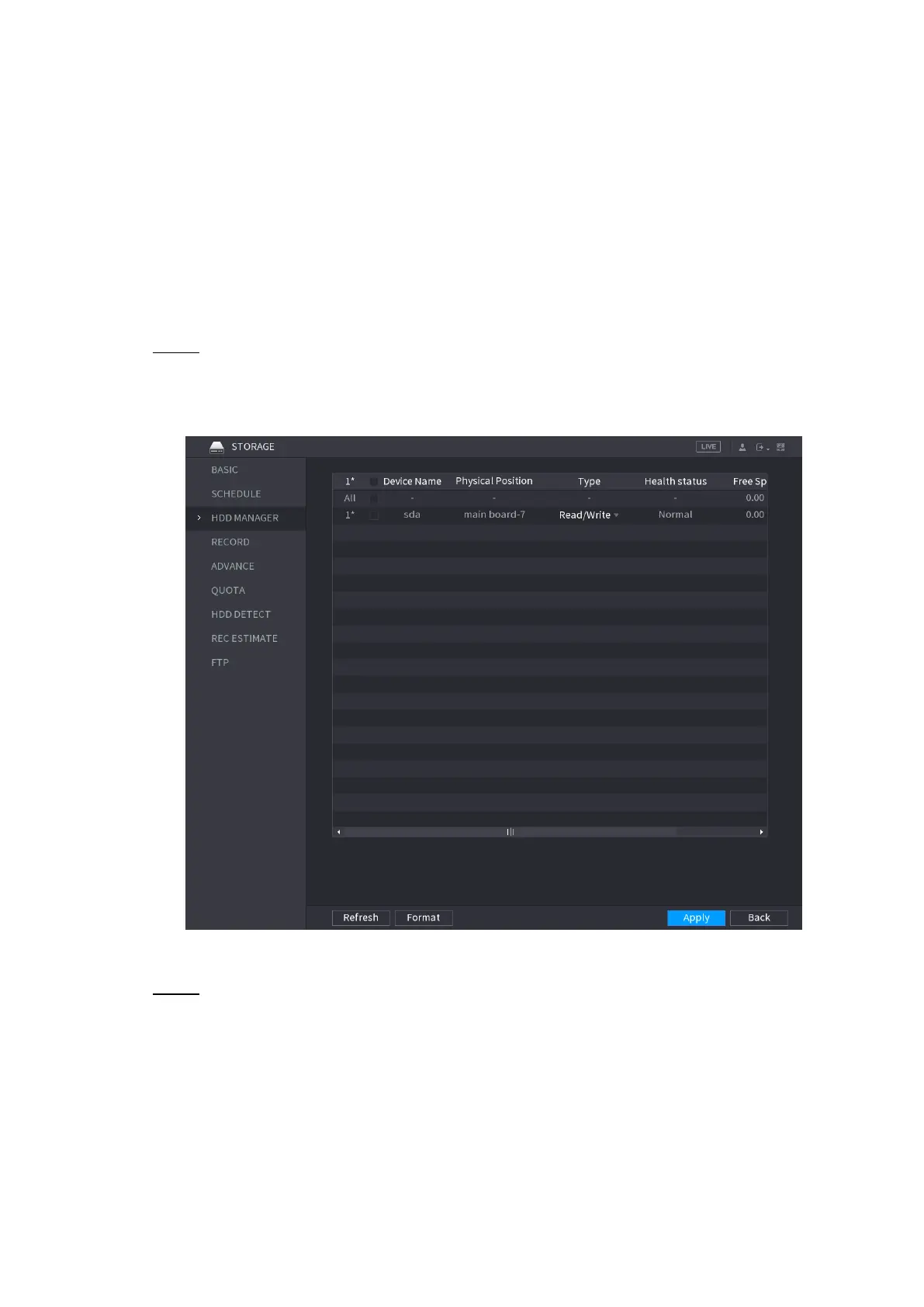

The HDD MANAGER interface is displayed. See Figure 5-238.
In the table, you can view the information of current HDD, such as device name, HDD
type, status, total space and free space, and serial number of the HDD port.
Figure 5-238
Configuring the settings for the HDD manager. Step 2
 HDD type setting: In the Type list, select Read/Write, Read-Only or Redundant,
and then click Apply to save the settings.
 HDD format: Select the HDD that you want to format, click Format, in the pop-up
message, click OK to start formatting, and then following the onscreen message to
complete formatting.

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
