Dahua DH-XVR1B08 User Manual

The Grand Tour 13
3.1.4 DH-XVR7104HE-4KL-X/DH-XVR7108HE-4KL-X/DH-XVR711
6HE-4KL-X/DH-XVR7108HE-4K-X

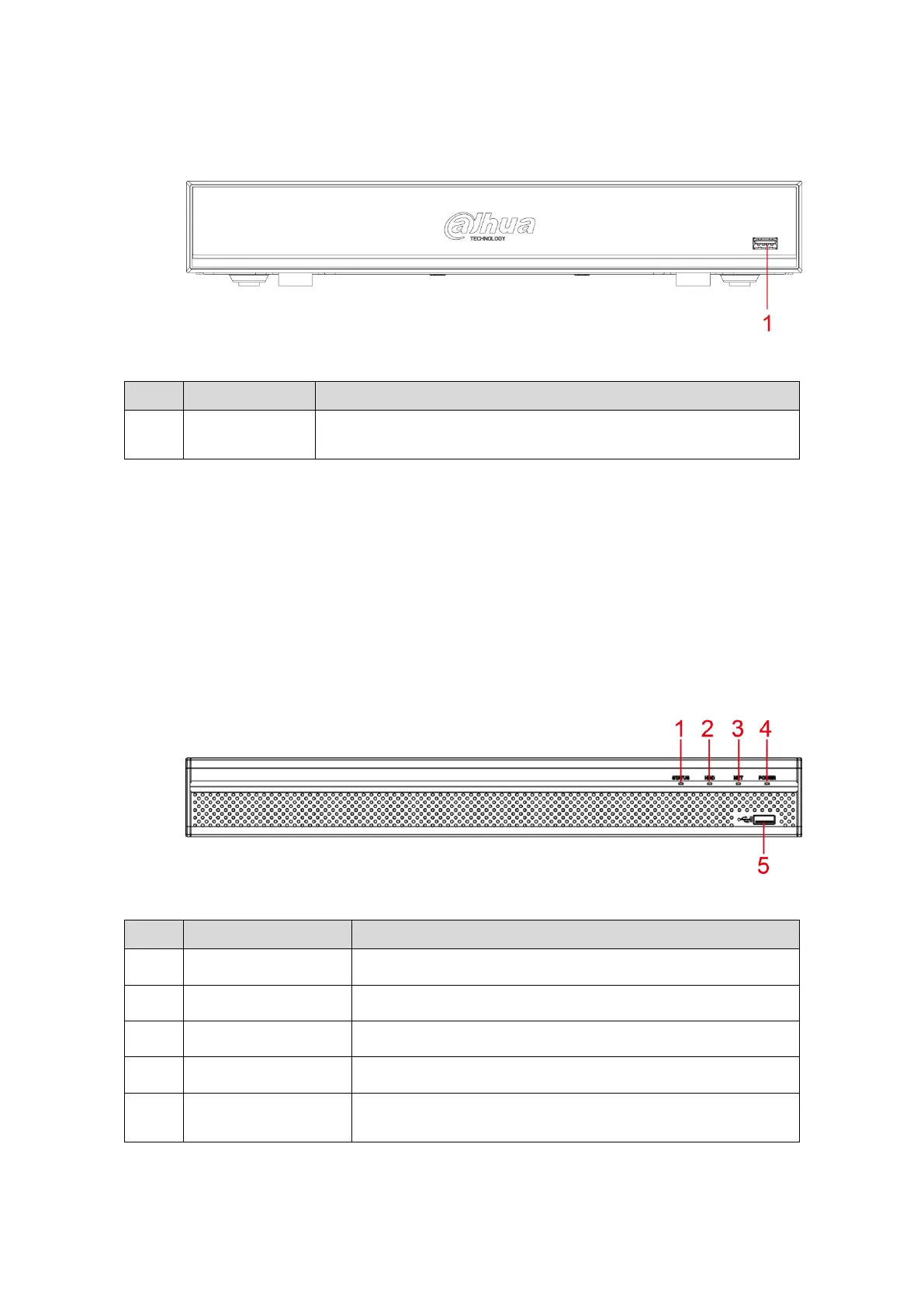

Figure 3-4
No.
Port Name
Function
1
USB port
Connects to peripheral devices such as USB storage device,
keyboard and mouse.
Table 3-4
3.1.5 DH-XVR4216AN-X/DH-XVR4232AN-X/DH-XVR5216AN-X/D
H-XVR5232AN-X/DH-XVR5208AN-4KL-X/DH-XVR5216AN-4KL-X/
DH-XVR5216A-X/DH-XVR5208AN-4KL-X-8P/DH-XVR5216AN-4KL
-X-16P/DH-XVR5216AN-X-16P
Figure 3-5
No.
Port Name
Function
1
Status indicator light
Glows blue when the device is working properly.
2
HDD
Glows blue when HDD status is abnormal.
3
NET
Glows blue when network status is abnormal.
4
POWER
Glows blue when the power is connected properly.
5
USB port
Connects to the external devices such as keyboard, mouse,
and USB storage device.
Table 3-5

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
