Dahua DH-XVR1B08 User Manual

Local Configurations 292

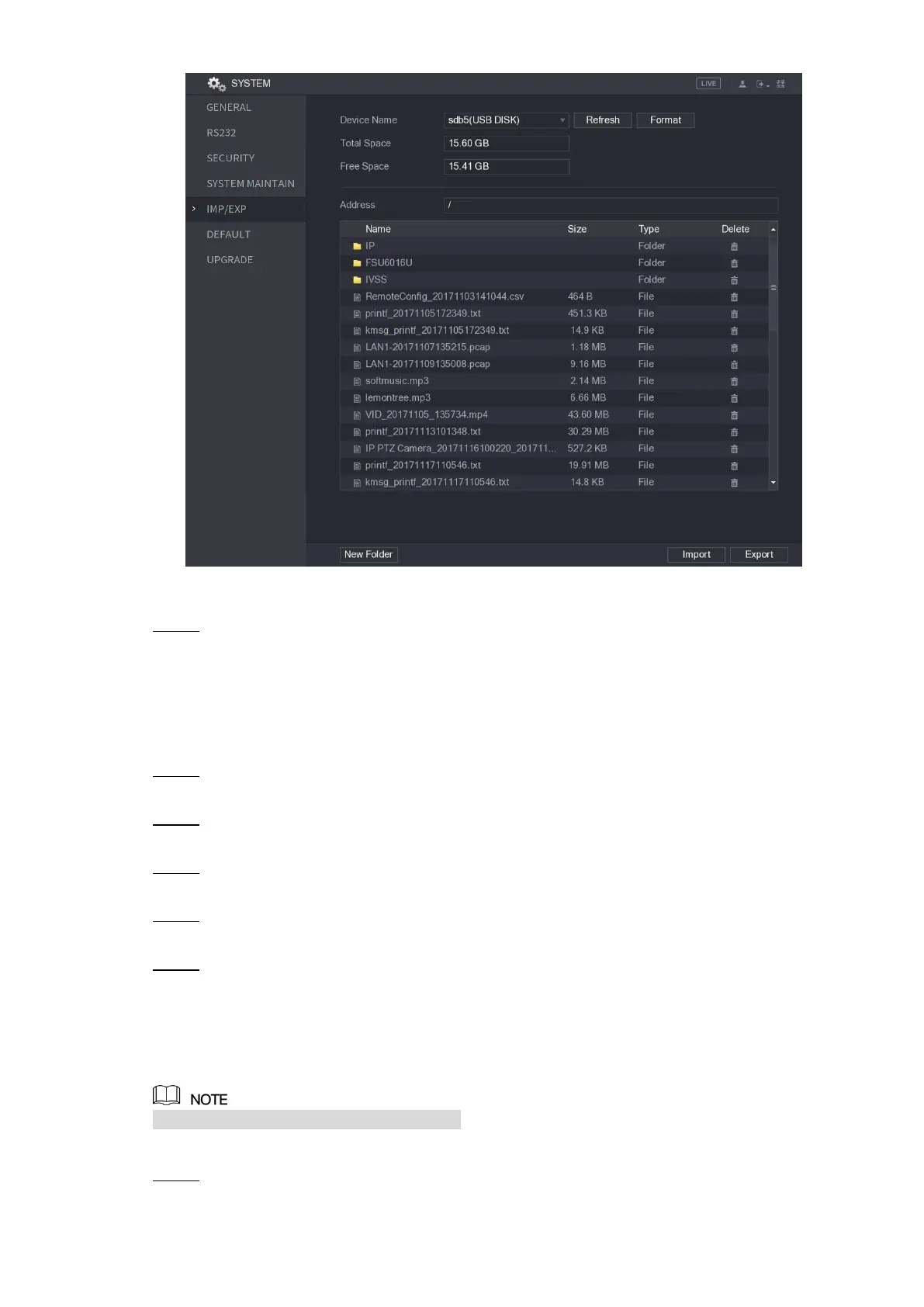

Figure 5-265
Click Export. Step 4
There is a folder under the name style of "Config_[YYYYMMDDhhmmss]". Double-click
this folder to view the backup files.
Importing System Settings
Insert a USB storage device containing the exported configuration files from another Step 1
Device) into one of the USB ports on the Device.
Select Main Menu > SYSTEM > IMP/EXP. Step 2
The IMP/EXP interface is displayed.
Click Refresh to refresh the interface. Step 3
The connected USB storage device is displayed.
Click on the configuration folder (under the name style of Step 4
"Config_[YYYYMMDDhhmmss]") that you want to import.
Click Import. Step 5
The Device will reboot after the imported is succeeded.
5.19.6 Restoring Default Settings
Only Admin account supports this function.
You can select the settings that you want to restore to the factory default.
Select Main Menu > SYSTEM > DEFAULT. Step 1
The DEFAULT interface is displayed. See Figure 5-266.

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
