Dahua DH-XVR1B08 User Manual

Local Configurations 291
Exporting System Settings
Select Main Menu > SYSTEM > IMP/EXP. Step 1

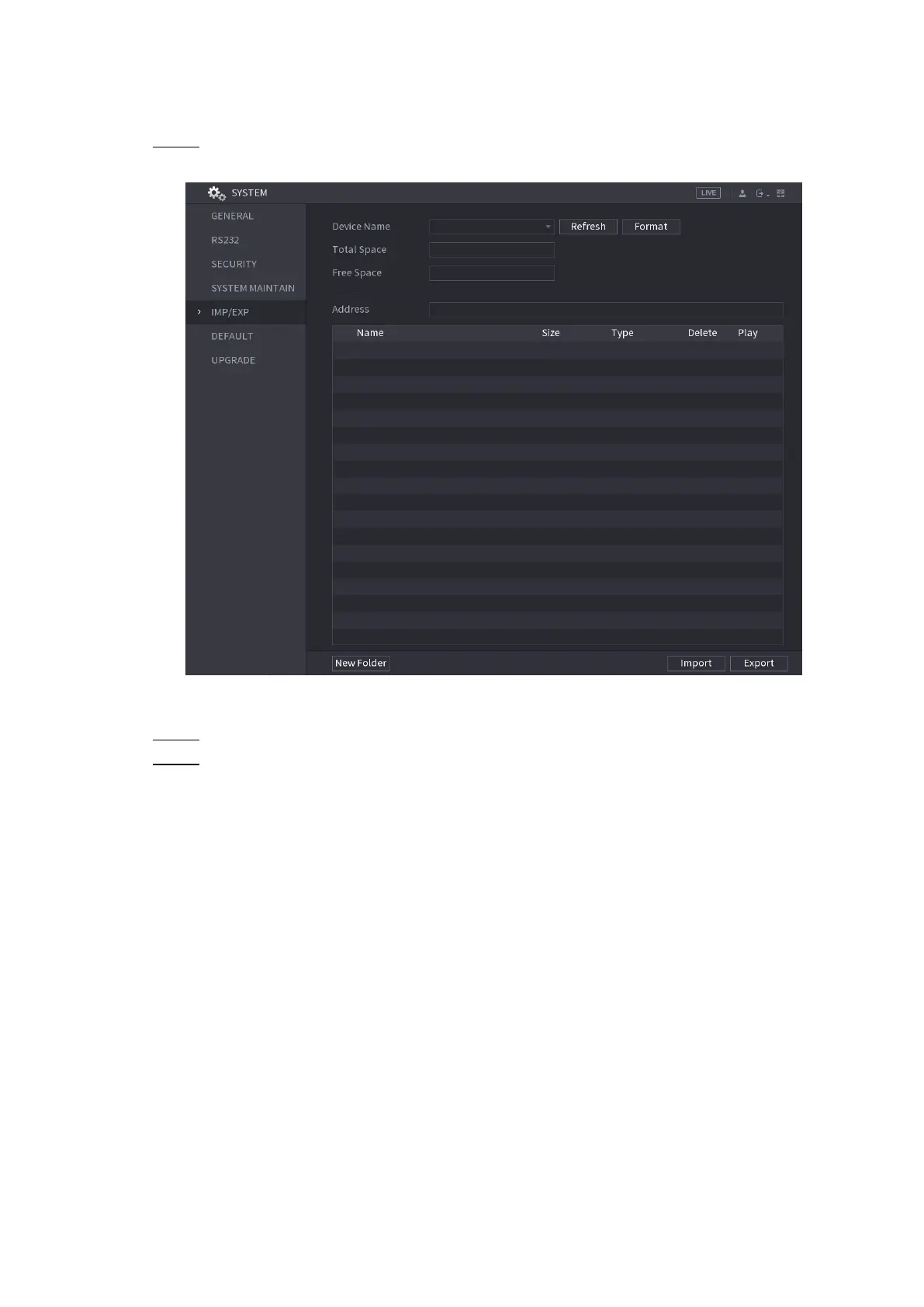

The IMP/EXP interface is displayed. See Figure 5-264.
Figure 5-264
Insert a USB storage device into one of the USB ports on the Device. Step 2
Click Refresh to refresh the interface. Step 3
The connected USB storage device is displayed. See Figure 5-265.

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
