Dahua DH-XVR1B08 User Manual

Connecting Basics 39
4 Connecting Basics
This chapter introduces the typical connection diagrams and ports connections.

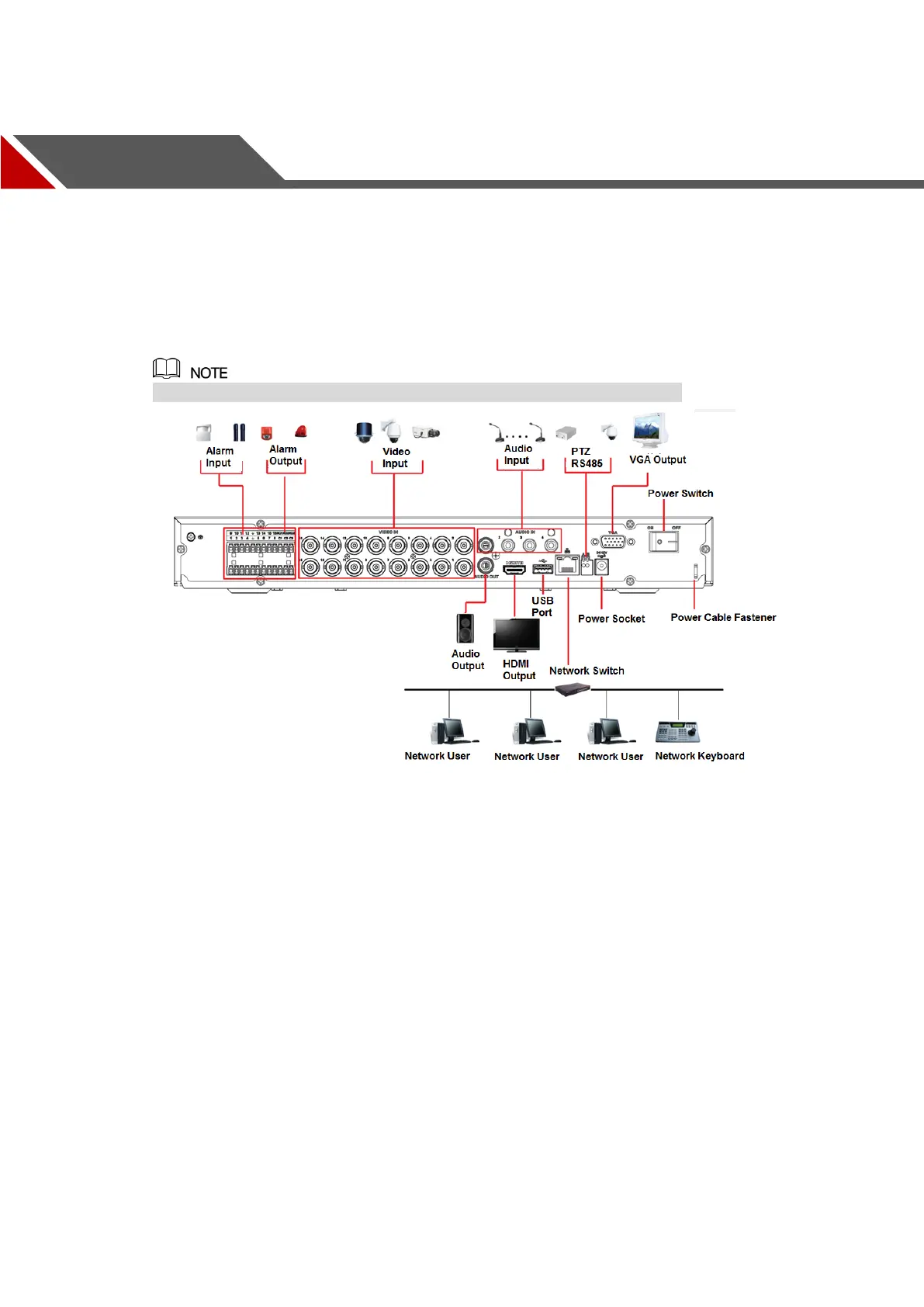

4.1 Typical Connection Diagram
The following figure is for reference only. The actual product shall govern.
Figure 4-1

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
