Dahua DH-XVR1B08 User Manual

Local Configurations 134

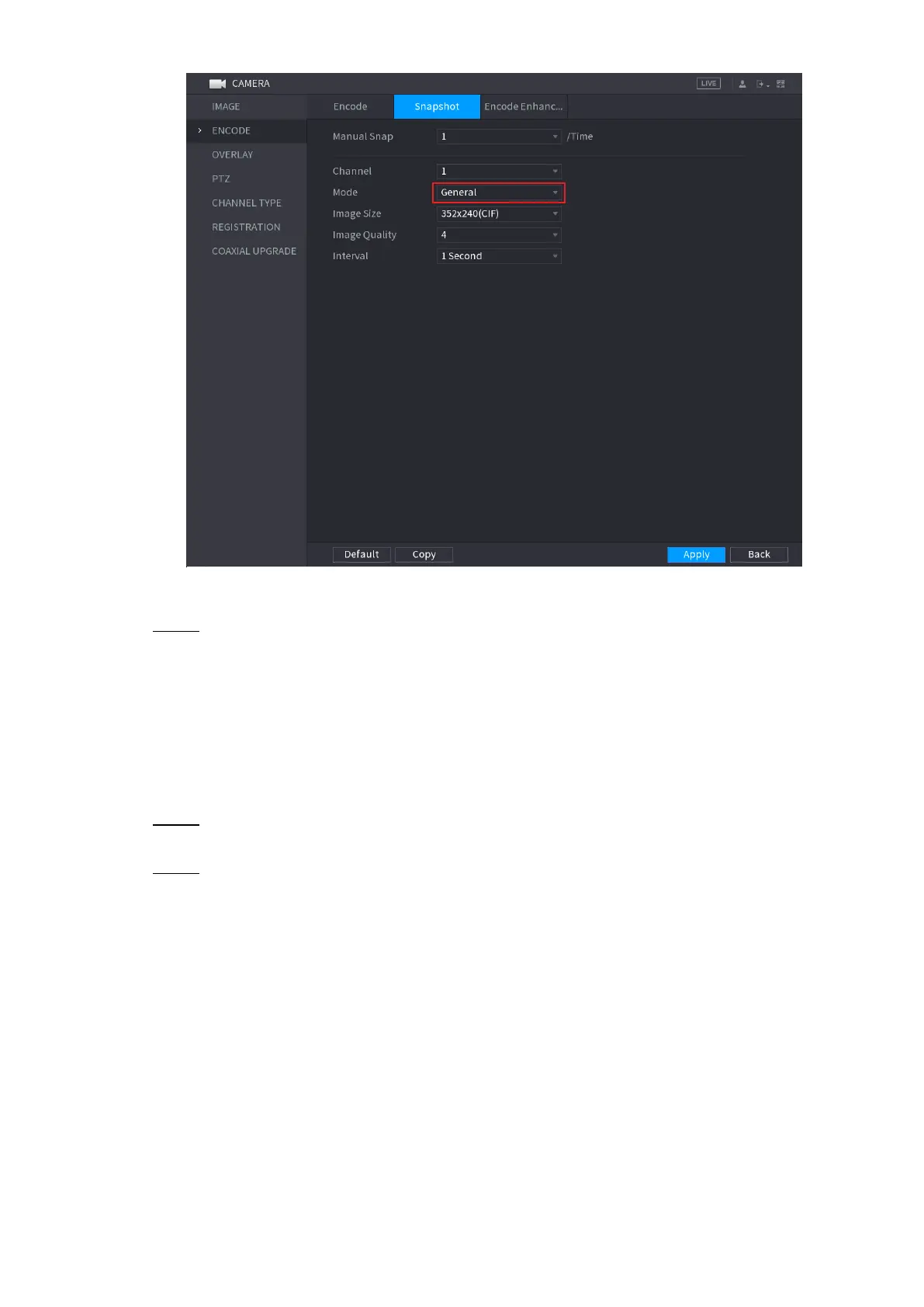

Figure 5-96
Click Apply to save the settings. Step 6
 If you have configured the snapshot schedule, the configuration has been
completed.
 If you have not configured the snapshot schedule, see "5.1.4.10 Configuring
Snapshot Storage Schedule."
5.8.1.2 Configuring Event Triggered Snapshot
Select Main Menu > CAMERA > ENCODE > Snapshot. Step 1
The Snapshot interface is displayed.
In the Mode list, select Event, and then configure other parameters. See Figure 5-97. Step 2

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
