Dahua DH-XVR1B08 User Manual

Local Configurations 253

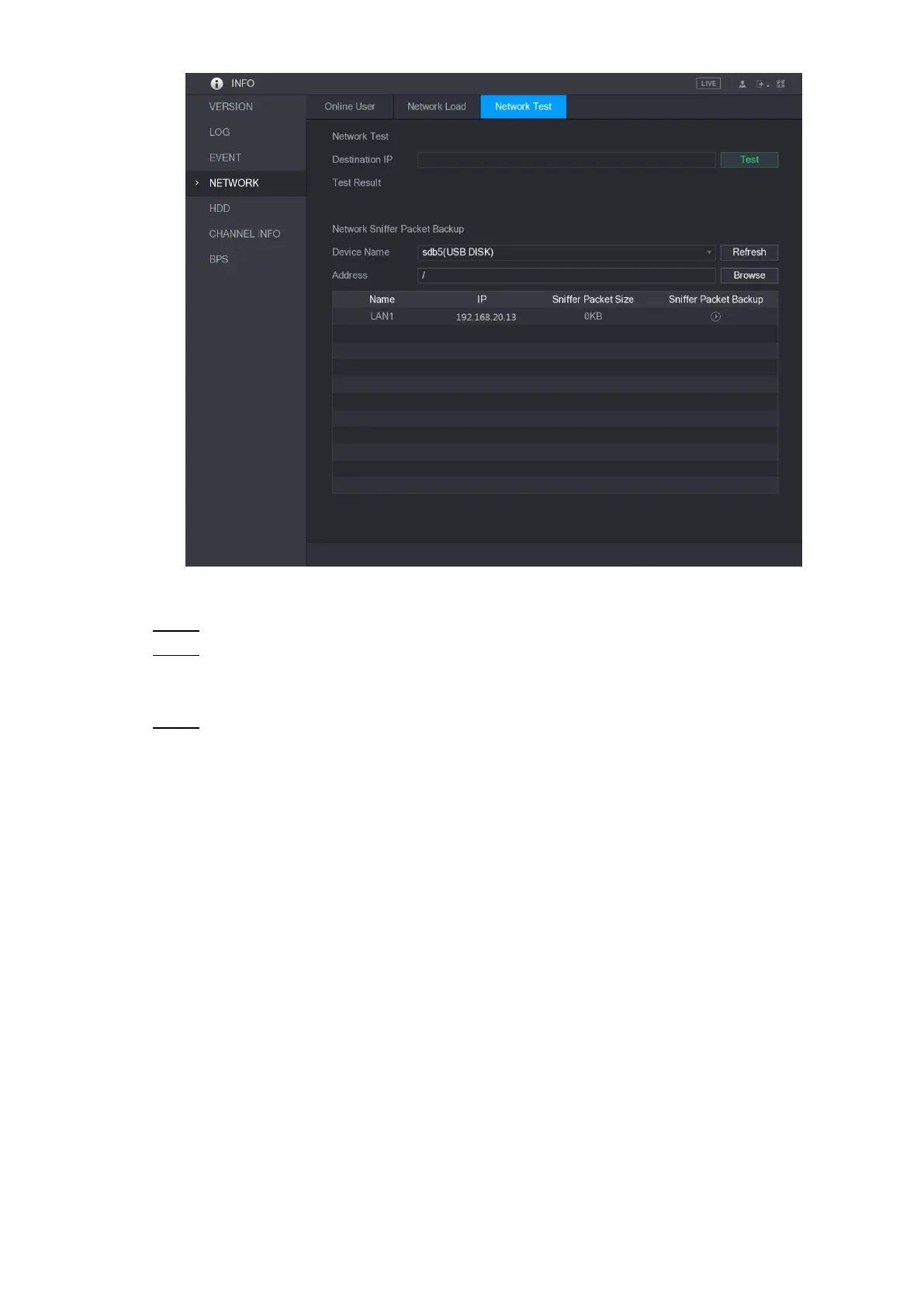

Figure 5-215
Connect a USB storage device to the Device. Step 2
Click Refresh. Step 3
The Device starts detecting the USB storage device and displays its name in the
Device Name box.
Select the route of the data that you want to capture and back up. Step 4
In the Network Sniffer Packet Backup area, click Browse. 1)
The Browse interface is displayed. See Figure 5-216.

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
