Front Panel and Rear Panel 21
Figure 2-25

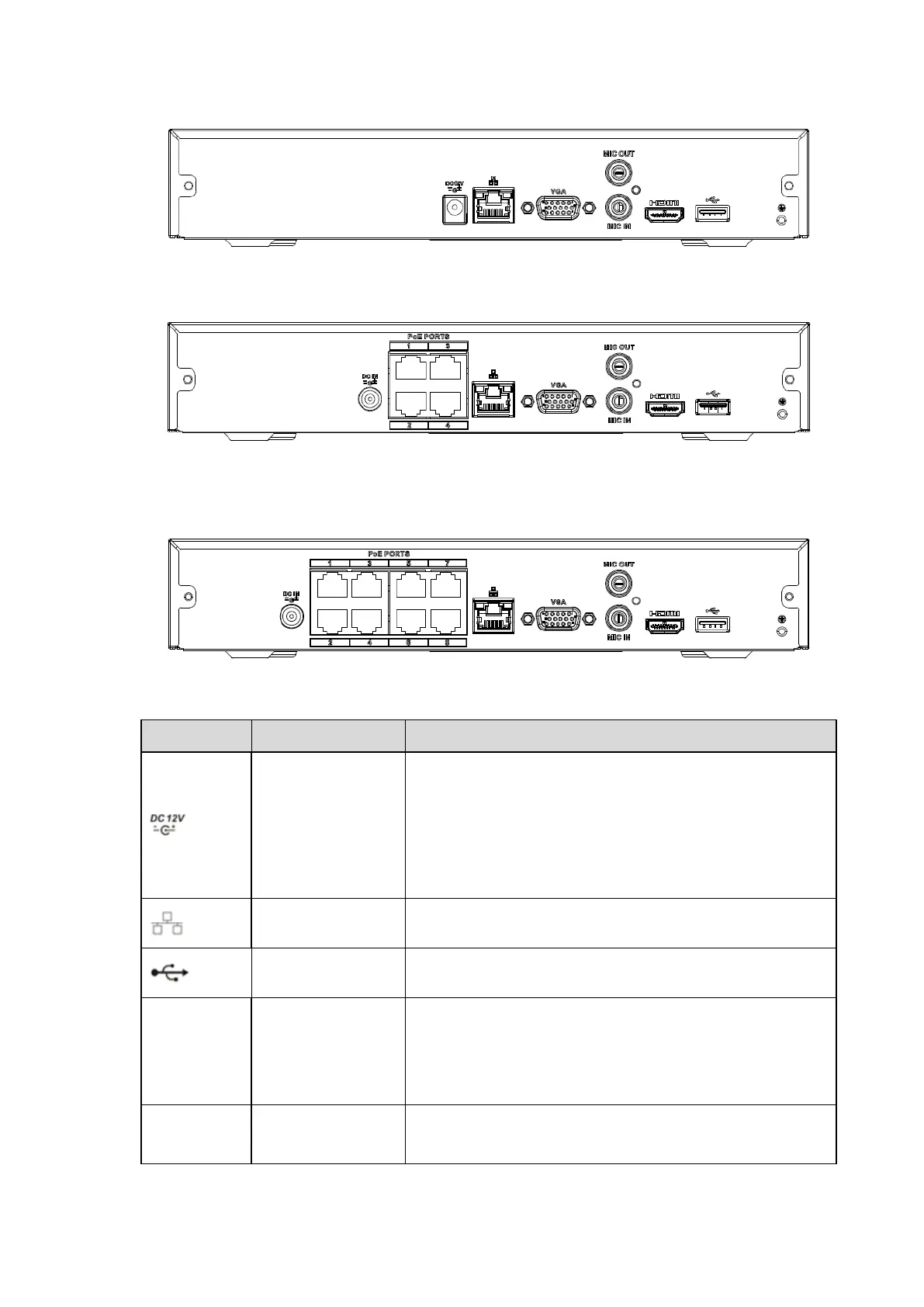

The NVR21HS-P-S2/21HS-P-4KS2 series rear panel is shown as below. See Figure 2-26.
Figure 2-26
The NVR21HS-8P-S2/21HS-8P-4KS2 series rear panel is shown as below. See Figure 2-27.
Figure 2-27
Table 2-16
Port Name
Connection
Function
Power input port
Power socket.
 For NVR21HS-S2/21HS-4KS2, input DC 12V/2A.
 For NVR21HS-P-S2/21HS-P-4KS2, input DC
48V/1.25A.
 For NVR21HS-8P-S2/21HS-8P-4KS2, input DC
48V/2A.
Network port
10M/100Mbps self-adaptive Ethernet port. Connect to the
network cable.
USB port
USB port. Connect to mouse, USB storage device and
etc.
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
VGA
VGA video output
port
VGA video output port. Output analog video signal. It can
connect to the monitor to view analog video.
