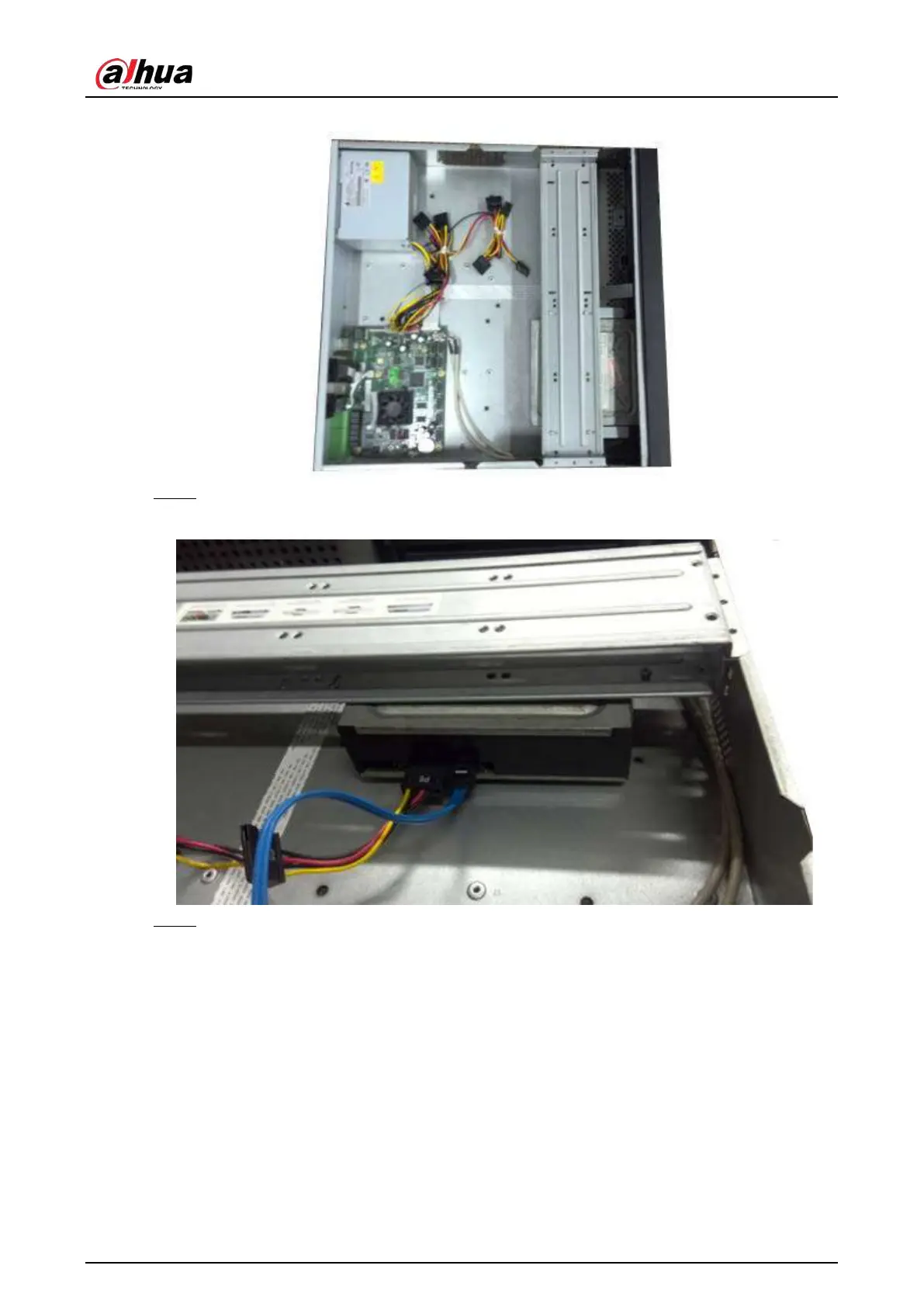

Figure 3-45 Put bracket back

Step 8 Connect the SATA cable and power wire.

Figure 3-46 Connect cables

Step 9 Secure the HDD bracket and put the top cover back.
