No. Port Name Function
MIC OUT
Audio output port. It is to output analog audio signal to
devices such as sound box.
●
Bidirectional talk output.
●
Audio output on 1-window video monitor.
●
Audio output on 1-window video playback.
7 HDMI port
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel audio data to displays with HDMI port.
The two HDMI ports support 2-channel high definition
HDMI output of different sources.
8 USB port
USB 3.0 port. Connect to devices such as mouse, USB
storage device and USB burner.
9 Network port
10/100/1000 Mbps self-adaptive Ethernet port. Connect to
the network cable.
10 Power input port Input power of 100-240 V and 50Hz-60Hz.
11
GND.
2.2.25 NVR54-I/NVR54-I/L/NVR44-I Series
●
The following figure takes NVR5432-16P-I and NVR5432-16P-I/L series as examples.
●
The figure is for reference only.

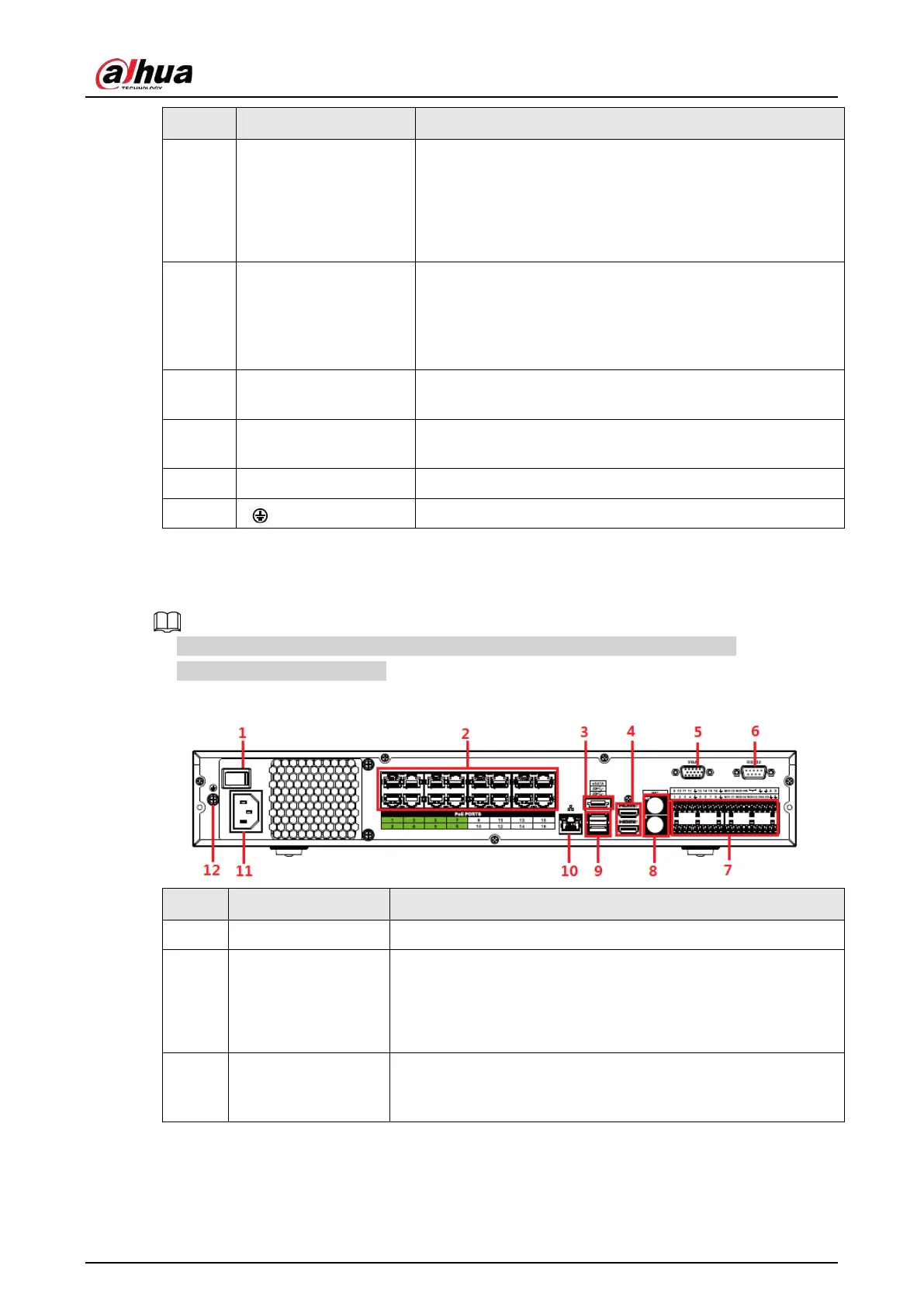

Figure 2-70 Rear panel
No. Port Name Function
1 Power button Turns on/off the NVR.
2 PoE port
Built-in switch. It can provide power for IPC.
●
16 PoE ports: 1-8 are ePoE ports (support 300m @ 100M.
800m @ 10M). 9-16 are regular PoE ports.
●
Device with 16 PoEs supports 150 W total power.
3 eSATA port
External SATA port. It can connect device with SATA port. You
need to jump the HDD when there is peripherally connected
HDD.
