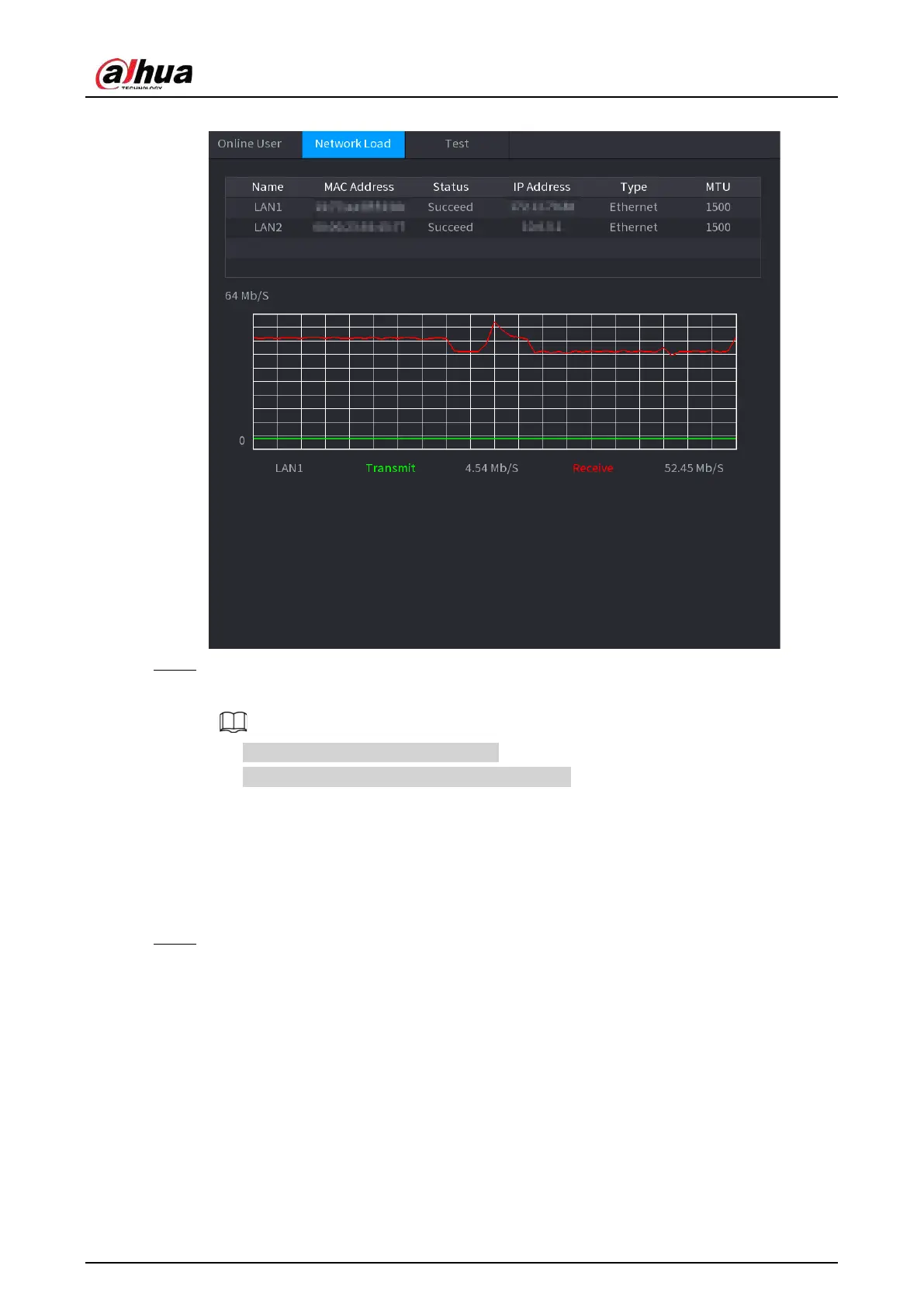

Figure 5-279 Network load

Step 2 Click the LAN name that you want to view, for example,

LAN1

The system displays the information of data sending speed and receiving speed.

●

System displays LAN1 load by default.

●

Only one LAN load can be displayed at one time.

5.19.3.3 Network Test

You can test the network connection status between the Device and other devices.

Procedure

Step 1 Select

Main Menu

MAINTAIN

Network

Test
