User's Manual
257

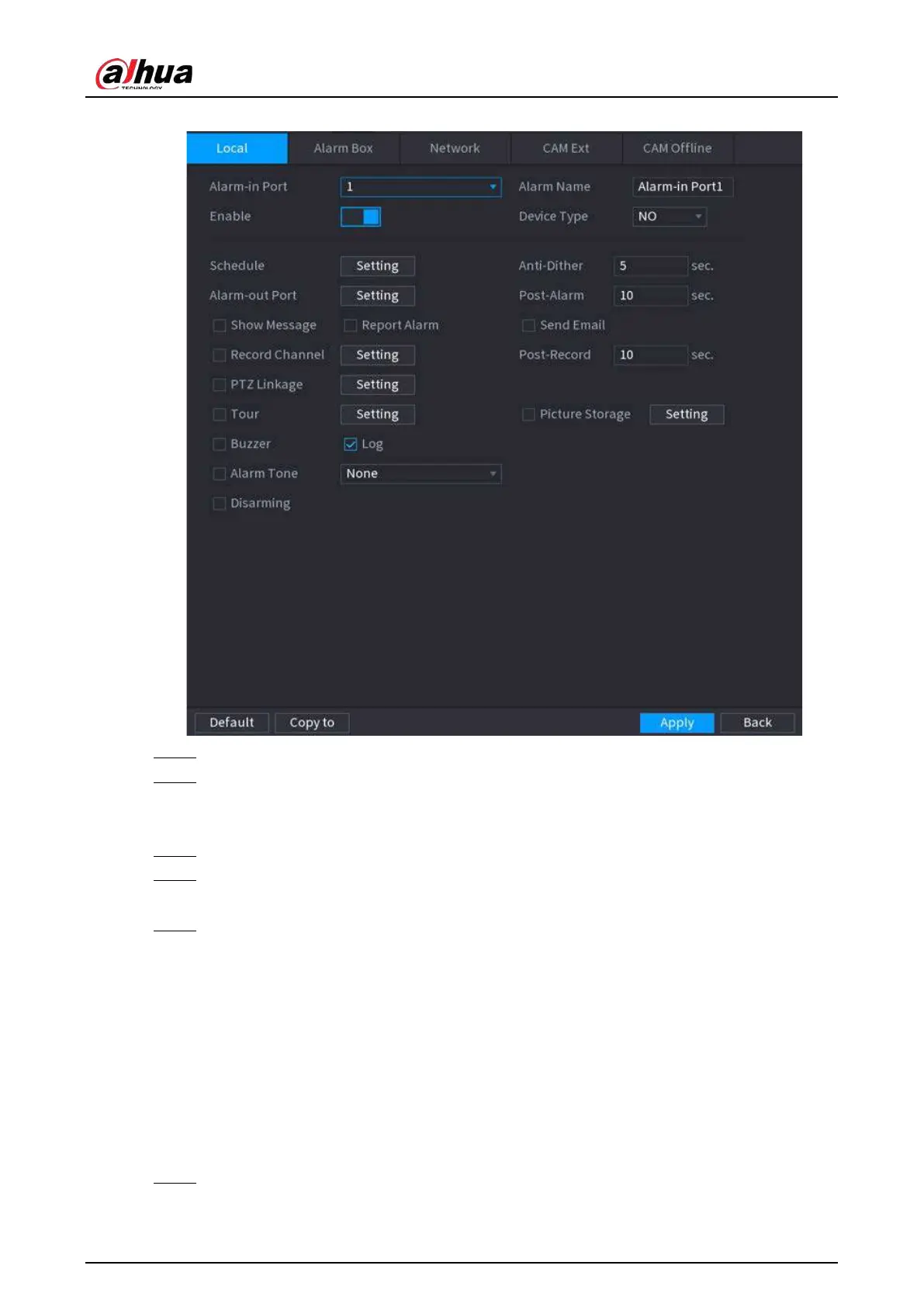

Figure 5-169 Local alarm
Step 3 Click
Setting
next to
Schedule
to configure the alarm schedule.
Step 4 Configure the anti-dither period.
If multiple alarms occur during the anti-dither period, the system only record the event
once.
Step 5 Configure alarm linkage. For details, see Table 5-43.
Step 6 Enable
Disarming
so that you can connect a switch to the alarm input port for disarming
control.
Step 7 Click
Apply
.
5.10.4 Alarm Output
You can set proper alarm output mode to auto, manual or off. After you connect the alarm device to
the alarm output port of NVR, and set the mode to auto, the system performs alarm linkage actions
when an alarm occurs.
●
Auto: Once an alarm event occurs, the system generates an alarm.
●
Manual: Alarm device is always on the alarming mode.
●
Off: Disable alarm output function.
Step 1 Select
Main Menu
>
ALARM
>
Alarm-out Port
.
