Figure 5-276 BPS

5.19.2.5 Device Status

You can view fan running status such as speed, CPU temperature, and memory.

Select

Main Menu

MAINTAIN

System Info

Device Status

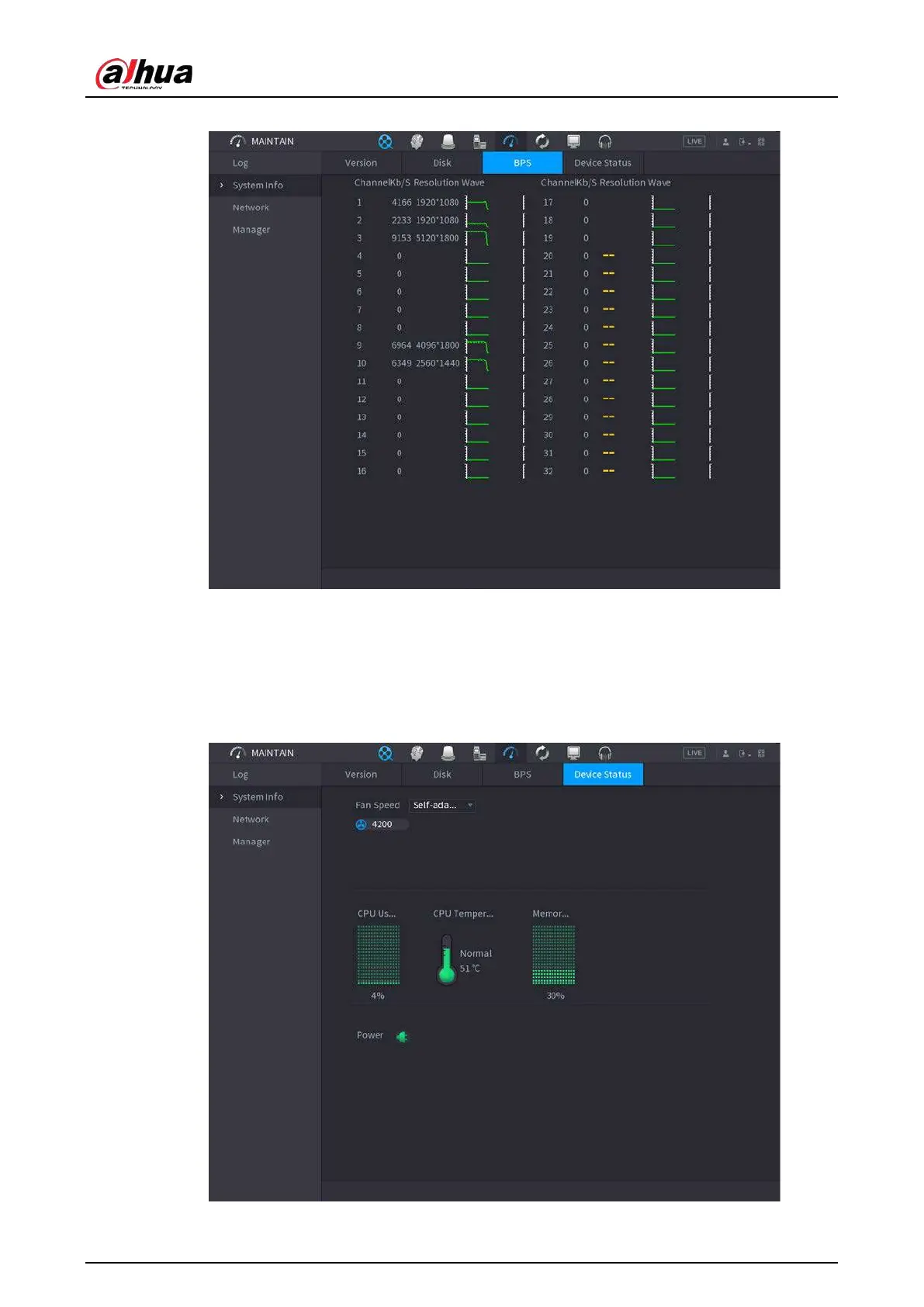

Figure 5-277 Device status
