User's Manual

I/L/NVR42-8P-I/NVR42-16P-I Series

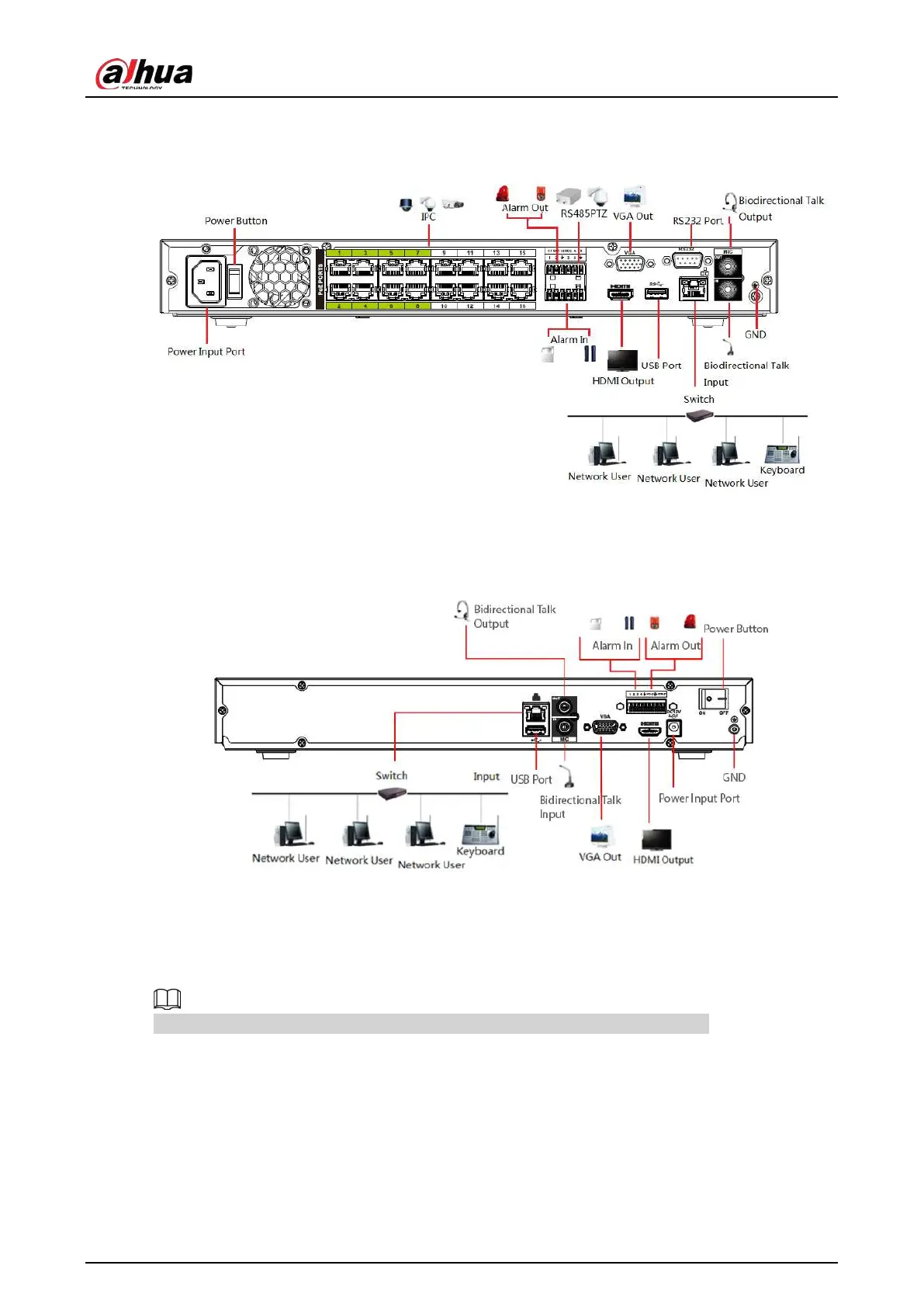

Figure 3-59 Typical connection

3.5.13 NVR4216-I Series

Figure 3-60 Typical connection

3.5.14 NVR608-4KS2/NVR608H-XI/NVR608RH-XI Series

The following figure is for reference only and might differ from the actual product.

Foreword2
