User's Manual
13
Table 2-9 Icons
No. Port Name Function
1 USB port
Connects to the external devices such as keyboard,
mouse, and USB storage device.
2 IR indicator Receives signals from the remote control.
2.1.11 NVR48-4KS2/I/NVR48-16P-4KS2/I Series
The figures are for reference only.

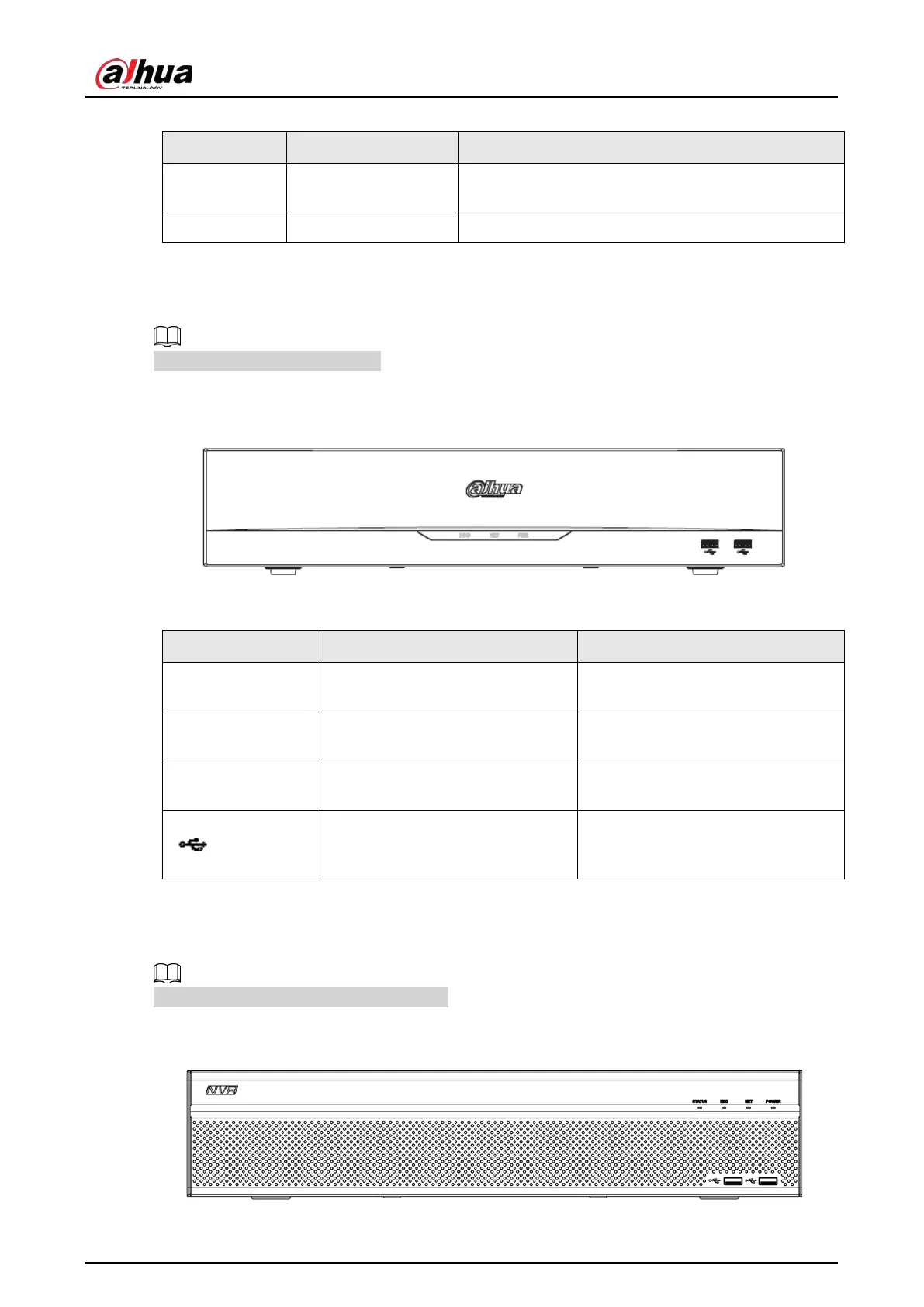

The NVR48-4KS2/I/NVR48-16P-4KS2/I series front panel is shown as below.
Figure 2-19 Front panel
Table 2-10 Icons
Icon Name Function
HDD HDD status indicator light
The blue light is on when the HDD
malfunctions.
NET Network status indicator light
The blue light is on when the
network connection is abnormal.
PWR Power status indicator light
The blue light is on when the power
connection is normal.
USB 2.0 port
Connect to peripheral USB 2.0
storage device, mouse, burner and
more.
2.1.12 NVR608-32-4KS2 Series
The following figures are for reference only.
The NVR608-32-4KS2 front panel is shown as below.
Figure 2-20 Front panel
