No. Port Name Function
MIC OUT
Audio output port. It is to output analog audio signal to devices
such as sound box.
●
Bidirectional talk output.
●
Audio output on 1-window video monitor.
●
Audio output on 1-window video playback.
9 USB port
USB 3.0 port. Connect to devices such as mouse, USB storage
device and USB burner.
10 Network port
10/100/1000 Mbps self-adaptive Ethernet port. Connect to the
network cable.
11 Power input port Input power of 100V-240V and 50Hz-60Hz.
12
GND.
2.2.26 NVR52-16P-I/NVR52-16P-I/L/NVR52-8P-I/NVR52-8P-
I/L/NVR42-16P-I Series
These figures are for reference only.

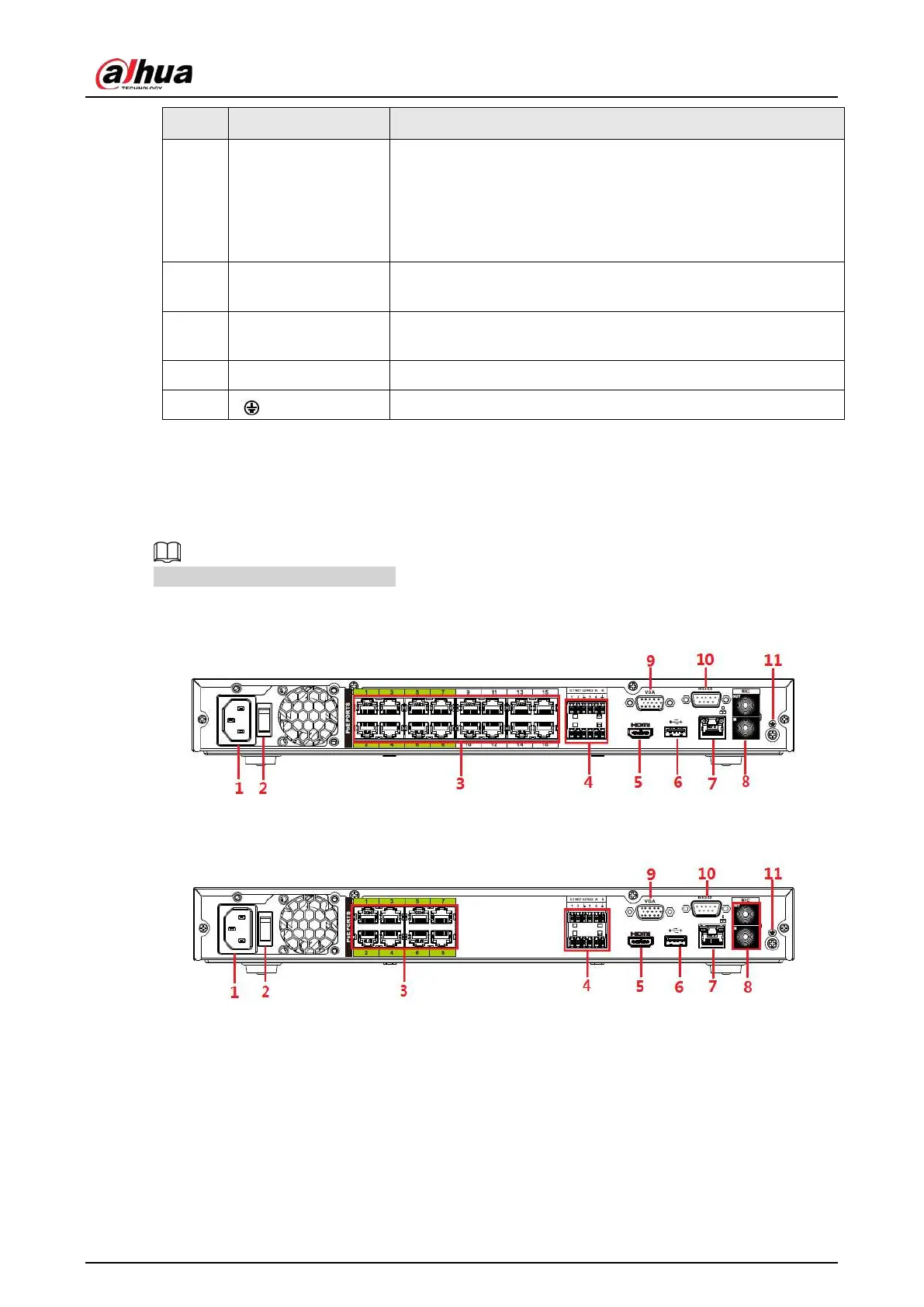

The NVR52-16P-I/NVR52-16P-I/L series rear panel is shown as below.
Figure 2-71 Rear panel
The NVR52-8P-I/NVR52-8P-I/L series rear panel is shown as below.
Figure 2-72 Rear panel
The NVR4216-16P-I series rear panel is shown as below.
