Dahua JRC-27F - 4 KS2;I;NVR48-4 KS2;I;NVR48-16 P-4 KS2;I Series

User's Manual
71

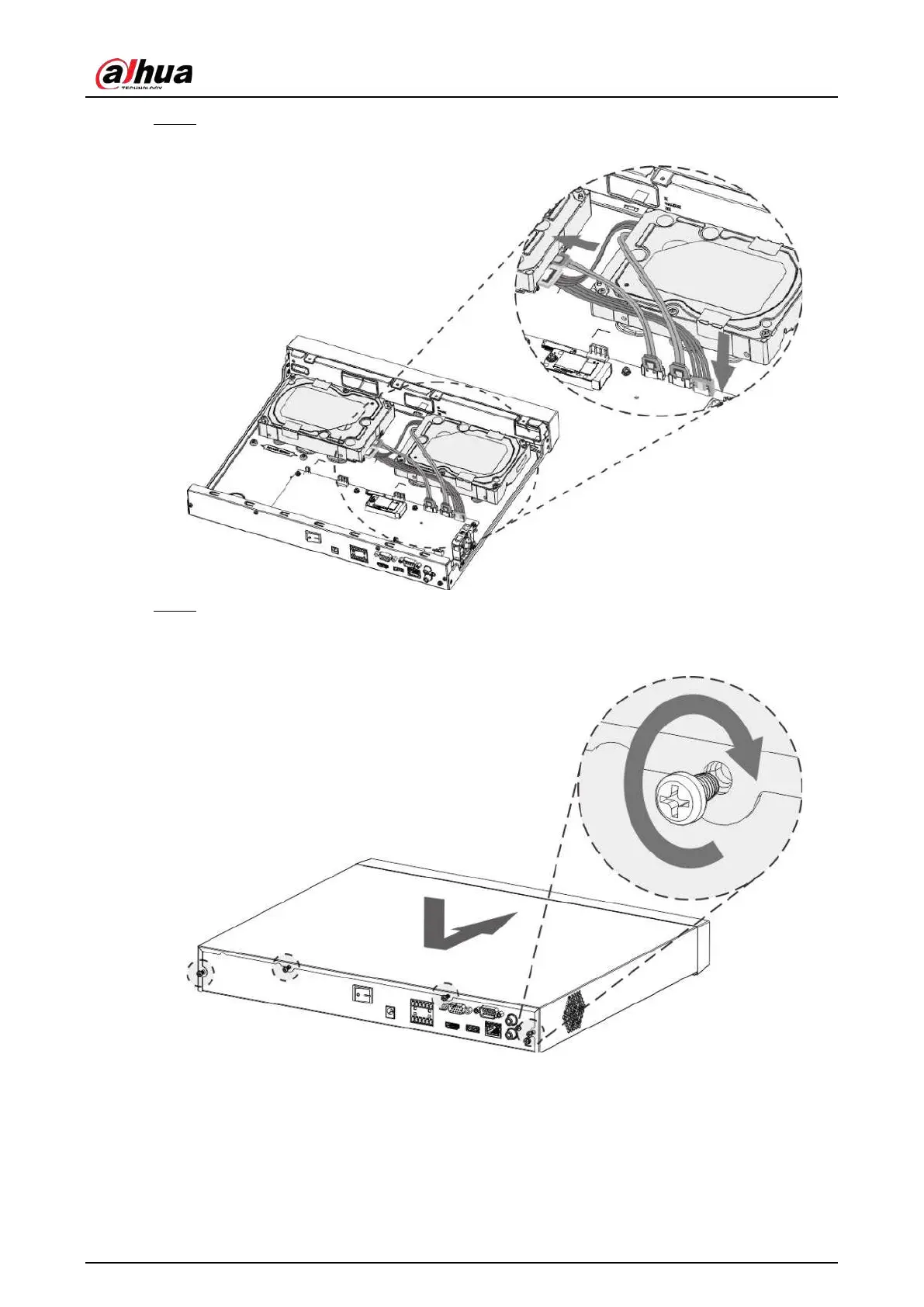

Step 5 Connect the HDD data cable and power cable to the device.
Figure 3-16 Connect cables
Step 6 Put back the cover and fasten the four screws on the rear panel to complete the
installation.
Figure 3-17 Put back cover
3.3.4 NVR54-4KS2/NVR54-16P-4KS2/NVR44-4KS2/NVR44-16P-
4KS2/NVR44-4KS2/L/NVR44-16P-4KS2/L/NVR54-24P-4KS2/NVR54-
16P-4KS2E/NVR58-I/NVR58-I/L/NVR54-I/NVR54-I/L/NVR52-I/NVR52-
