User's Manual

194

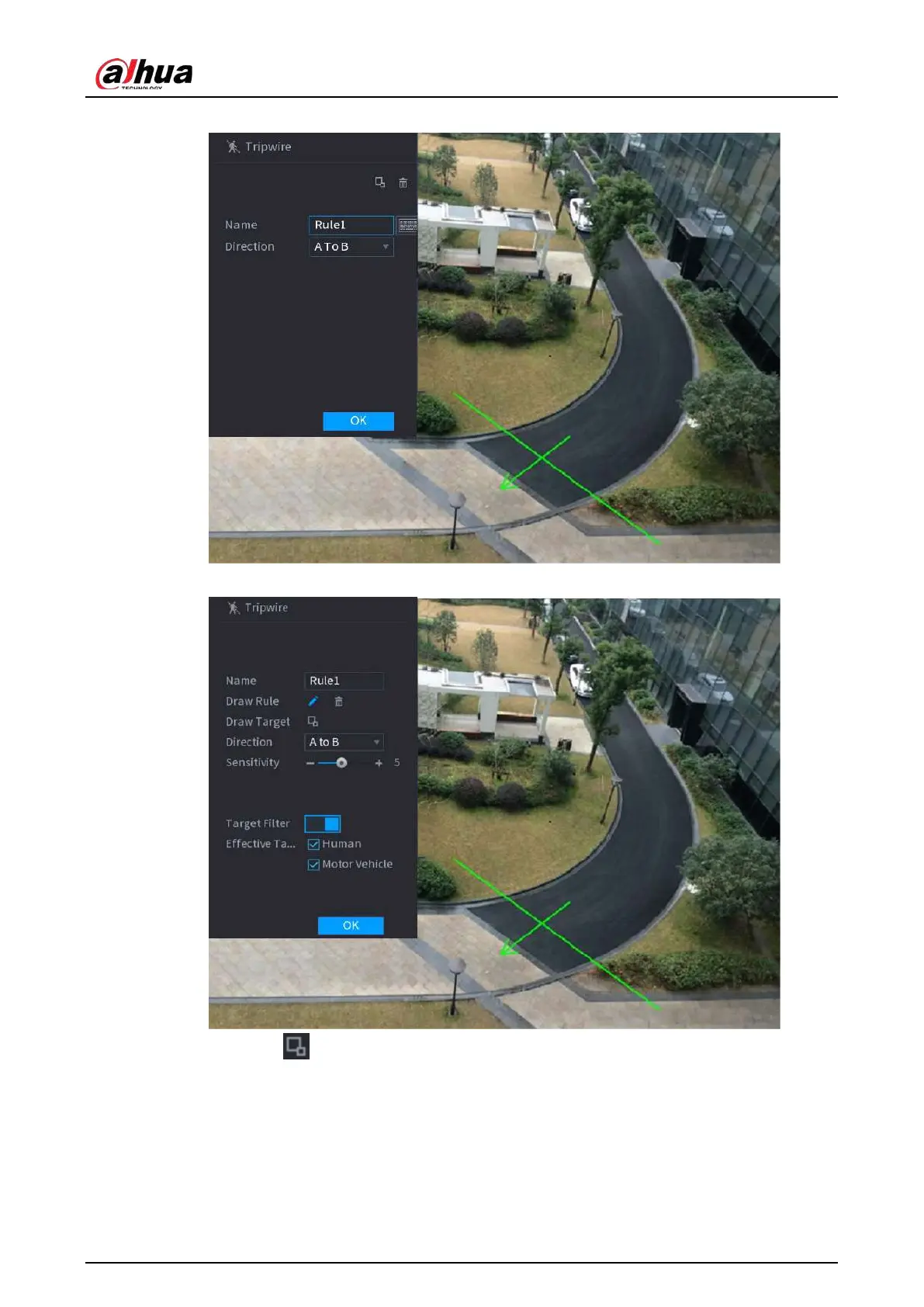

Figure 5-107 Tripwire (AI by camera)

Figure 5-108 Tripwire (AI by recorder)

2) Click to draw the minimum size or maximum size to filter the target.

The system triggers an alarm only when the size of detected target is between the

maximum size and the minimum size.

3) Configure the parameters.

Foreword2
Important Safeguards and Warnings5
