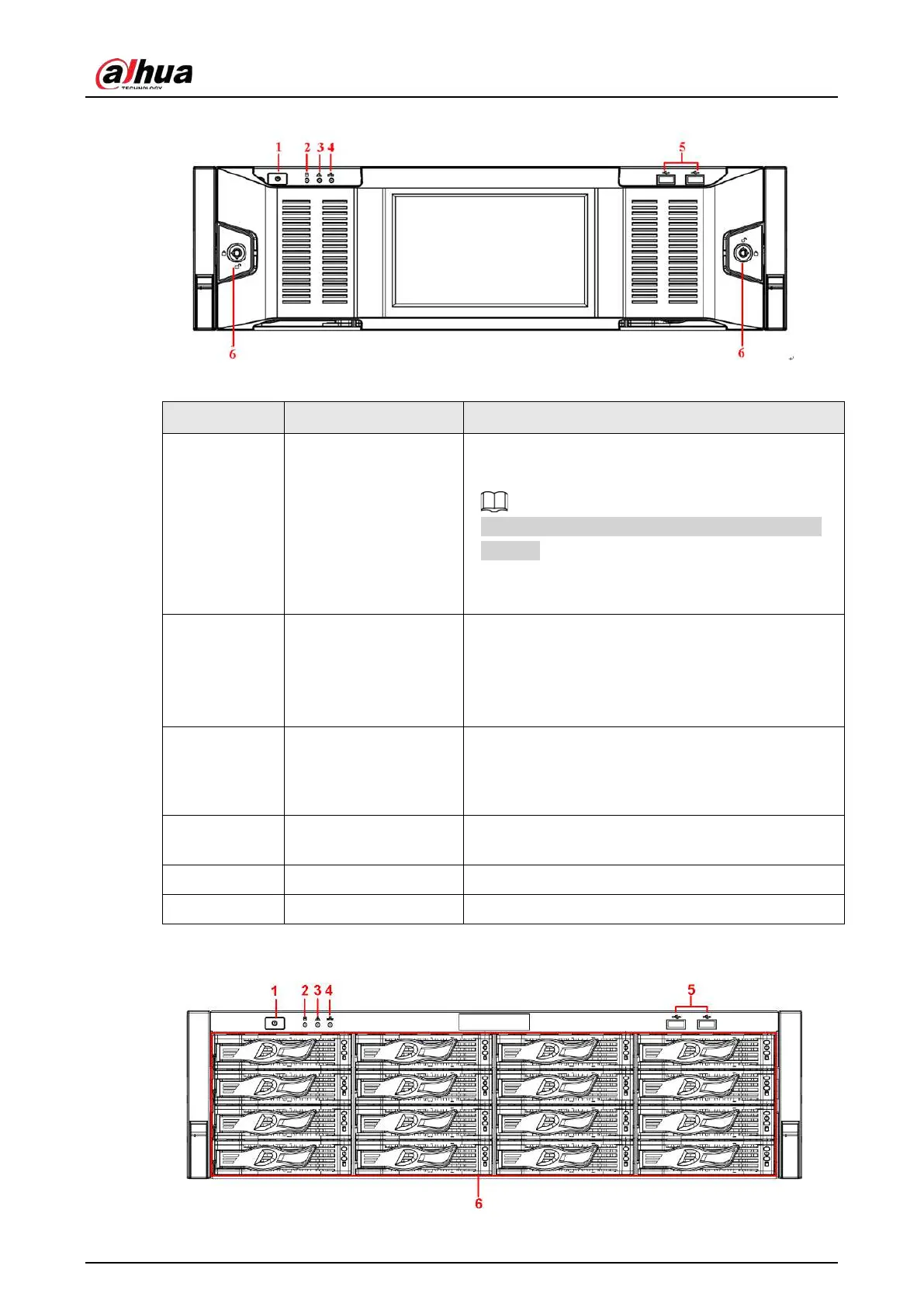

Figure 2-22 Front panel
Table 2-13 Icons
No. Name Function
1 Power button
Press it once to turn on the device.
Press it for a long time to turn off the device.
We do not recommend you turn off the Device in
this way.
Press power button for a long time or pull out the
power cable might result in device auto restart.
2
System HDD Indicator
light
The blue light becomes on after system booted up
properly.
In the system HDD, there are device important
configuration file, factory default configuration file,
and device initial boot up data.
3 Alarm indicator light
The alarm indicator light becomes on once an alarm
occurred. It becomes on via the software detection.
The indicator light becomes on when there is a local
alarm.
4 Network indicator light
The blue network indicator light is on after you
connected the device to the network.
5 USB port —
6 Front panel lock —
For general NVR616-4KS2 series, the front panel is shown as below.
Figure 2-23 Front panel
