User's Manual
80

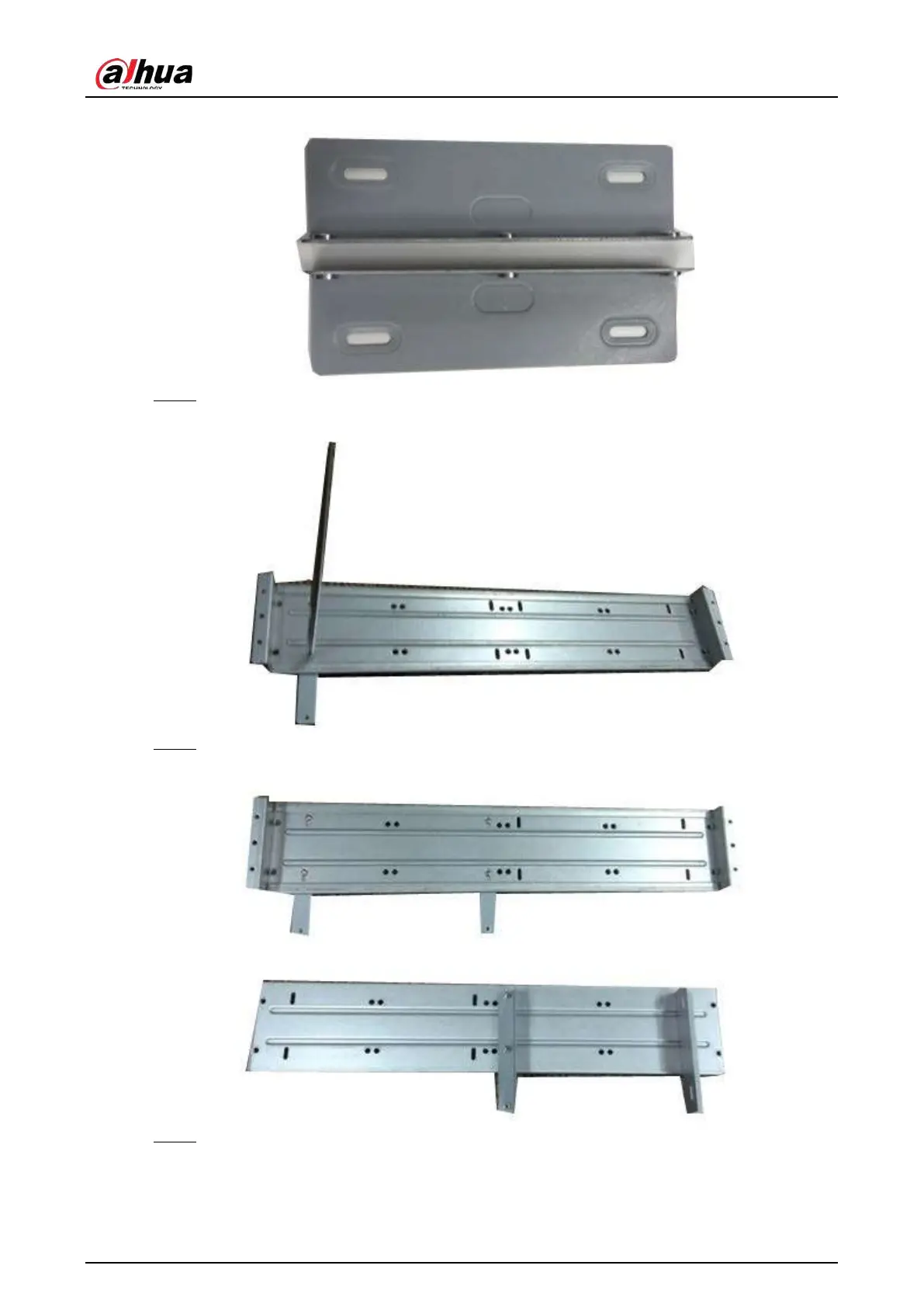

Figure 3-39 Take out CD-ROM bracket
Step 3 Fix the CD-ROM bracket at the HDD bracket.
Figure 3-40 Fix bracket
Step 4 Install a pair of the CD-ROM bracket. Please make sure that the reverse side is secure too.
Figure 3-41 Install bracket
Figure 3-42 Install bracket (reverse side)
Step 5 Install SATA burner. Line up the SATA burner to the hole positions.
