16 Spyder3 SG-34 GigE Vision Color Manual
03-032-20124-00 Teledyne DALSA
4. With ―Internet Protocol (TCP/ IP)‖ selected, click on the ―Properties‖ bu tton.
5. Select ―Use the following IP ad dress‖ and set the IP add ress to any address in this subnet other
than 192.168.5.100, which is used by the camera. In the example below, the address 192.168.5.50 is
used . Alternatively, select ―Obtain an IP ad d ress automatica lly‖ to u se a dynamic ad d ress.
6. Set su bnet to: 255.255.255.0 and click on ―OK.‖

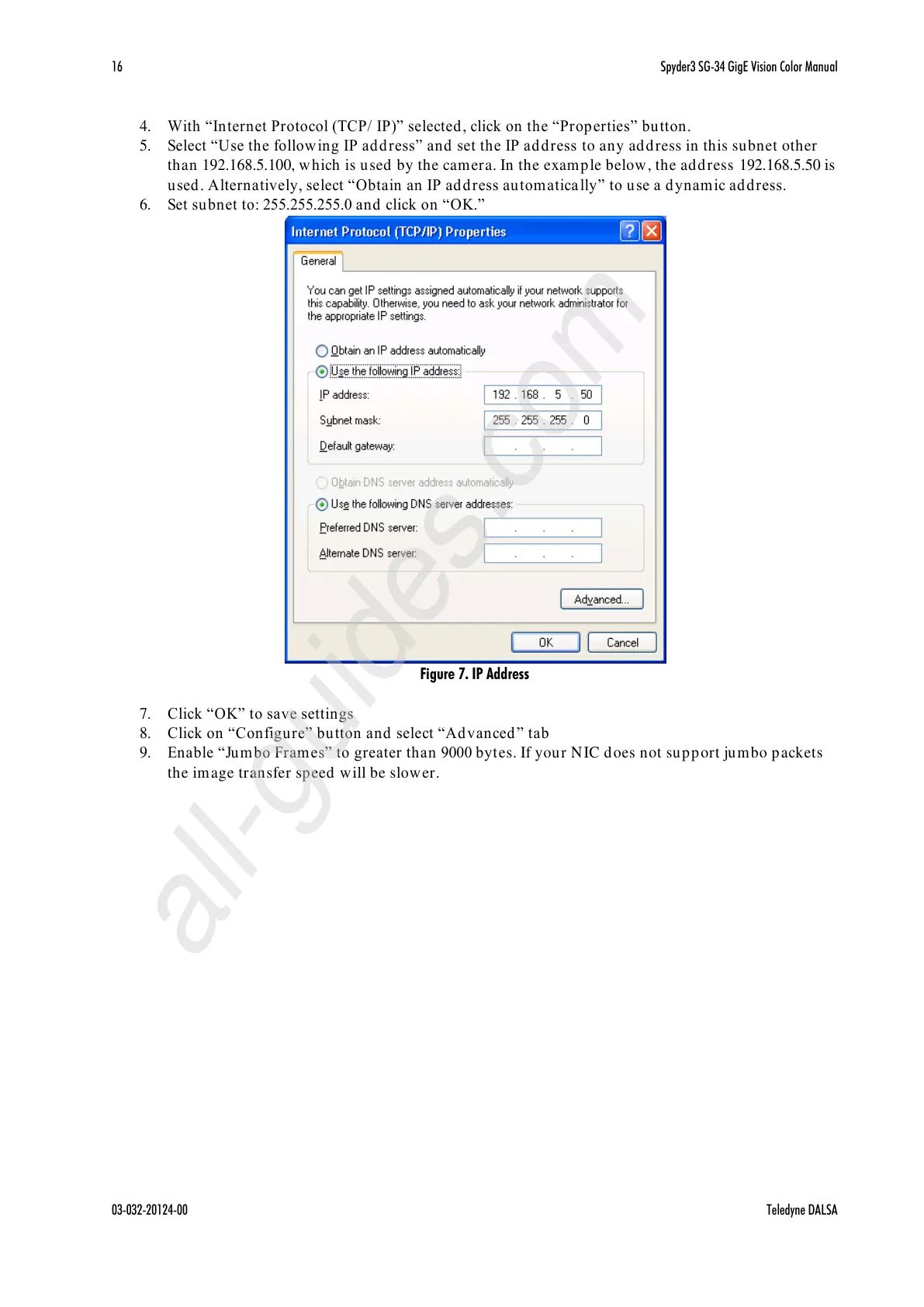

Figure 7. IP Address
7. Click ―OK‖ to save settings
8. Click on ―Configure‖ button and select ―Advanced ‖ tab
9. Enable ―Jum bo Frames‖ to greater than 9000 byt es. If your NIC does not support jumbo packets
the image transfer speed will be slower.
