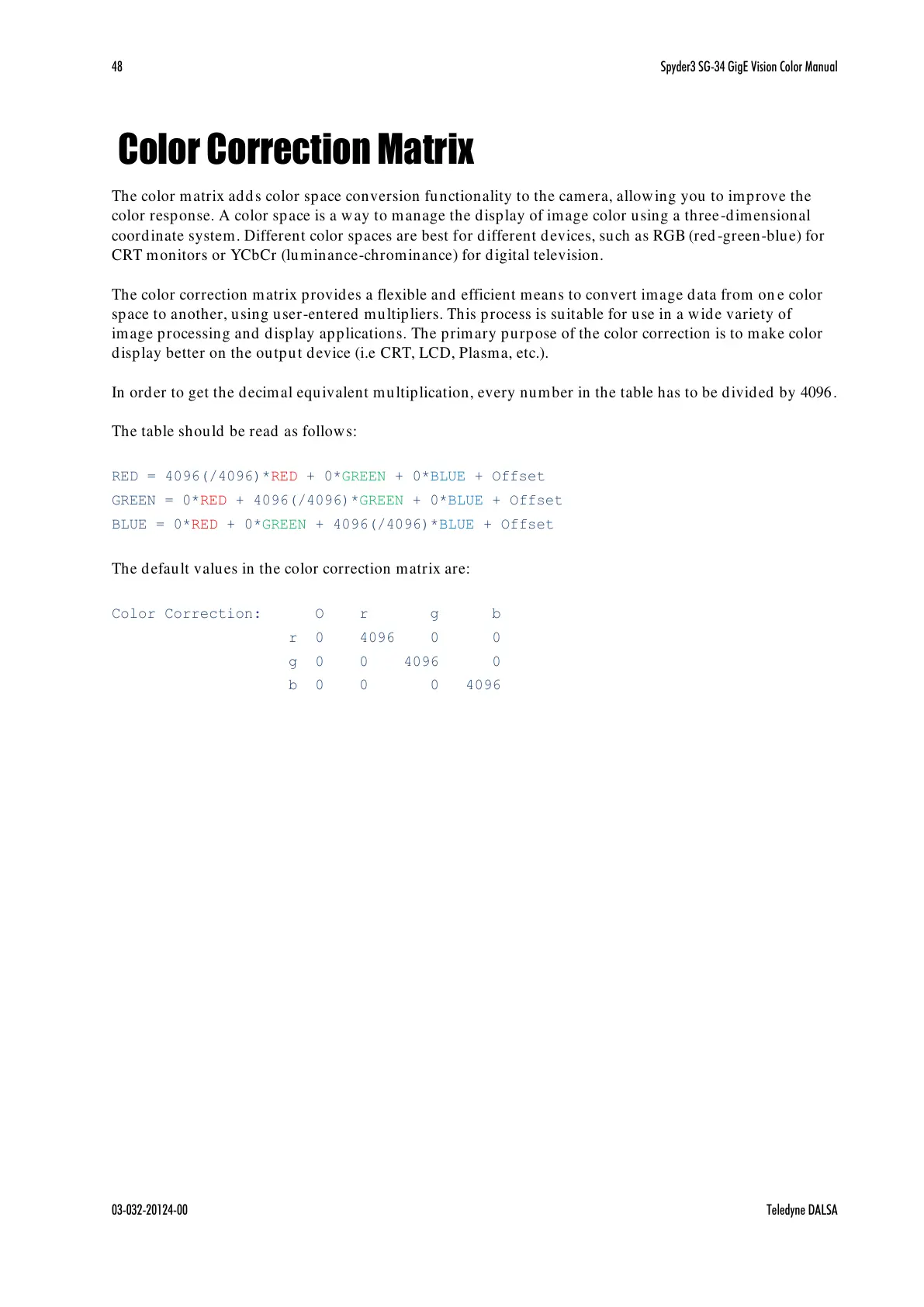

Color Correction Matrix
The color matrix adds color space conversion functionality to the camera, allowing you to improve the
color response. A color space is a way to manage the display of image color using a three-dimensional
coordinate system. Different color spaces are best for different devices, such as RGB (red-green-blue) for
CRT monitors or YCbCr (luminance-chrominance) for digital television.
The color correction matrix provides a flexible and efficient means to convert image data from on e color
space to another, using user-entered multipliers. This process is suitable for use in a wide variety of
image processing and display applications. The primary purpose of the color correction is to make color
display better on the output device (i.e CRT, LCD, Plasma, etc.).
In order to get the decimal equivalent multiplication, every number in the table has to be divided by 4096.
The table should be read as follows:
RED = 4096(/4096)*RED + 0*GREEN + 0*BLUE + Offset
GREEN = 0*RED + 4096(/4096)*GREEN + 0*BLUE + Offset
BLUE = 0*RED + 0*GREEN + 4096(/4096)*BLUE + Offset
The default values in the color correction matrix are:
Color Correction: O r g b
r 0 4096 0 0
g 0 0 4096 0
b 0 0 0 4096
