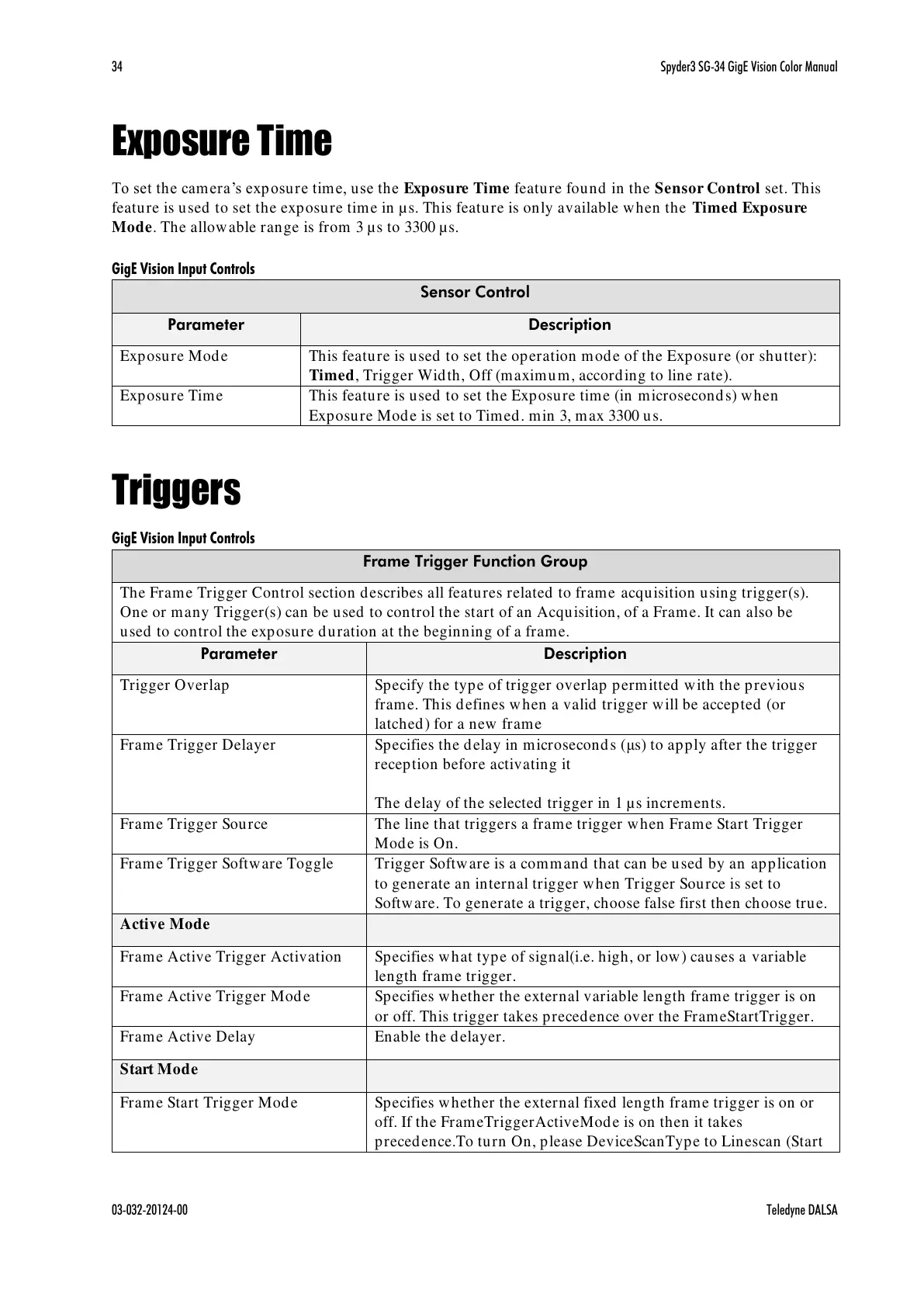

Exposure Time
To set the camera’s exp osu re time, u se the Exposure Time feature found in the Sensor Control set. This
feature is used to set the exposure time in µs. This feature is only available when the Timed Exposure
Mode. The allowable range is from 3 µs to 3300 µs.
GigE Vision Input Controls
Sensor Control
Parameter
Description
Exposure Mode
This feature is used to set the operation mode of the Exposure (or shutter):
Timed, Trigger Width, Off (maximum, according to line rate).
Exposure Time
This feature is used to set the Exposure time (in microseconds) when
Exposure Mode is set to Timed. min 3, max 3300 us.
Triggers
GigE Vision Input Controls
Frame Trigger Function Group
The Frame Trigger Control section describes all features related to frame acquisition using trigger(s).
One or many Trigger(s) can be used to control the start of an Acquisition, of a Frame. It can also be
used to control the exposure duration at the beginning of a frame.
Parameter
Description
Trigger Overlap
Specify the type of trigger overlap permitted with the previous
frame. This defines when a valid trigger will be accepted (or
latched) for a new frame
Frame Trigger Delayer
Specifies the delay in microseconds (μs) to apply after the trigger
reception before activating it
The delay of the selected trigger in 1 µs increments.
Frame Trigger Source
The line that triggers a frame trigger when Frame Start Trigger
Mode is On.
Frame Trigger Software Toggle
Trigger Software is a command that can be used by an application
to generate an internal trigger when Trigger Source is set to
Software. To generate a trigger, choose false first then choose true.
Active Mode
Frame Active Trigger Activation
Specifies what type of signal(i.e. high, or low) causes a variable
length frame trigger.
Frame Active Trigger Mode
Specifies whether the external variable length frame trigger is on
or off. This trigger takes precedence over the FrameStartTrigger.
Frame Active Delay
Enable the delayer.
Start Mode
Frame Start Trigger Mode
Specifies whether the external fixed length frame trigger is on or
off. If the FrameTriggerActiveMode is on then it takes
precedence.To turn On, please DeviceScanType to Linescan (Start
