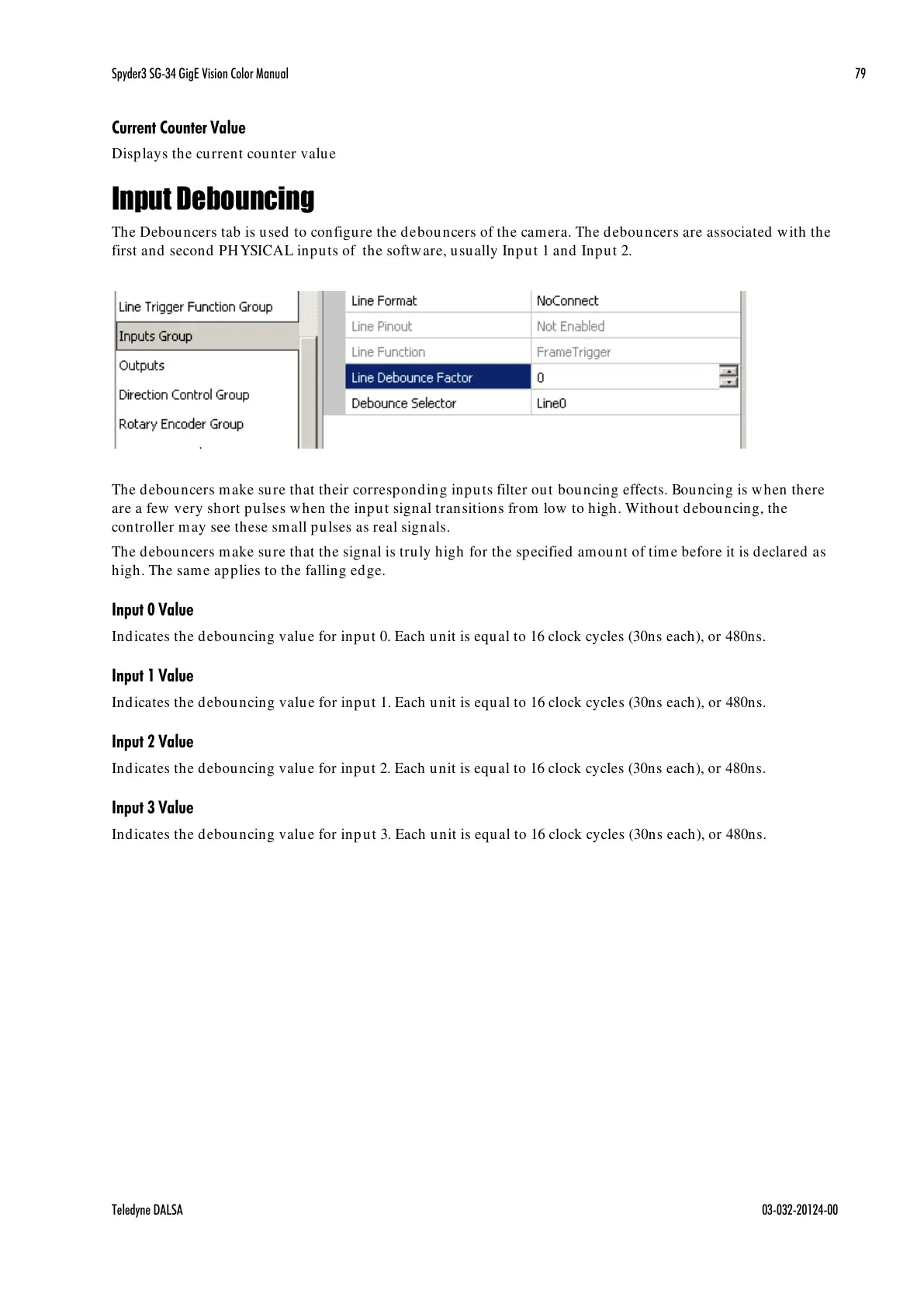

Spyder3 SG-34 GigE Vision Color Manual 79
Teledyne DALSA 03-032-20124-00
Current Counter Value
Displays the current counter value
Input Debouncing
The Debouncers tab is used to configure the debouncers of the camera. The debouncers are associated with the
first and second PHYSICAL inputs of the software, usually Input 1 and Input 2.
The debouncers make sure that their corresponding inputs filter out bouncing effects. Bouncing is when there
are a few very short pulses when the input signal transitions from low to high. Without debouncing, the
controller may see these small pulses as real signals.
The debouncers make sure that the signal is truly high for the specified amount of time before it is declared as
high. The same applies to the falling edge.
Input 0 Value
Indicates the debouncing value for input 0. Each unit is equal to 16 clock cycles (30ns each), or 480ns.
Input 1 Value
Indicates the debouncing value for input 1. Each unit is equal to 16 clock cycles (30ns each), or 480ns.
Input 2 Value
Indicates the debouncing value for input 2. Each unit is equal to 16 clock cycles (30ns each), or 480ns.
Input 3 Value
Indicates the debouncing value for input 3. Each unit is equal to 16 clock cycles (30ns each), or 480ns.
