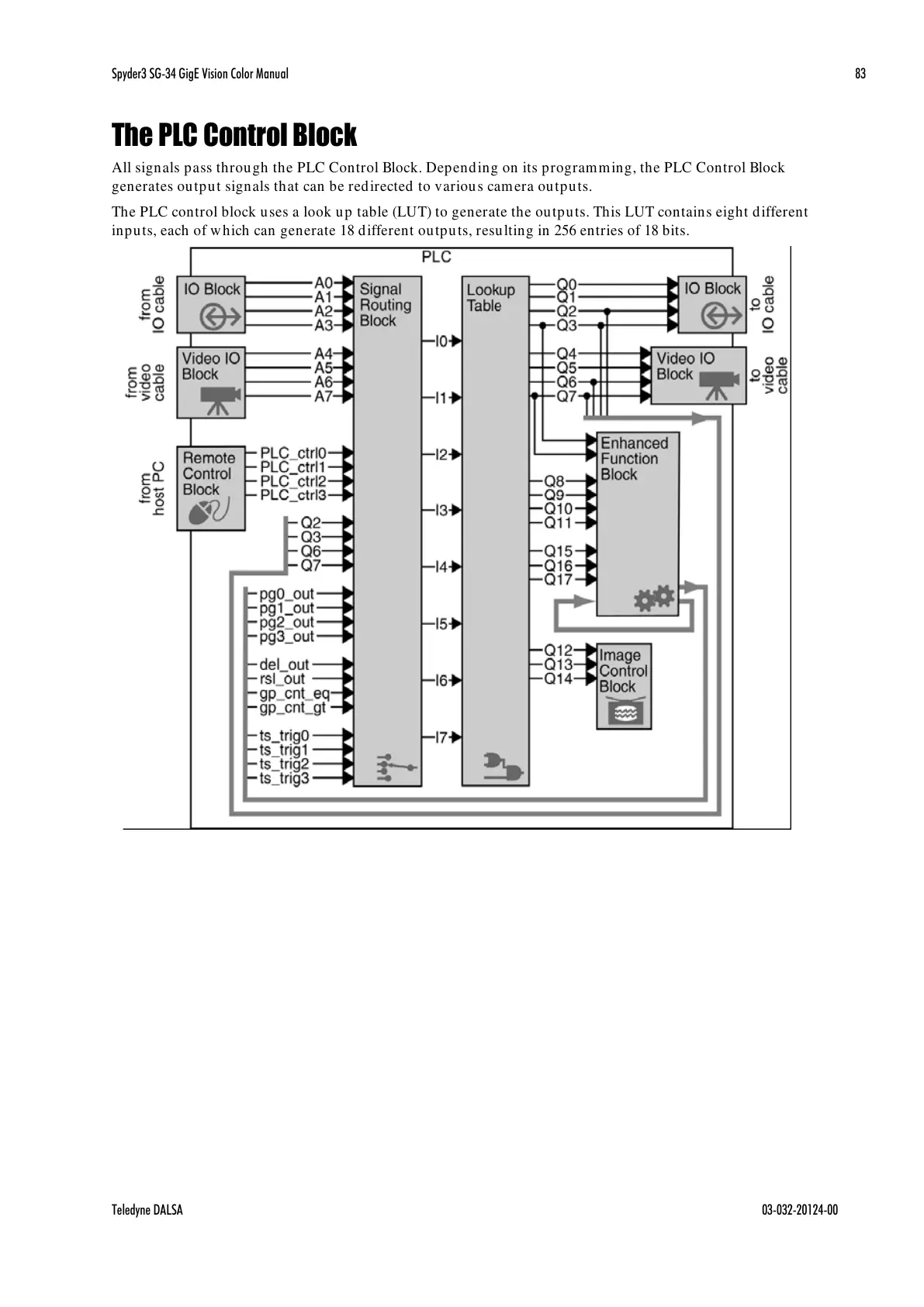

The PLC Control Block
All signals pass through the PLC Control Block. Depending on its programming, the PLC Control Block
generates output signals that can be redirected to various camera outputs.
The PLC control block uses a look up table (LUT) to generate the outputs. This LUT contains eight different
inputs, each of which can generate 18 different outputs, resulting in 256 entries of 18 bits.
