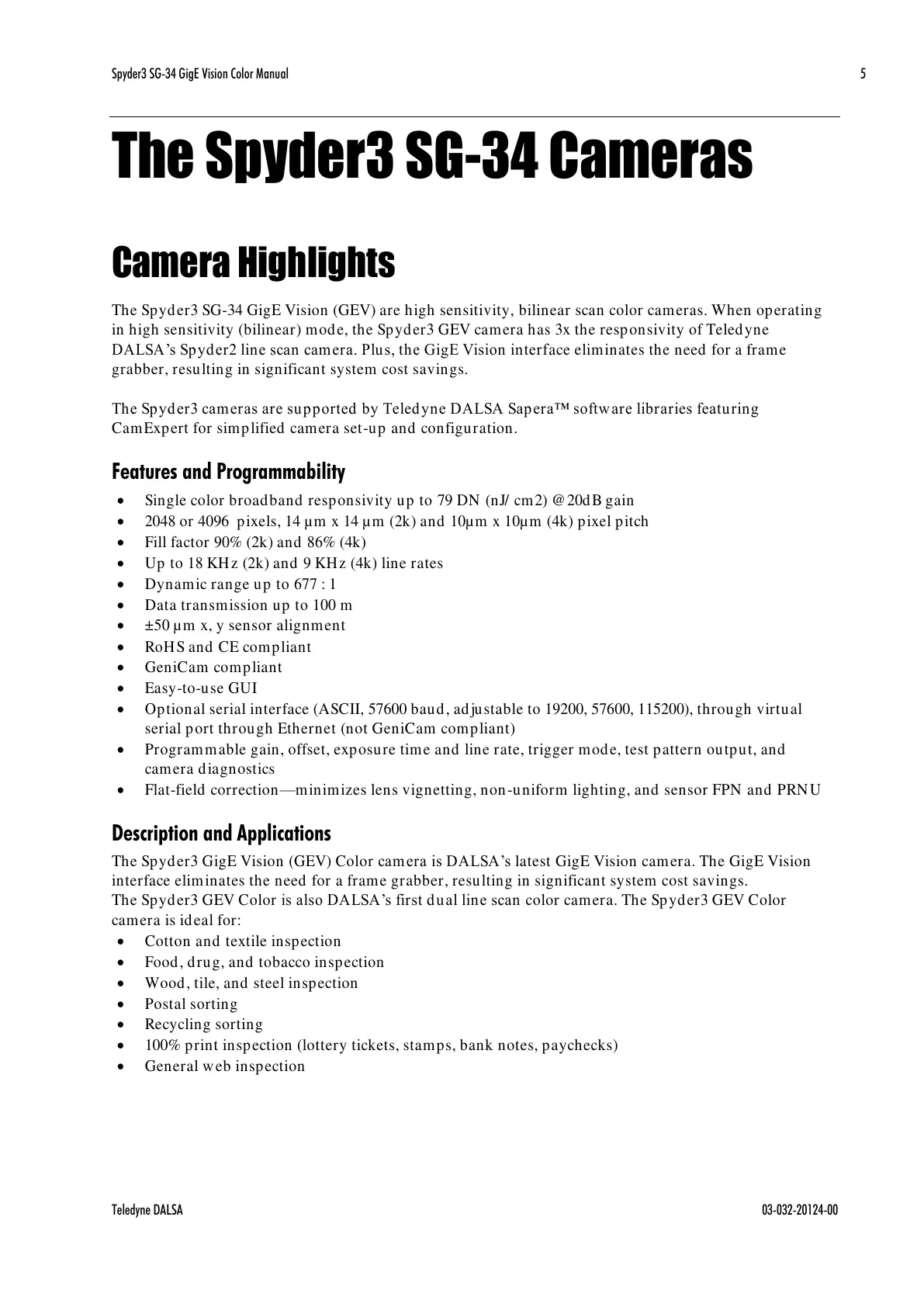

Spyder3 SG-34 GigE Vision Color Manual 5
Teledyne DALSA 03-032-20124-00
The Spyder3 SG-34 Cameras
Camera Highlights
The Spyder3 SG-34 GigE Vision (GEV) are high sensitivity, bilinear scan color cameras. When operating
in high sensitivity (bilinear) mode, the Spyder3 GEV camera has 3x the responsivity of Teledyne
DALSA’s Spyd er2 line scan cam era. Plus, the GigE Vision interface eliminates the need for a frame
grabber, resulting in significant system cost savings.
The Spyd er3 cam eras are supported by Teled yne DALSA Sapera™ softw are libraries featu ring
CamExpert for simplified camera set-up and configuration.
Features and Programmability
Single color broadband responsivity up to 79 DN (nJ/ cm2) @ 20dB gain
2048 or 4096 pixels, 14 µm x 14 µm (2k) and 10µm x 10µm (4k) pixel pitch
Fill factor 90% (2k) and 86% (4k)
Up to 18 KHz (2k) and 9 KHz (4k) line rates
Dynamic range up to 677 : 1
Data transmission up to 100 m
±50 µm x, y sensor alignment
RoHS and CE compliant
GeniCam compliant
Easy-to-use GUI
Optional serial interface (ASCII, 57600 baud, adjustable to 19200, 57600, 115200), through virtual
serial port through Ethernet (not GeniCam compliant)
Programmable gain, offset, exposure time and line rate, trigger mode, test pattern output, and
camera diagnostics
Flat-field correction—minimizes lens vignetting, non-uniform lighting, and sensor FPN and PRNU
Description and Applications
The Spyder3 GigE Vision (GEV) Color camera is DALSA’s latest GigE Vision camera. The GigE Vision
interface eliminates the need for a frame grabber, resulting in significant system cost savings.
The Spyder3 GEV Color is also DALSA’s first du al line scan color camera. The Spyder3 GEV Color
camera is ideal for:
Cotton and textile inspection
Food, drug, and tobacco inspection
Wood, tile, and steel inspection
Postal sorting
Recycling sorting
100% print inspection (lottery tickets, stamps, bank notes, paychecks)
General web inspection
