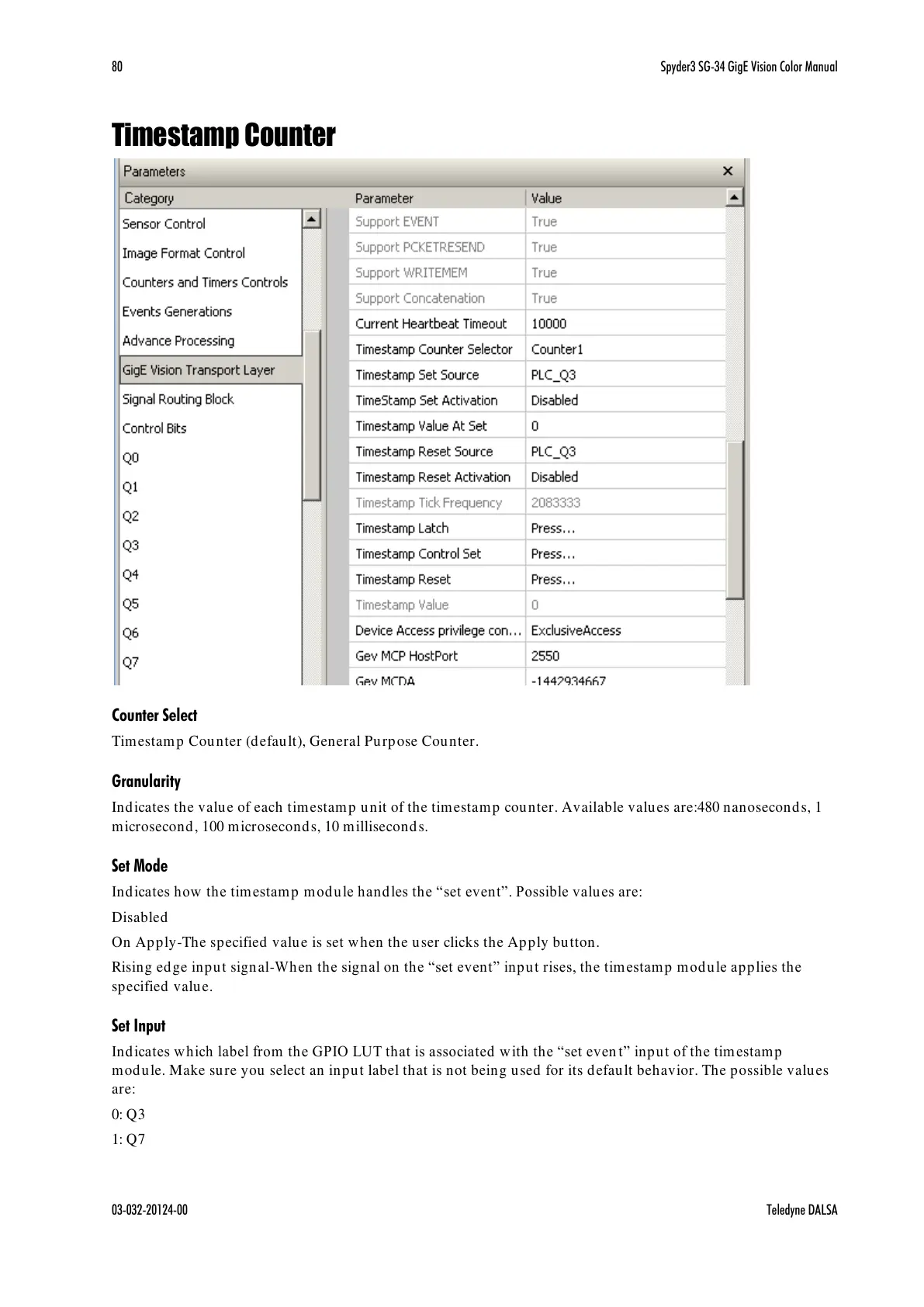

Timestamp Counter
Counter Select
Timestamp Counter (default), General Purpose Counter.
Granularity
Indicates the value of each timestamp unit of the timestamp counter. Available values are:480 nanoseconds, 1
microsecond, 100 microseconds, 10 milliseconds.
Set Mode
Indicates how the tim estam p m od u le handles the ―set event‖. Possible values are:
Disabled
On Apply-The specified value is set when the user clicks the Apply button.
Rising edge input signal-Wh en the signal on the ―set event‖ input rises, the timestam p m od u le applies the
specified value.
Set Input
Indicates w hich label from the GPIO LUT that is associated w ith the ―set even t‖ inpu t of the tim estam p
module. Make sure you select an input label that is not being used for its default behavior. The possible values
are:
0: Q3
1: Q7
