Dalsa Spyder3 SG-34 Series User Manual

Spyder3 SG-34 GigE Vision Color Manual 7
Teledyne DALSA 03-032-20124-00
1.2 Performance Specifications

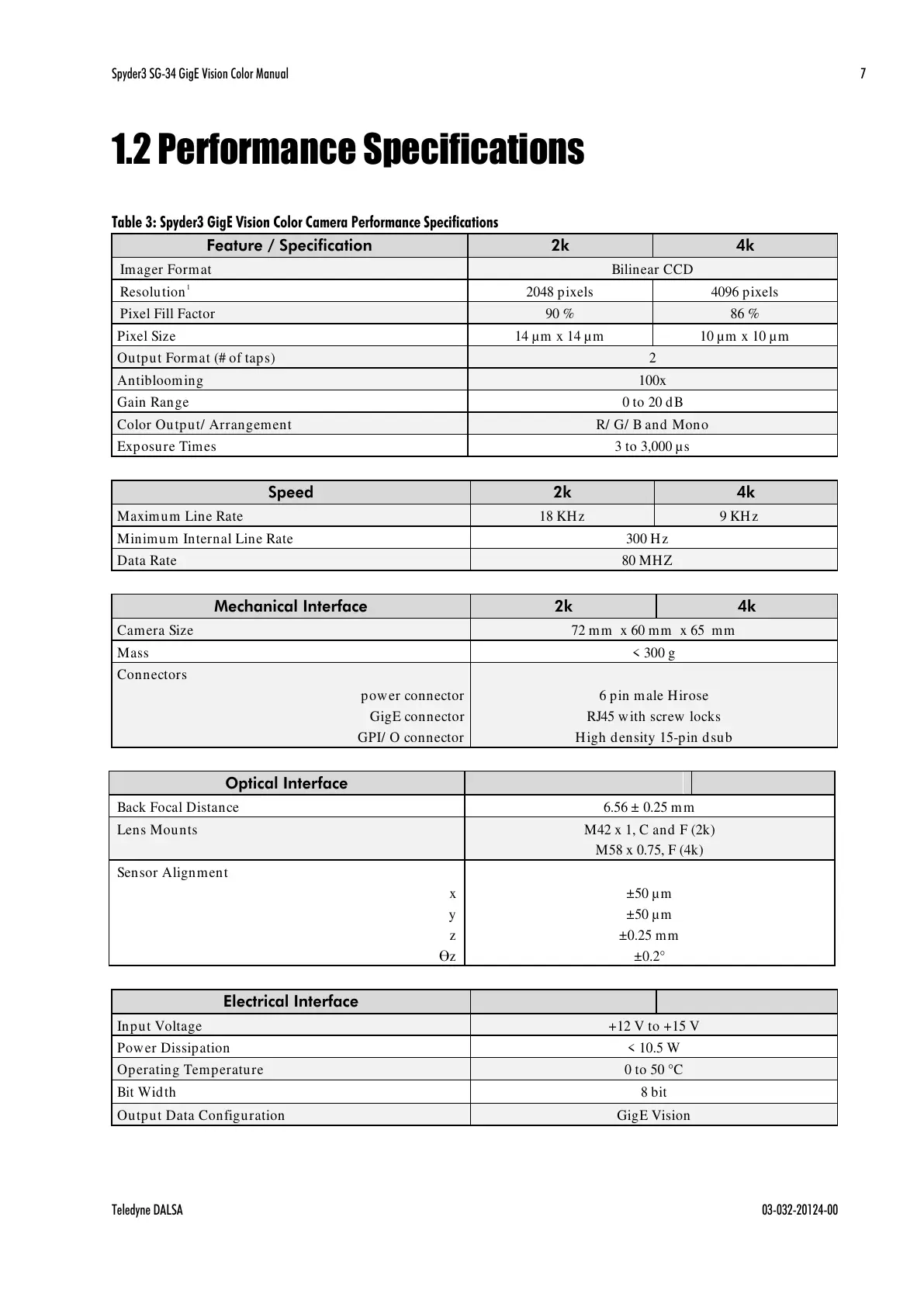

Table 3: Spyder3 GigE Vision Color Camera Performance Specifications
Feature / Specification
2k
4k
Imager Format
Bilinear CCD
Resolution
1
2048 pixels
4096 pixels
Pixel Fill Factor
90 %
86 %
Pixel Size
14 µm x 14 µm
10 µm x 10 µm
Output Format (# of taps)
2
Antiblooming
100x
Gain Range
0 to 20 dB
Color Output/ Arrangement
R/ G/ B and Mono
Exposure Times
3 to 3,000 µs
Speed
2k
4k
Maximum Line Rate
18 KHz
9 KHz
Minimum Internal Line Rate
300 Hz
Data Rate
80 MHZ
Mechanical Interface
2k
4k
Camera Size
72 mm x 60 mm x 65 mm
Mass
< 300 g
Connectors
power connector
GigE connector
GPI/ O connector
6 pin male Hirose
RJ45 with screw locks
High density 15-pin dsub
Optical Interface
Back Focal Distance
6.56 ± 0.25 mm
Lens Mounts
M42 x 1, C and F (2k)
M58 x 0.75, F (4k)
Sensor Alignment
x
y
z
z
±50 µm
±50 µm
±0.25 mm
±0.2°
Electrical Interface
Input Voltage
+12 V to +15 V
Power Dissipation
< 10.5 W
Operating Temperature
0 to 50 °C
Bit Width
8 bit
Output Data Configuration
GigE Vision
