Notes
1. The interpolation procedure does not work on the first and last pixels; as a result, the number of effective full
color (RGB) pixels for the 2k and 4k cameras is reduced by 2 to 2046 or 4094 respectively.

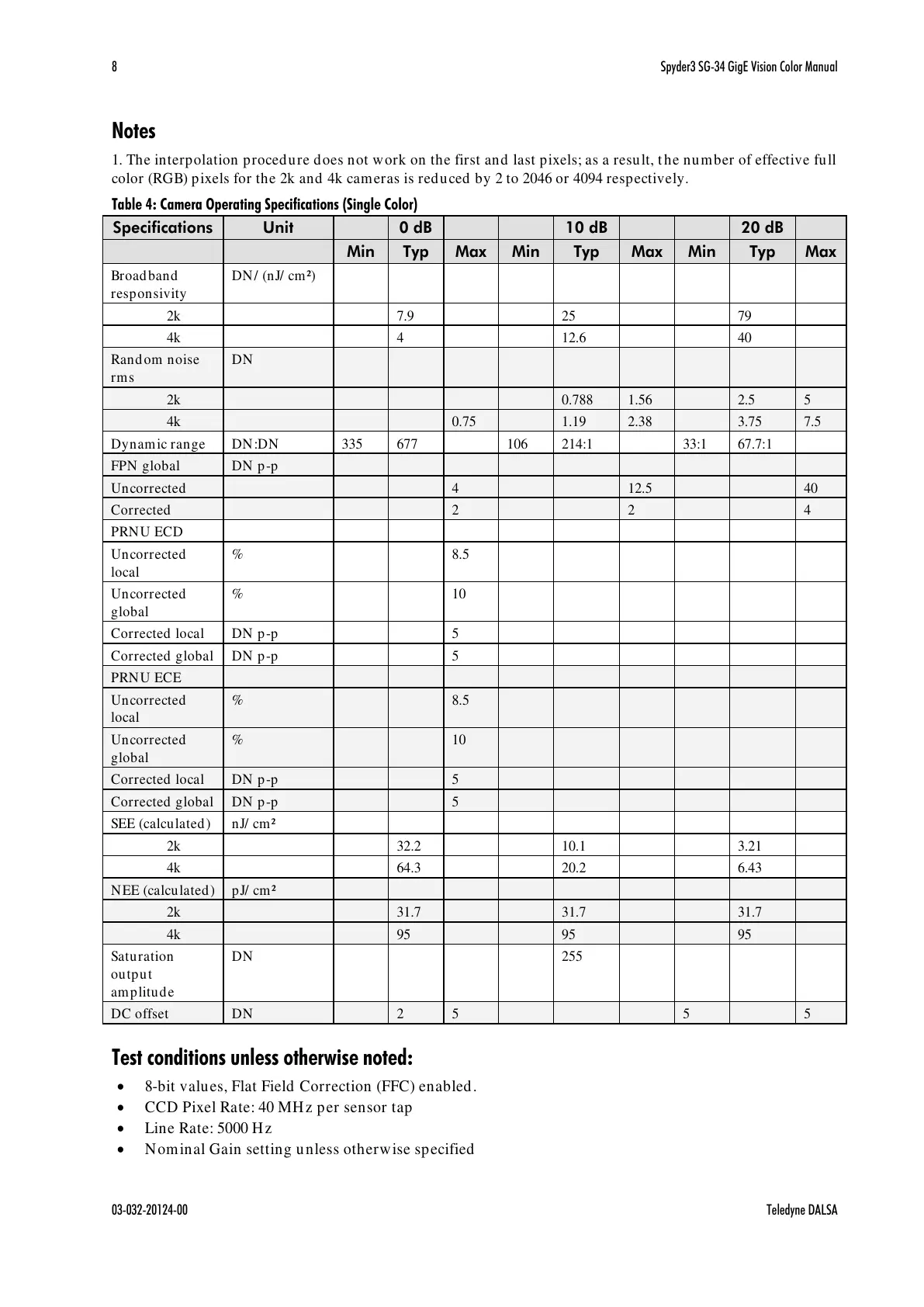

Table 4: Camera Operating Specifications (Single Color)
Specifications
Unit
0 dB
10 dB
20 dB
Min
Typ
Max
Min
Typ
Max
Min
Typ
Max
Broadband
responsivity
DN/ (nJ/ cm²)
2k
7.9
25
79
4k
4
12.6
40
Random noise
rms
DN
2k
0.788
1.56
2.5
5
4k
0.75
1.19
2.38
3.75
7.5
Dynamic range
DN:DN
335
677
106
214:1
33:1
67.7:1
FPN global
DN p-p
Uncorrected
4
12.5
40
Corrected
2
2
4
PRNU ECD
Uncorrected
local
%
8.5
Uncorrected
global
%
10
Corrected local
DN p-p
5
Corrected global
DN p-p
5
PRNU ECE
Uncorrected
local
%
8.5
Uncorrected
global
%
10
Corrected local
DN p-p
5
Corrected global
DN p-p
5
SEE (calculated)
nJ/ cm²
2k
32.2
10.1
3.21
4k
64.3
20.2
6.43
NEE (calculated)
pJ/ cm²
2k
31.7
31.7
31.7
4k
95
95
95
Saturation
output
amplitude
DN
255
DC offset
DN
2
5
5
5
Test conditions unless otherwise noted:
 8-bit values, Flat Field Correction (FFC) enabled.
 CCD Pixel Rate: 40 MHz per sensor tap
 Line Rate: 5000 Hz
 Nominal Gain setting unless otherwise specified
