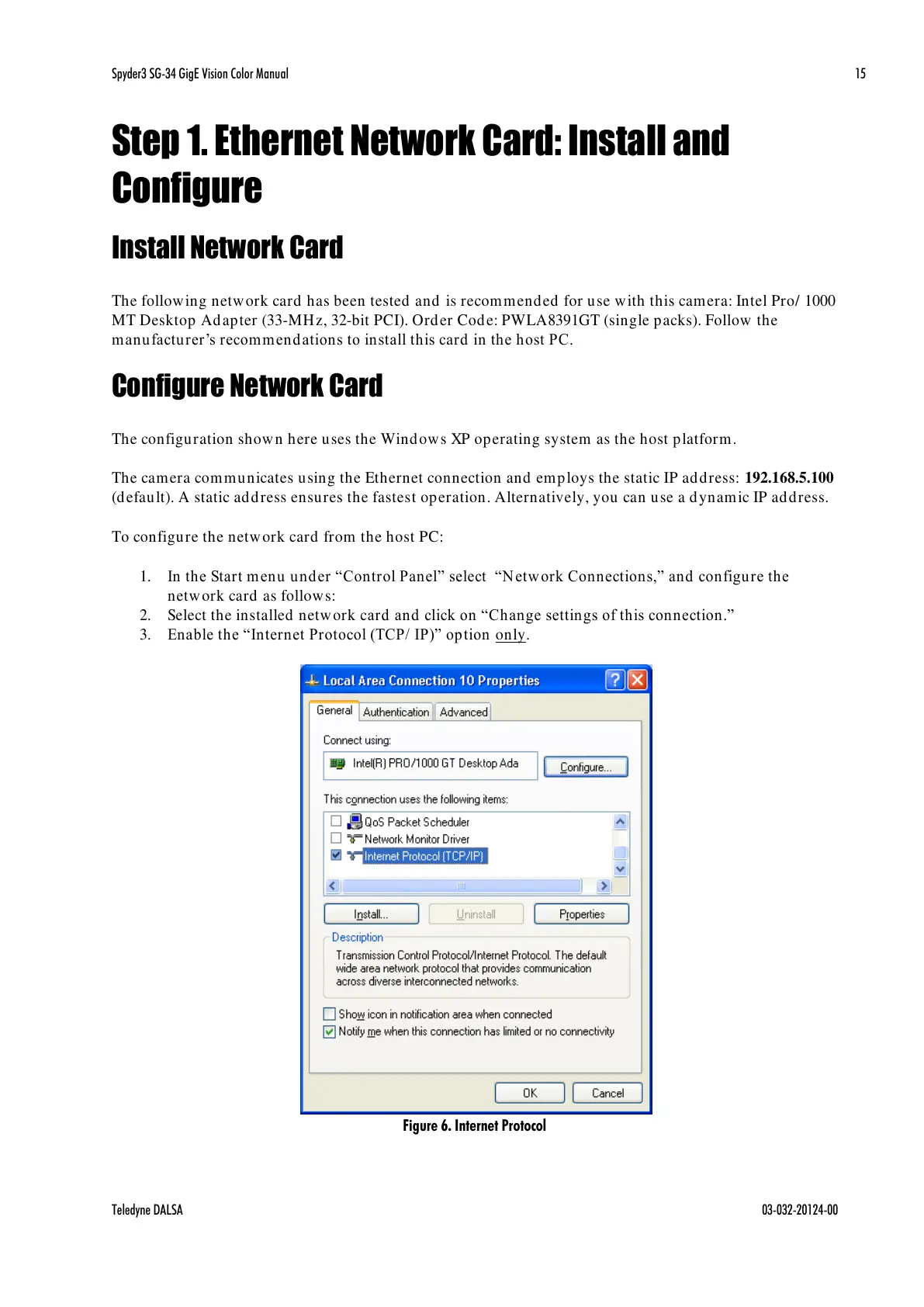

Spyder3 SG-34 GigE Vision Color Manual 15

Teledyne DALSA 03-032-20124-00

Step 1. Ethernet Network Card: Install and

Configure

Install Network Card

The following network card has been tested and is recommended for use with this camera: Intel Pro/ 1000

MT Desktop Adapter (33-MHz, 32-bit PCI). Order Code: PWLA8391GT (single packs). Follow the

manufacturer’s recommendations to install this card in the host PC.

Configure Network Card

The configuration shown here uses the Windows XP operating system as the host platform.

The camera communicates using the Ethernet connection and employs the static IP address: 192.168.5.100

(default). A static address ensures the fastest operation. Alternatively, you can use a dynamic IP address.

To configure the network card from the host PC:

1. In the Start m enu und er ―Control Panel‖ select ―Netw ork Connections,‖ and configure the

network card as follows:

2. Select the installed network card and click on ―Change settings of this connection.‖

3. Enable the ―Internet Protocol (TCP/ IP)‖ option only.

Figure 6. Internet Protocol
