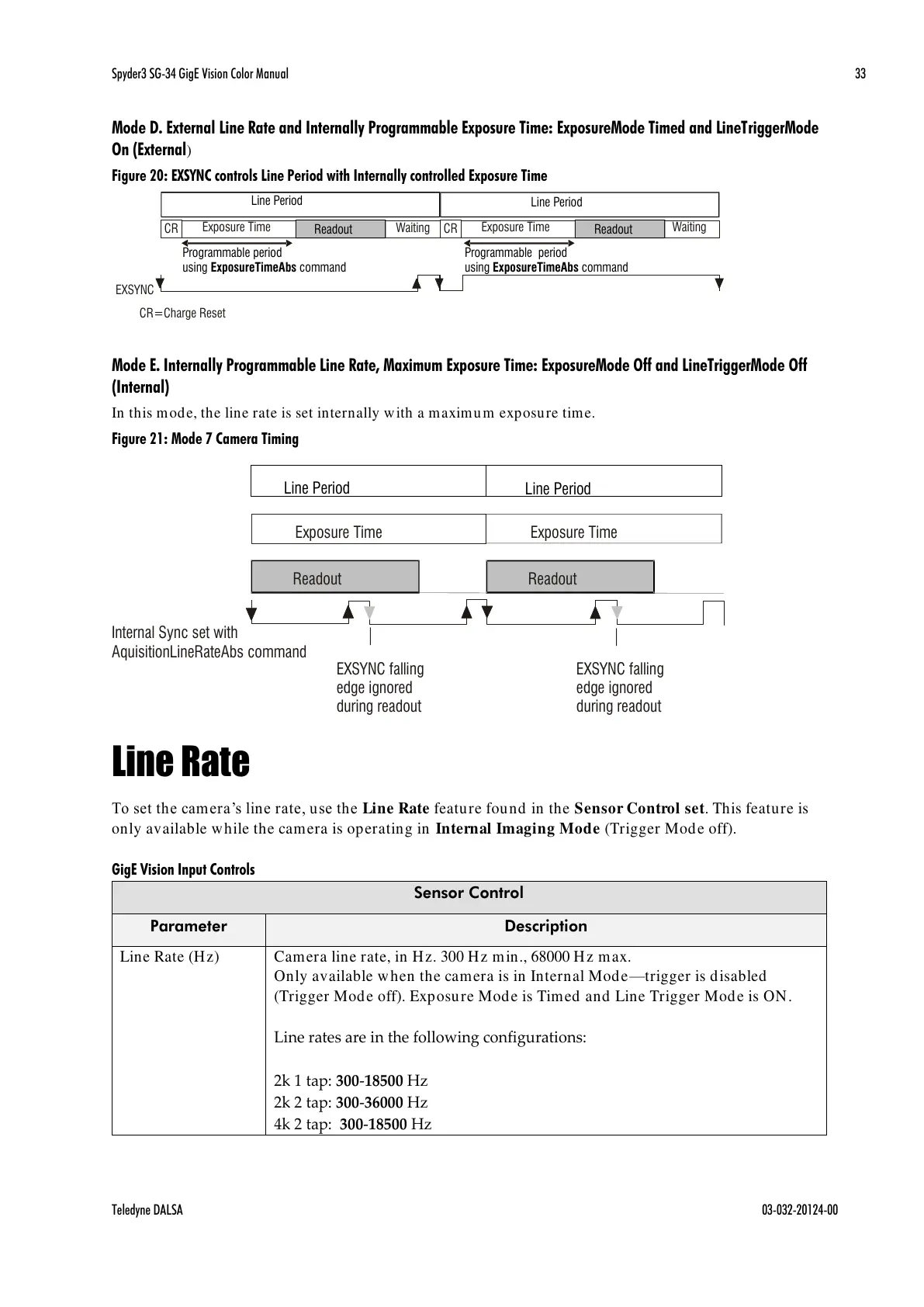

Spyder3 SG-34 GigE Vision Color Manual 33
Teledyne DALSA 03-032-20124-00
Mode D. External Line Rate and Internally Programmable Exposure Time: ExposureMode Timed and LineTriggerMode
On (External)
Figure 20: EXSYNC controls Line Period with Internally controlled Exposure Time
Mode E. Internally Programmable Line Rate, Maximum Exposure Time: ExposureMode Off and LineTriggerMode Off
(Internal)
In this mode, the line rate is set internally with a maximum exposure time.
Figure 21: Mode 7 Camera Timing
Line Rate
To set the camera’s line rate, use the Line Rate feature found in the Sensor Control set. This feature is
only available while the camera is operating in Internal Imaging Mode (Trigger Mode off).
GigE Vision Input Controls
Sensor Control
Parameter
Description
Line Rate (Hz)
Camera line rate, in Hz. 300 Hz min., 68000 Hz max.
Only available when the camera is in Internal Mode—trigger is disabled
(Trigger Mode off). Exposure Mode is Timed and Line Trigger Mode is ON.
Line rates are in the following configurations:
2k 1 tap: 300-18500 Hz
2k 2 tap: 300-36000 Hz
4k 2 tap: 300-18500 Hz
Readout
EXSYNC
Line Period
CR=Charge Reset
Readout
Line Period
Programmable period
using commandExposureTimeAbs
Programmable period
using commandExposureTimeAbs
CR CR
Exposure Time Exposure Time
Waiting
Waiting
Exposure Time
Readout
Internal Sync set with
AquisitionLineRateAbs command
Line Period
Exposure Time
Readout
Line Period
EXSYNC falling
edge ignored
during readout
EXSYNC falling
edge ignored
during readout
