Step 4. Camera Test Patterns

Review a Test Pattern Image

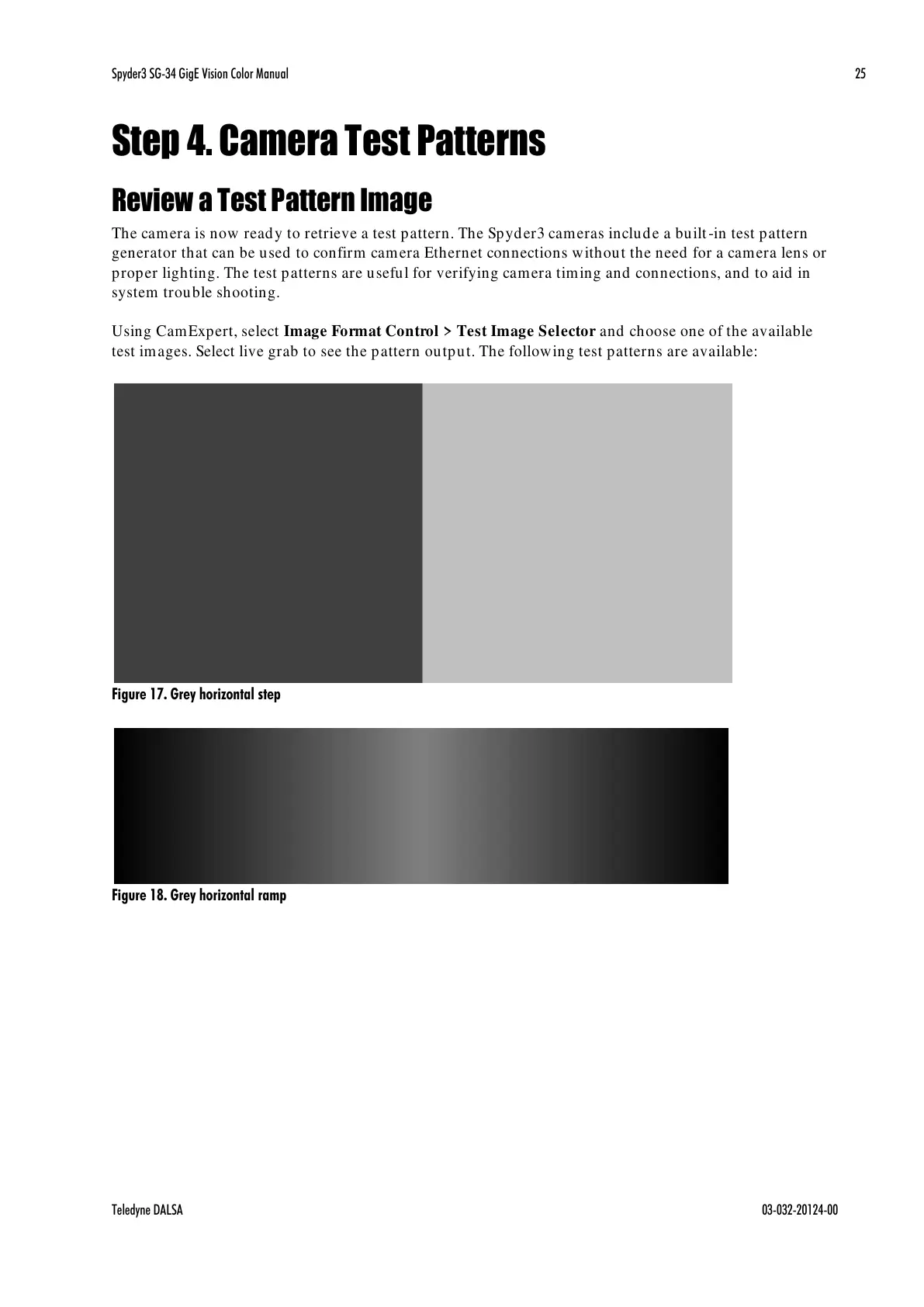

The camera is now ready to retrieve a test pattern. The Spyder3 cameras include a built-in test pattern

generator that can be used to confirm camera Ethernet connections without the need for a camera lens or

proper lighting. The test patterns are useful for verifying camera timing and connections, and to aid in

system trouble shooting.

Using CamExpert, select Image Format Control > Test Image Selector and choose one of the available

test images. Select live grab to see the pattern output. The following test patterns are available:

Figure 17. Grey horizontal step

Figure 18. Grey horizontal ramp
