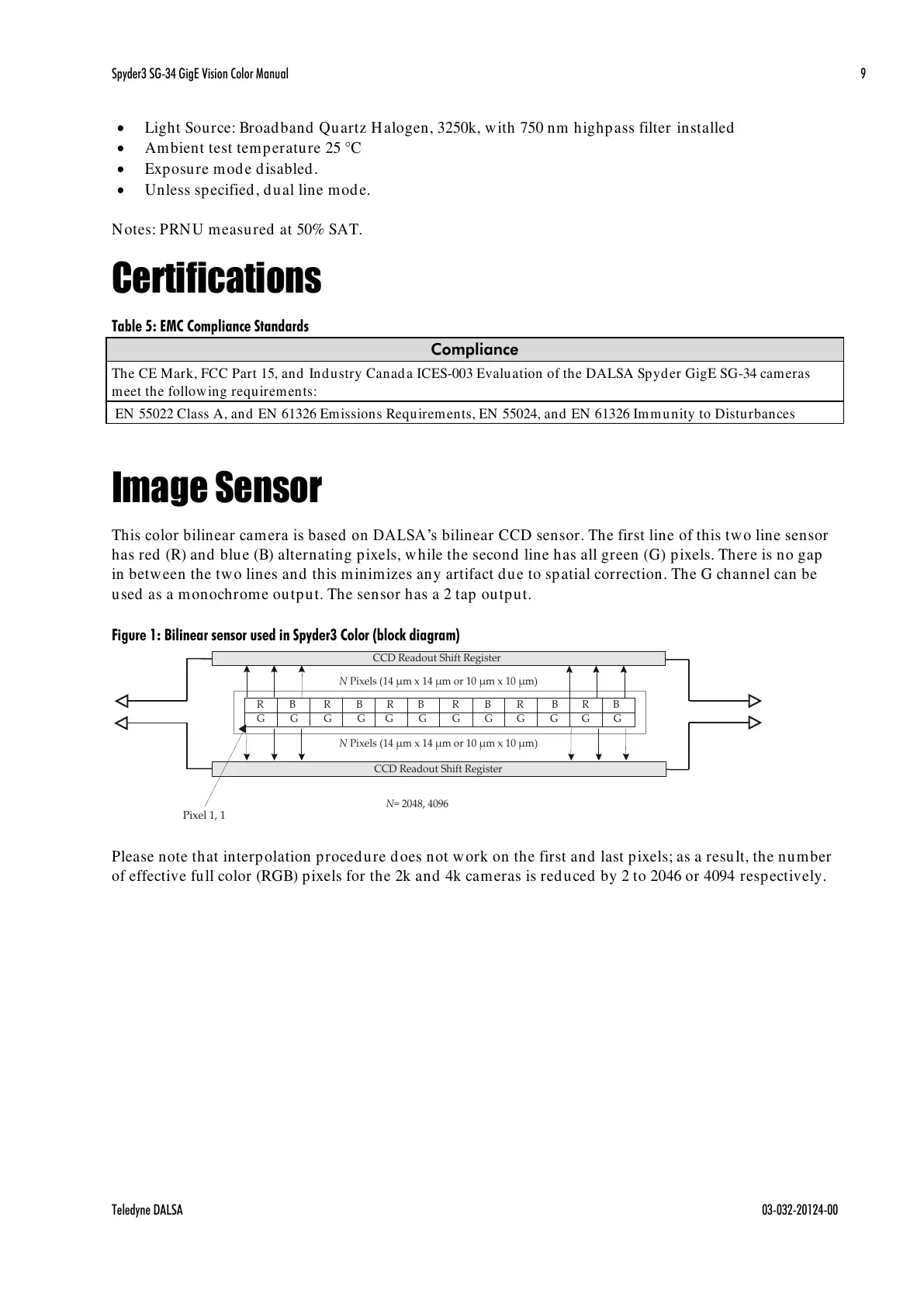

Spyder3 SG-34 GigE Vision Color Manual 9
Teledyne DALSA 03-032-20124-00
Light Source: Broadband Quartz Halogen, 3250k, with 750 nm highpass filter installed
Ambient test temperature 25 °C
Exposure mode disabled.
Unless specified, dual line mode.
Notes: PRNU measured at 50% SAT.
Certifications
Table 5: EMC Compliance Standards
The CE Mark, FCC Part 15, and Industry Canada ICES-003 Evaluation of the DALSA Spyder GigE SG-34 cameras
meet the following requirements:
EN 55022 Class A, and EN 61326 Emissions Requirements, EN 55024, and EN 61326 Immunity to Disturbances
Image Sensor
This color bilinear cam era is based on DALSA’s bilinear CCD sensor. The first line of this two line sensor
has red (R) and blue (B) alternating pixels, while the second line has all green (G) pixels. There is no gap
in between the two lines and this minimizes any artifact due to spatial correction. The G channel can be
used as a monochrome output. The sensor has a 2 tap output.
Figure 1: Bilinear sensor used in Spyder3 Color (block diagram)
Please note that interpolation procedure does not work on the first and last pixels; as a result, the number
of effective full color (RGB) pixels for the 2k and 4k cameras is reduced by 2 to 2046 or 4094 respectively.
CCD Readout Shift Register
CCD Readout Shift Register
N Pixels (14 µm x 14 µm or 10 µm x 10 µm)
N Pixels (14 µm x 14 µm or 10 µm x 10 µm)
N= 2048, 4096
Pixel 1, 1
R R
R
R R RB B B B B B
G G G G G G G
G
G G G G
